Cleaning the print head – ZOLL R Series Monitor Defibrillator Rev K Operators Guide User Manual
Page 130
C
HAPTER
12
M
AINTENANCE
12–10
www.zoll.com
9650-0912-01 Rev. K

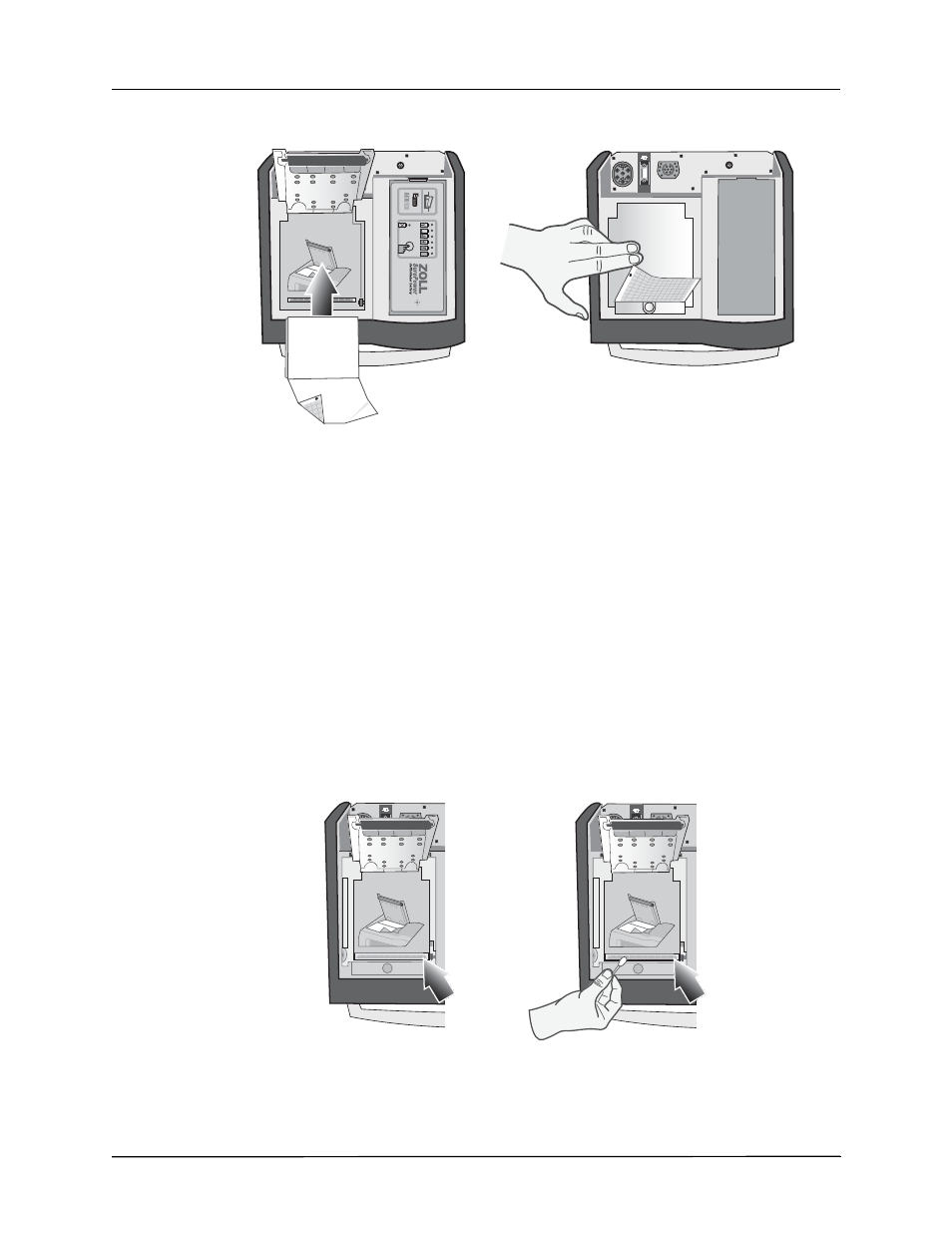

Figure 12-6.
Inserting the Paper and Closing Printer Door
After the paper is loaded, press the RECORDER button to resume printing.
Note:
To ensure you have loaded the paper properly, check to make sure the arrows printed
on the red, grid side of the paper point upward.
Cleaning the Print Head
To clean the recorder print head, perform the following steps:
1. Press the release button, and allow the printer door to open (see Figure 12-5); then remove
any paper.
2.
Locate the printhead along the front floor of the printer compartment, just below the release
button.
3.
Gently wipe the printhead with a cotton swab moistened with isopropyl alcohol, and dry any
residual alcohol with another dry cotton swab.
Figure 12-7.
Cleaning the Print Head
4.
Place the paper back into the unit and close the cover (see Figure 12-6).
