Pacer Mode Selected Format
The summary report function records 6 seconds of pre-pace patient ECG data. Also recorded
are the ECG lead, ECG size, patient's heart rate, pace rate, pace current, time and date. The
date/time printed on the top of the strip corresponds to the ECG data occurring 6 seconds before
the event.

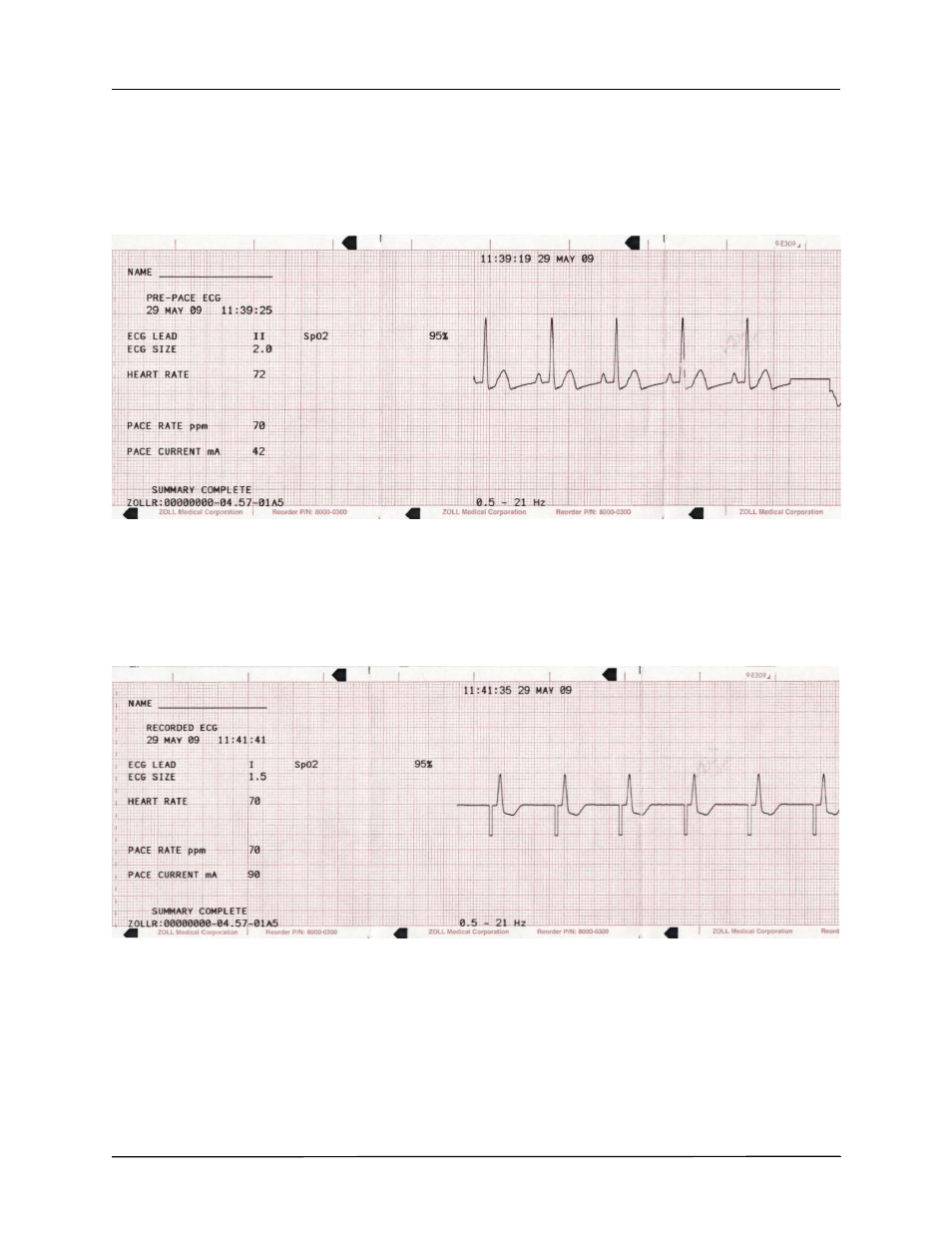

Figure 10-4.
Pacer Mode Selected Format
After establishing a paced rhythm, turning the recorder on briefly records the paced rhythm for
later reports. If Async pace is active, the annotation ASYNC PACE is also recorded and printed.
The date/time printed on the top of the strip corresponds to the ECG data occurring 6 seconds
before the event.
Figure 10-5.
Pacer Mode Selected Format (Asynchronous Pacing)
