Monitor Controls and Indicators
9650-0803-01 Rev. B Propaq M Operator’s Guide 2–7
Auxiliary Power Adapter
The auxiliary power adapter is used as backup power to operate the Propaq M. When it is
connected to the Propaq, it powers the unit and charges the battery that is installed in the
Propaq. When the power cord is plugged in and the auxiliary power connector is inserted into
the back of the Propaq unit, the auxiliary power LED on the front panel illuminates and the
auxiliary power icon displays at the top of the display screen.

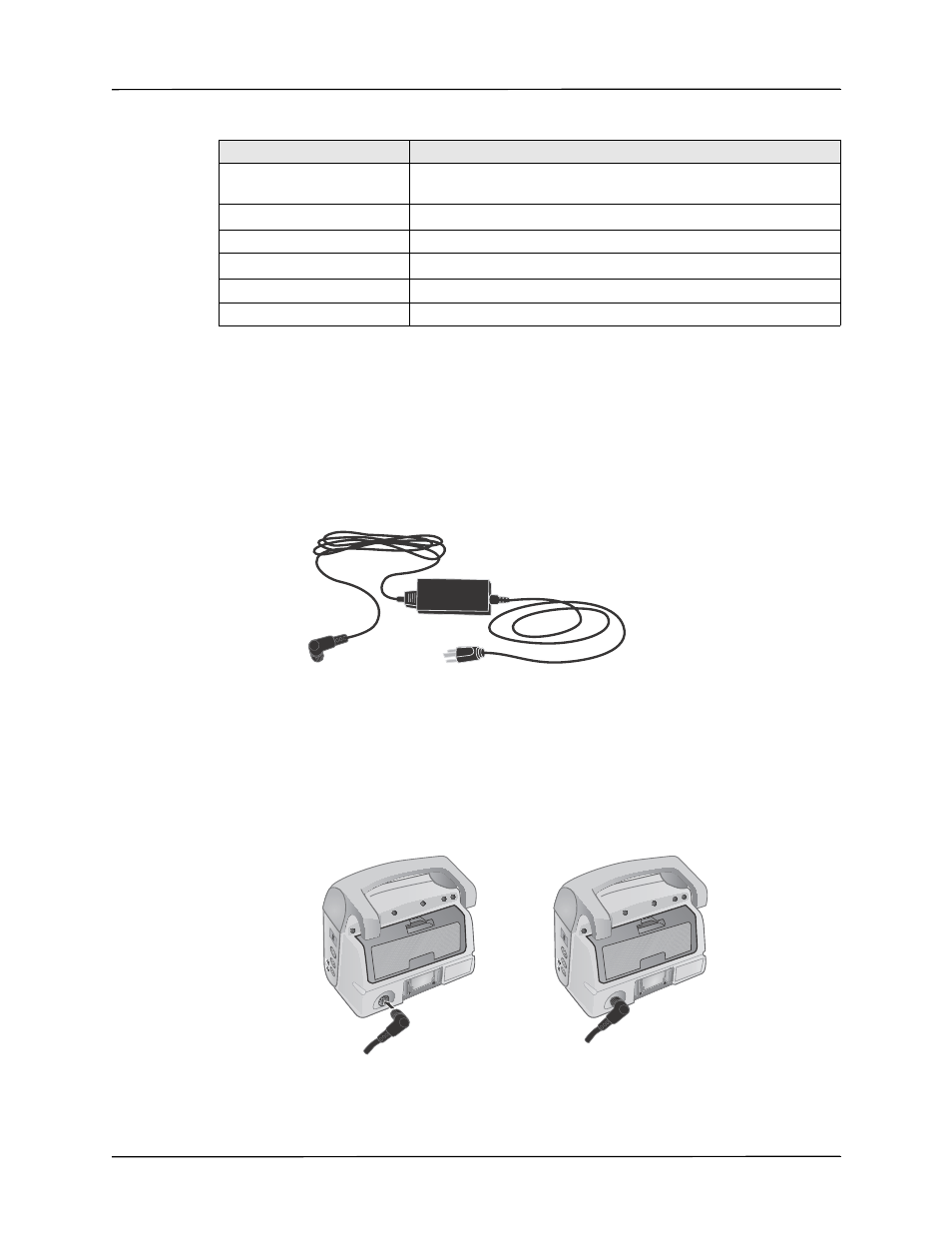

Figure 2-5. Auxiliary Power Adapter
To connect the auxiliary power adapter, insert the auxiliary power connector into the black
input connector on the back of the unit. To disconnect the auxiliary power adapter, grasp the
connector collar, turn it to the left, and pull it out.
Figure 2-6. Connecting the Auxiliary Power Adapter
Connector Description
ECG For connecting 3- or 5-lead ECG cable (12-lead monitoring is
optional).
SpO
2
For connecting Nellcor pulse oximeter cable.
NIBP For connecting NIBP hose.
CO
2
For connecting CO
2
sampling line.
Temp For connecting temperature probe(s).
IBP For connecting IBP cable(s).
