Display screen – ZOLL Propaq M Rev B User Manual
Page 30
C
HAPTER
2
P
RODUCT
O
VERVIEW
2–4
www.zoll.com
9650-0803-01 Rev. B
Display Screen
The front panel includes a color display which shows:
•
Date and time
•
Patient mode
•
Battery status indicator
•
Time elapsed (since unit was turned on)
•
Quick access keys
•
Waveform source
•
Color-coded waveforms and ECG lead identifiers
•
SpO
2
numeric data
•
Heart rate numeric data
•
Respiration rate numeric data
•
Temperature numeric data
•
Non-invasive blood pressure numeric data
•
EtCO
2
numeric data
•
Invasive pressure numeric data
•
Messages and prompts

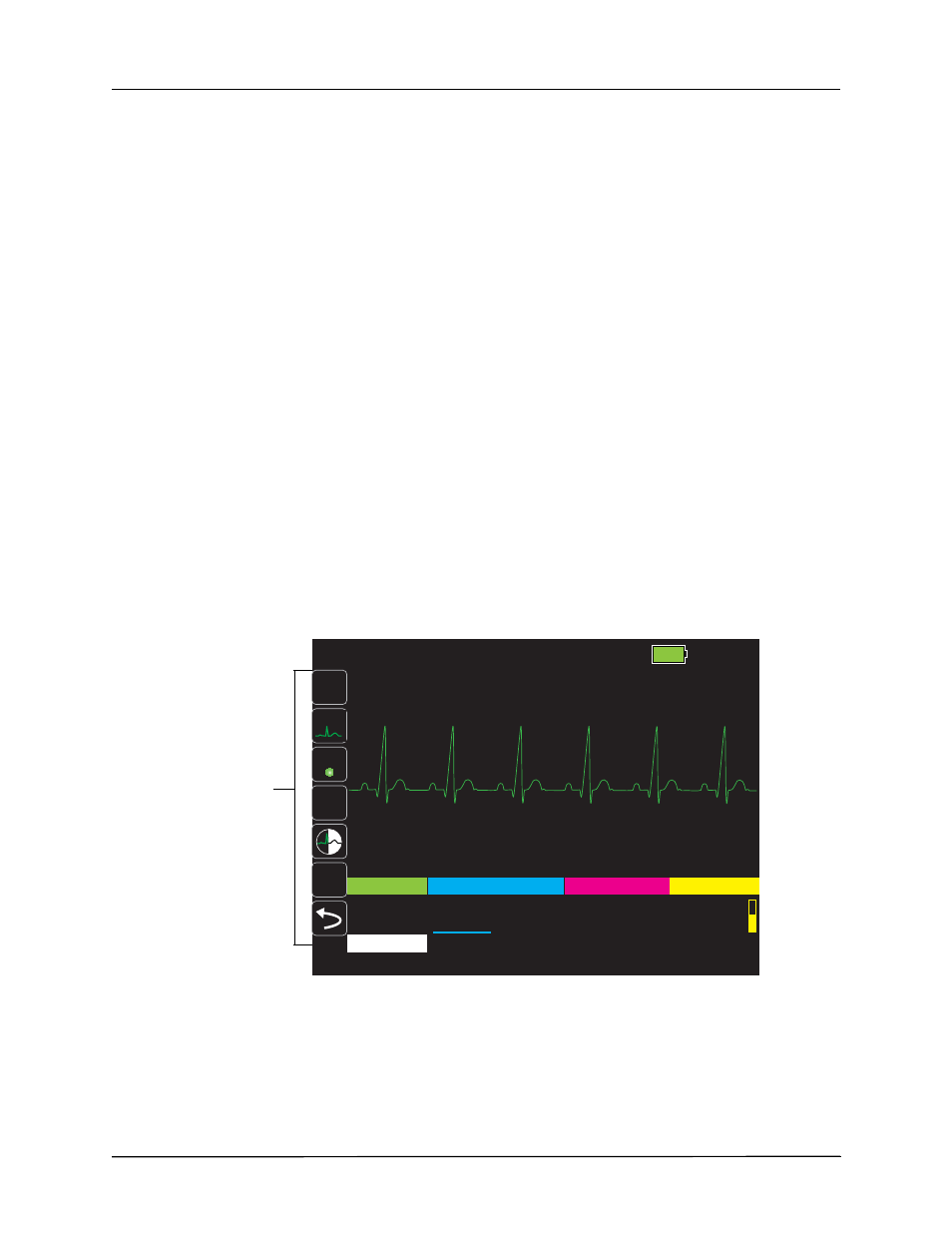

Figure 2-2 shows the layout of parameter values, waveforms, system data, and quick access key
labels.
Figure 2-2.
Propaq M Display Screen
Date and time
Patient mode
Battery status
Time elapsed
Quick
access
keys
Message
Waveform
SpO2 data
CO
2
data
Respiration rate
NIBP data
Heart rate
Current temp
03/23/2009 12:34:56
Adult
00:17:43
I, II,
III...
IBP
12
CO
2
1 cm/mV
II
HR bpm
80
121
79
(96)
NIBP mmHg
38
12
BR
CO2 mmHg SpO2 %
97
T1 ºF
98.6
