C HAPTER 2 P RODUCT O VERVIEW
2–2 www.zoll.com 9650-0803-01 Rev. B
The Front Panel
The front panel of the Propaq M device includes the display screen, quick access keys, battery
and auxiliary power indicators, and Ready For Use (RFU) indicator. See Figure 2-1. Refer to
Table 2-2 on page 2-2 for information about the controls and indicators.

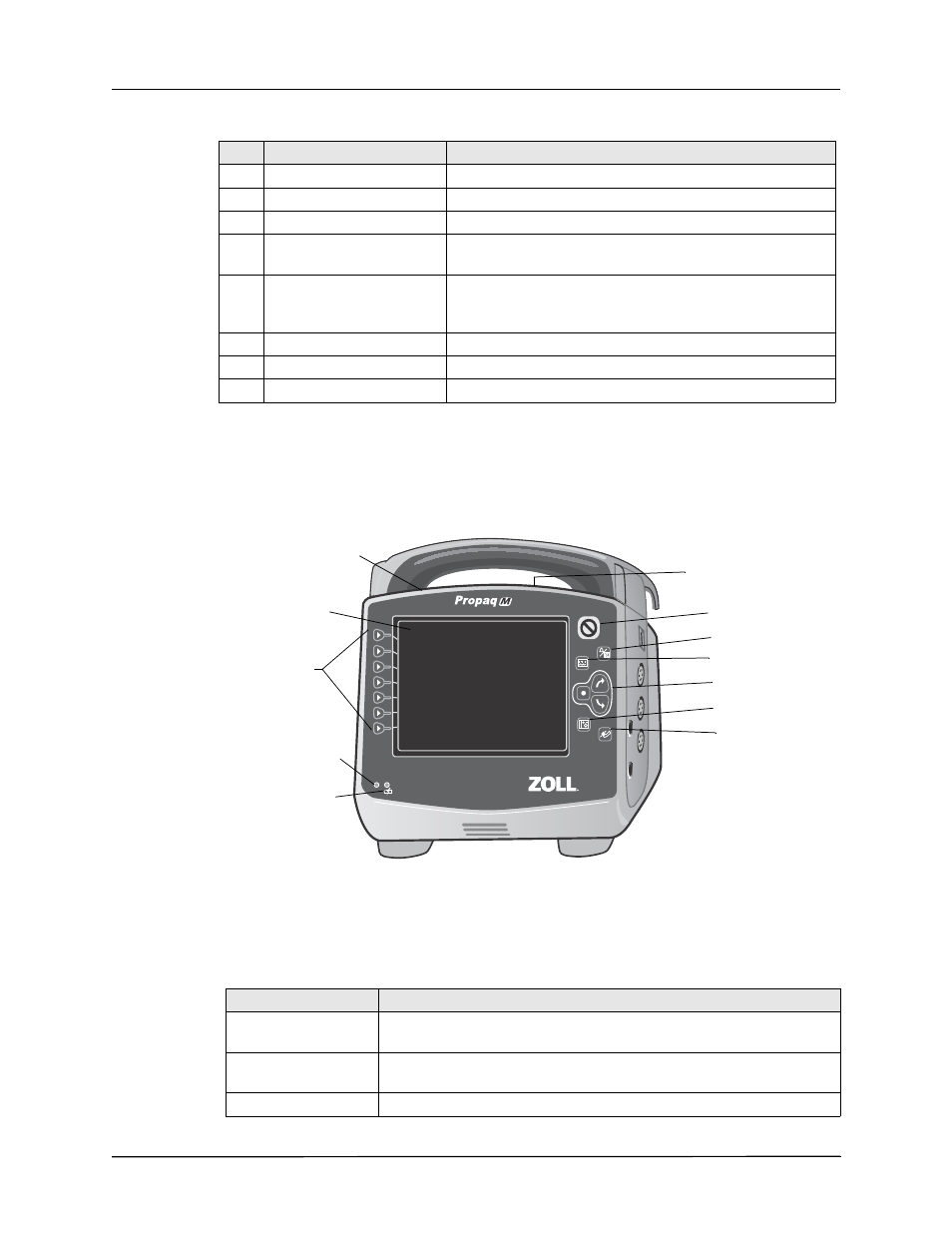

Figure 2-1. Propaq M Front Panel
Table 2-1. Propaq Unit Features
Item Description
1 Handle Integrated carrying handle.
2 Front panel Includes the display screen and primary controls.
3 Speaker Emits R-wave detection beeps and alarm tones.
4 Patient connectors For details, refer to “Patient Cables and Connectors” on
page 2-6.
5 USB device connector For connecting the Propaq monitor to a USB device. For
details, refer to “Storing, Transferring, and Reviewing
Patient Data” on page 15-1.
6 Battery compartment Holds a rechargeable lithium ion battery pack.
7 Auxiliary power connector For connecting the device to an auxiliary power adapter.
8 Dock connector For connecting the device to a docking station.
Table 2-2. Propaq Controls and Indicators
Control or Indicator Description
Display screen Shows settings, physiological waveforms and other information for each
monitored parameter, messages, time, and quick access key labels.
Quick access keys Seven buttons control different functions of the unit. Labels for the quick
access keys appear on the monitor display to the right of each key.
Auxiliary power LED Illuminated when the unit is plugged in to an auxiliary power adapter.
Seven quick
Display screen
RFU indicator
Auxiliary power LED
Battery charge LED
Silence/reset
Display
Navigation keys
Snapshot
NIBP
access keys
Power button
Visual Alarm Indicators
