1. Rear Leg Support Installation - Begin with the rear of the vehicle, as
the taillight location may determine the mounting option as well as the side to side
placement. The Leg Supports when mounted must not be more than 72” center to
center (see Figure 2.), and must be centered evenly side to side. Mount near the
outside corner of the box if possible, for strength. Option 1 is preferred (see Fig-
ure 3.), but Option 2 (see Figure 4.) may be necessary at the rear of vehicle, de-
pending on taillight locations. Decide which option to use, then follow that option’s
procedure. Fasten the Leg Support/Upper and Lower Brackets loosely at the rear
of the box.
CAUTION
Prior to drilling, so as not to
cut electric wires, etc., check
the vehicle for locations.
CAUTION
To keep debris out of your
eyes when drilling or sawing,
always wear protective
eyewear.
center
to
center

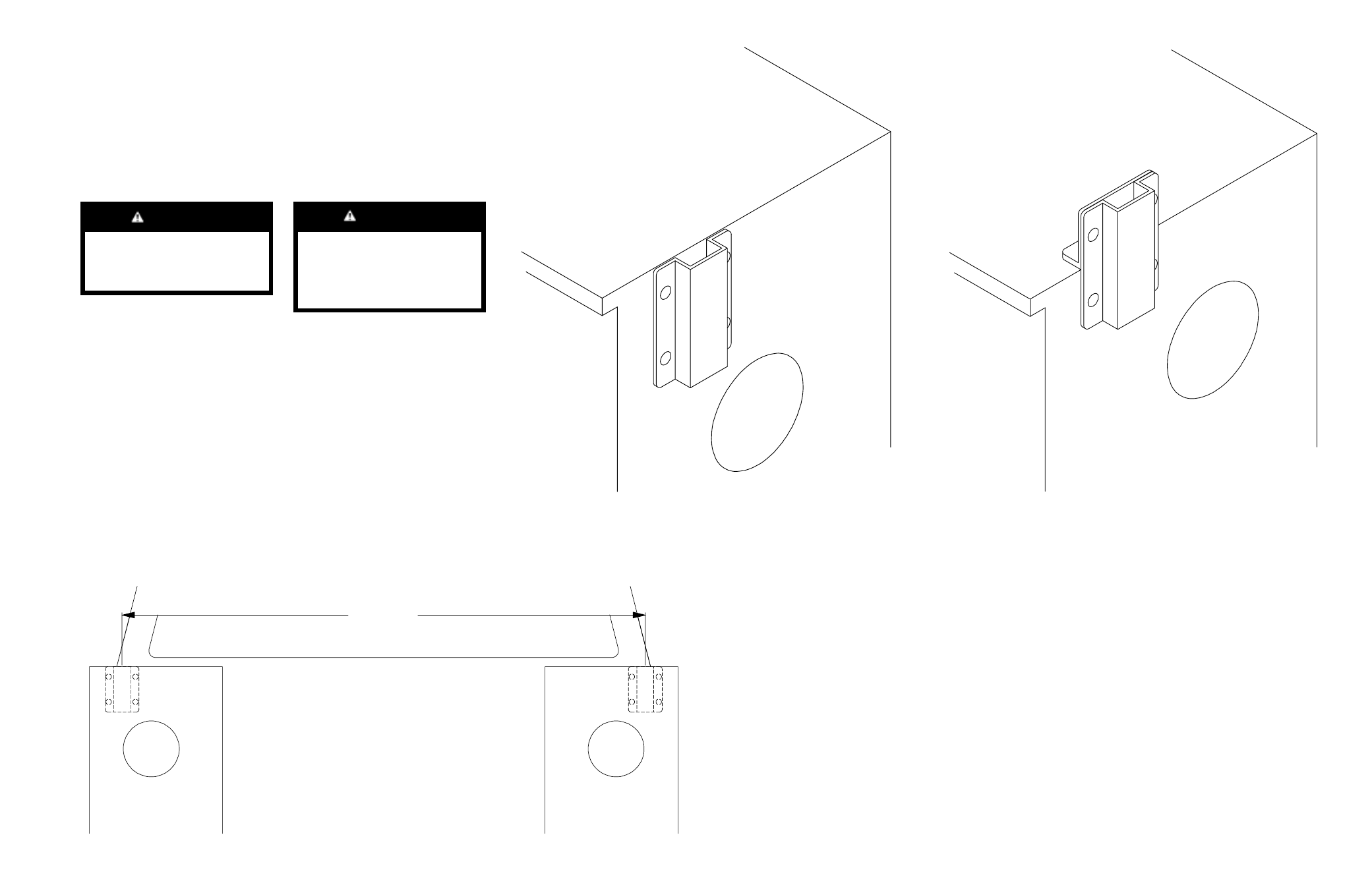

Figure 2. Center to Center Distance
(shown mounted per Option 1.)
Figure 3. Option 1 Installed (viewed from Driver Side rear)
Figure 4. Option 2 Installed (viewed from Driver Side rear)
