WEATHER GUARD 1225 User Manual
Page 2
NOTE: To prevent rust from occur-
ring, touch-up any drilled holes.
NOTE: Apply E-6000 Sealant* to the
service body around drilled holes
prior to assembly.
NOTE: Truck beds and boxes vary in
width and height. Crossmembers and
legs may have to be cut to fit your box.
Crossmember length will be the dis-
tance from center to center of the leg
supports, but not more than 72".
2
Rail Half
(2)
Clamp Socket
(w/ loop for Strap)
(1)
Crossmember (open one end)
(2)
Crossmember (open ends) (2)
Leg Support (4)
Rail Clamp Plate (4)
Rear Leg/Rail
Passenger Side (1)
Rear Leg/Rail
Driver Side (1)
Front Leg
Passenger Side (1)
Front Leg
Driver Side (1)

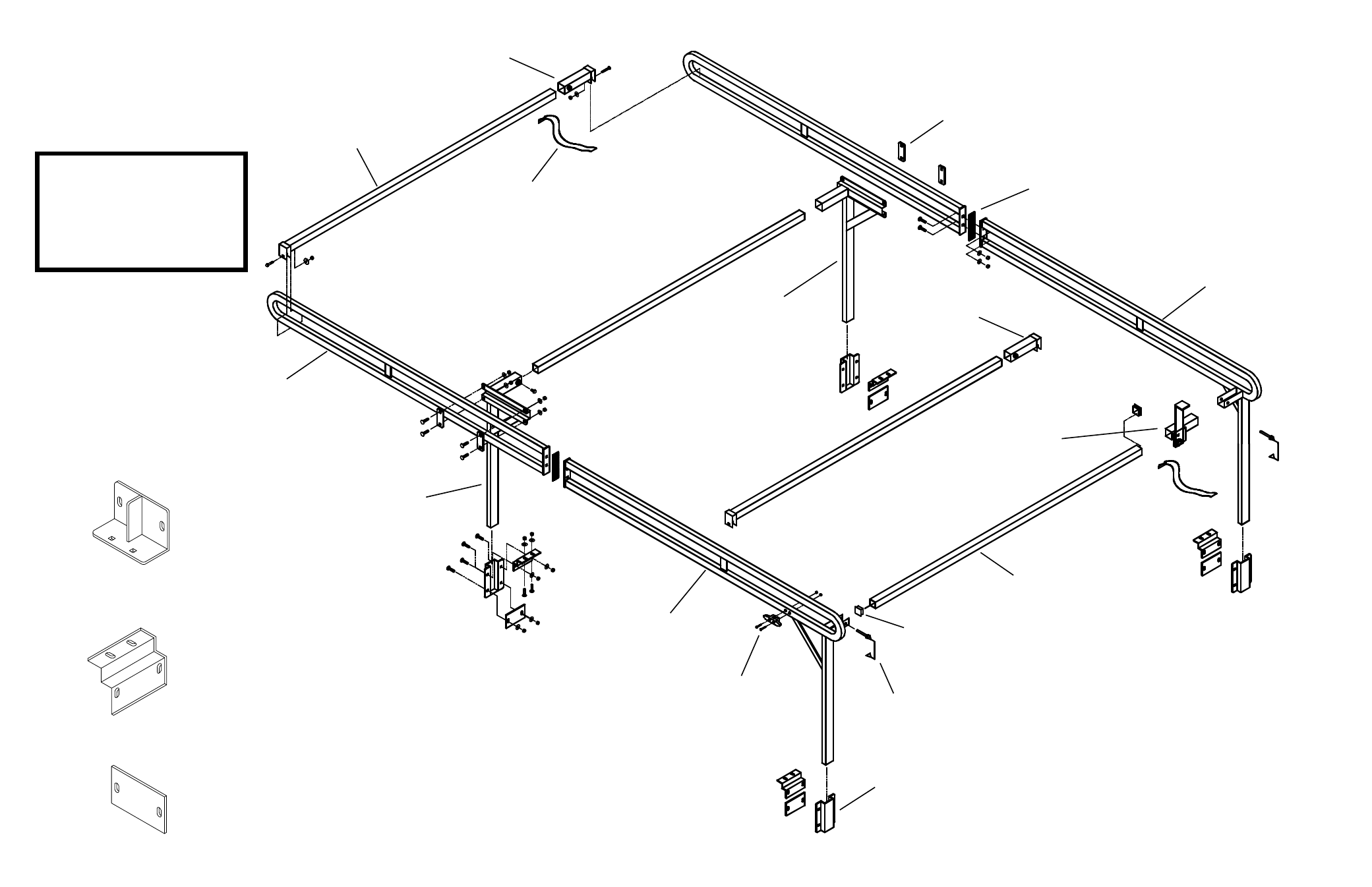

Figure 1. Exploded View
Rope Cleat (4)
Use these illustrations to identify parts
Snapper Pin (2)
Square Cap Plug (2)
Cushion Strip
(bulk)
Upper Bracket, 1225 (2)
Lower Bracket, 1225 (4)
Mounting Plate, 1225 (4)
* Included with your Rack
Strap, 1450 (2)
Ladder Stop
Assembly (1)
Clamp Socket (1)
