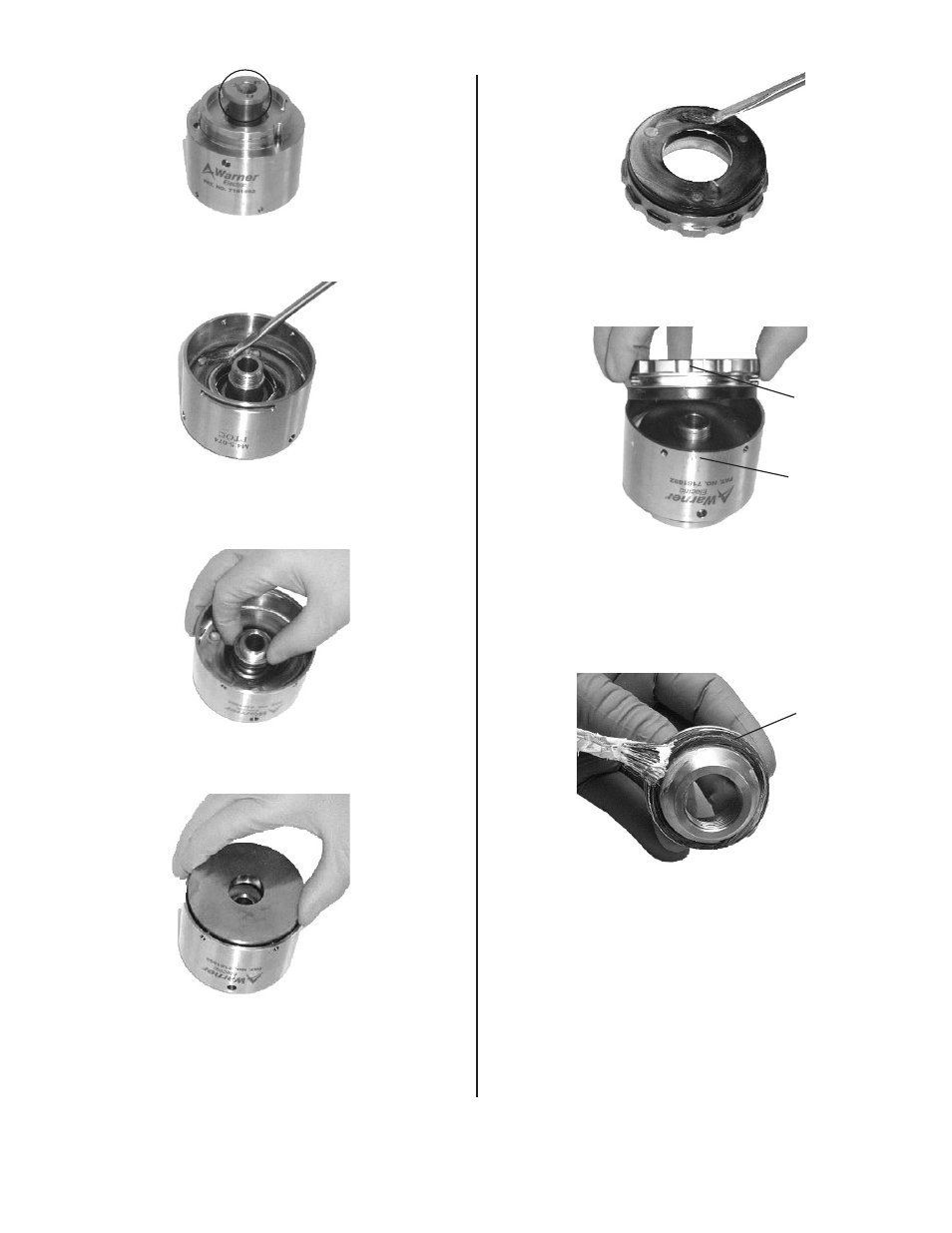

Insert shaft into housing. See Figure 37.
Figure 37
Apply a thin layer of grease to the driver magnet.
See Figure 38.
Figure 38
Install spacer. See Figure 39.
Figure 39
Install hysteresis magnet. Align on shaft and
allow it to drop carefully down to the spacer. Use
caution as magnets will attract to each other.
See Figure 40.
Figure 40
Apply a thin layer of grease to the adjustable end
cap driver magnet. See Figure 41.
Figure 41
With torque settings on the housing and torque
index mark on end cap facing you - place housing
on end cap. Use caution as magnets will attract
to each other. Tap in place with soft hammer if
necessary. See Figure 42.
Figure 42
**On newer models install seal and apply a thin layer
of grease to top of seal. If your end cap does not
have a groove in it to accept the seal, skip this step.
See Figure 43.
Figure 43
Torque Index
Mark
Torque
Settings
Install Seal,
Apply Grease
