12 Warner Electric • 800-825-9050 P-2016 • ARC

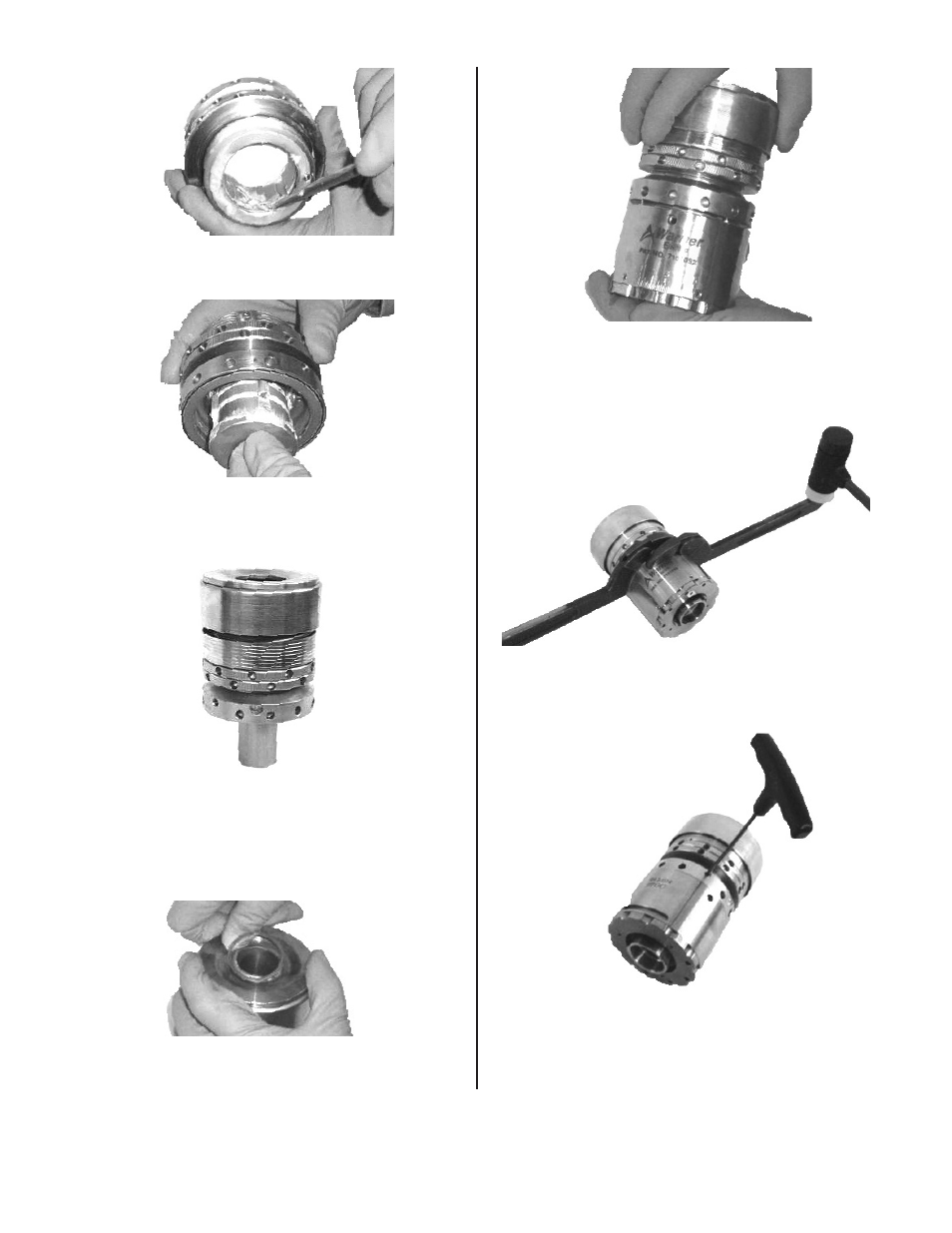

Tighten using spanner wrenches (YTL3-0009)
and a soft hammer. See Figure 62.
Figure 62
Apply a thin layer of grease the seal and bore. See
Figure 57.
Figure 57
Install shaft in top load assembly. Make sure all 4
pins stay engaged during insertion. See Figure 58.
Figure 58
Set top-load on FIX-0002 so that the shaft does not
push in while compressing the spring. Install lower
spring cover (if applicable), spring, upper spring
cover (if applicable), and spring plate. See Figure 59.
Figure 59
Compress spring plate and install snap ring. Make
sure that the snap ring seats fully into groove. See
Figure 60.
Figure 60
Thread together the clutch and top-load
assembly. See Figure 61.
Figure 61
Install set screw with 1/8” 3mm hex wrench;
tighten. See Figure 63.
Figure 63
