Warner Electric • 800-825-9050 P-2016 • ARC 7

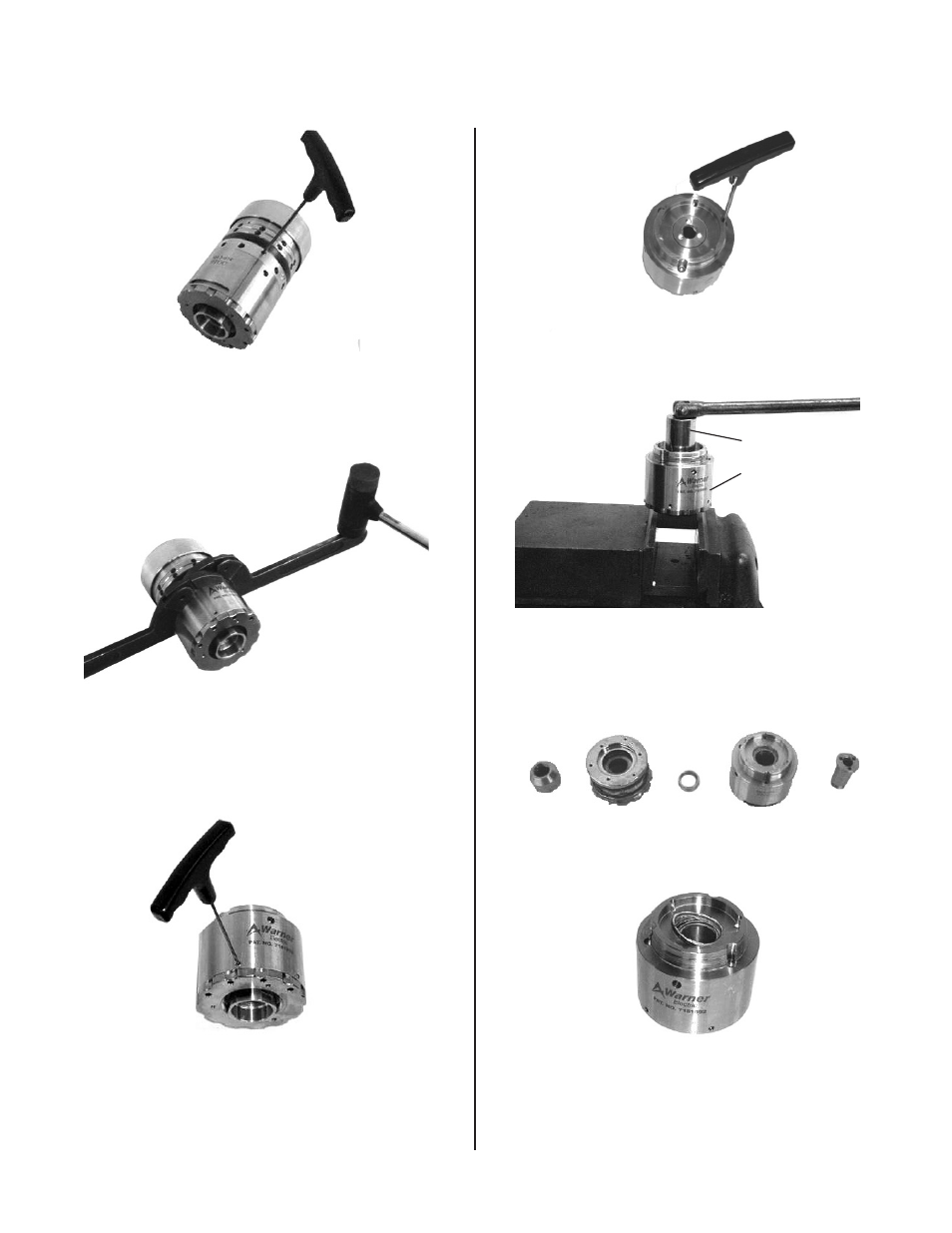

Remove set screw between clutch and top load
assembly using a 1/8” 3mm hex wrench. See
Figure 22.
Figure 22
Separate top load assembly from clutch using
two spanner wrenches (YTL3-0009) and soft
hammer. Sometimes a steel hammer may be
required to loosen this joint. See Figure 23.
Figure 23
Remove two set screws using a 3/32” 3mm hex
wrench. Remove third set screw in the slot on
the backside of the housing. See Figure 24.
Figure 24
ARC
Clutch Rebuild Procedure
Remove three socket head cap screws using a
9/64” 3mm hex wrench. See FIgure 25.
Figure 25
Place FIX-0003 in a vice. Place clutch in the fixture
and put FIX-0005 on top. Loosen nut and lift off
housing. See Figure 26.
Figure 26
Remove seal and bearing from housing. See Figure
28.
Figure 28
Remove seal and bearing from housing. See Figure
27.
Figure 27
FIX-0005
FIX-0003
