d. The following screen will be displayed:
Press either the [1] key (IEEE 30 DEGREE), the [2] key (IEEE 45 DEGREE), or the [3] key
(IEC 10%V-->50%I) to select the desired knee point marker. The knee point marker will
be set and you will be returned to the “START-UP” menu. A graphic report showing the
knee point marker is shown in Figure 14.

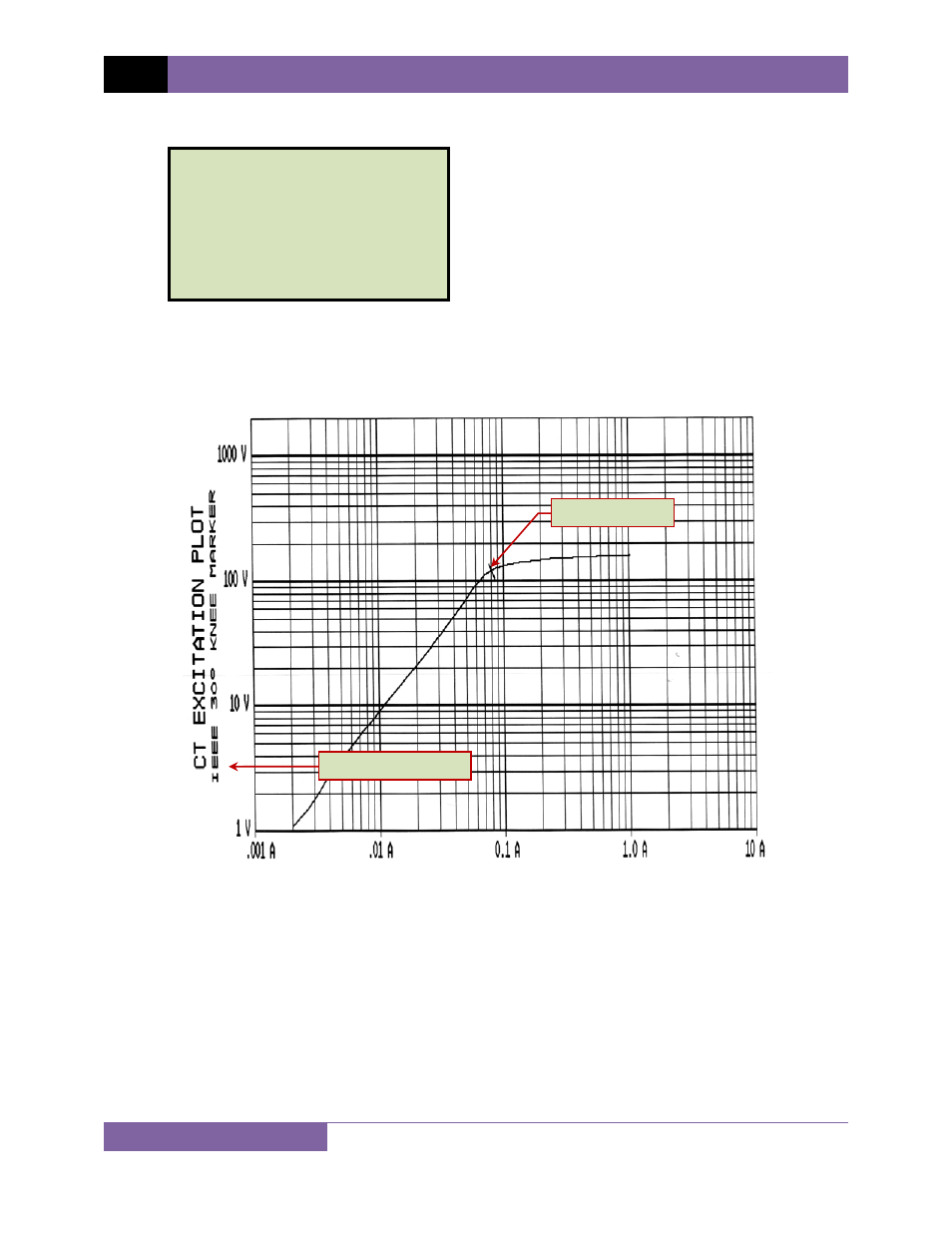

Figure 14. Graphic Report Showing Knee Point Marker
1. IEEE 30 DEGREE
2. IEEE 45 DEGREE
3. IEC 10 %V-->50%I
Knee Point Marker
Knee Point Marker Type
