CT-7000 Operating Instructions
6
5.0 CT-7000 Controls and Display
Before using the CT-7000, users should become familiar with all of the controls and display
indications. The keypad and display are used to operate the CT-7000. Figure 1.0 represents the
control panel and the numbered lines pointing to each control and indicator refer to Table 1.0,
which describes the function of each control and indicator.

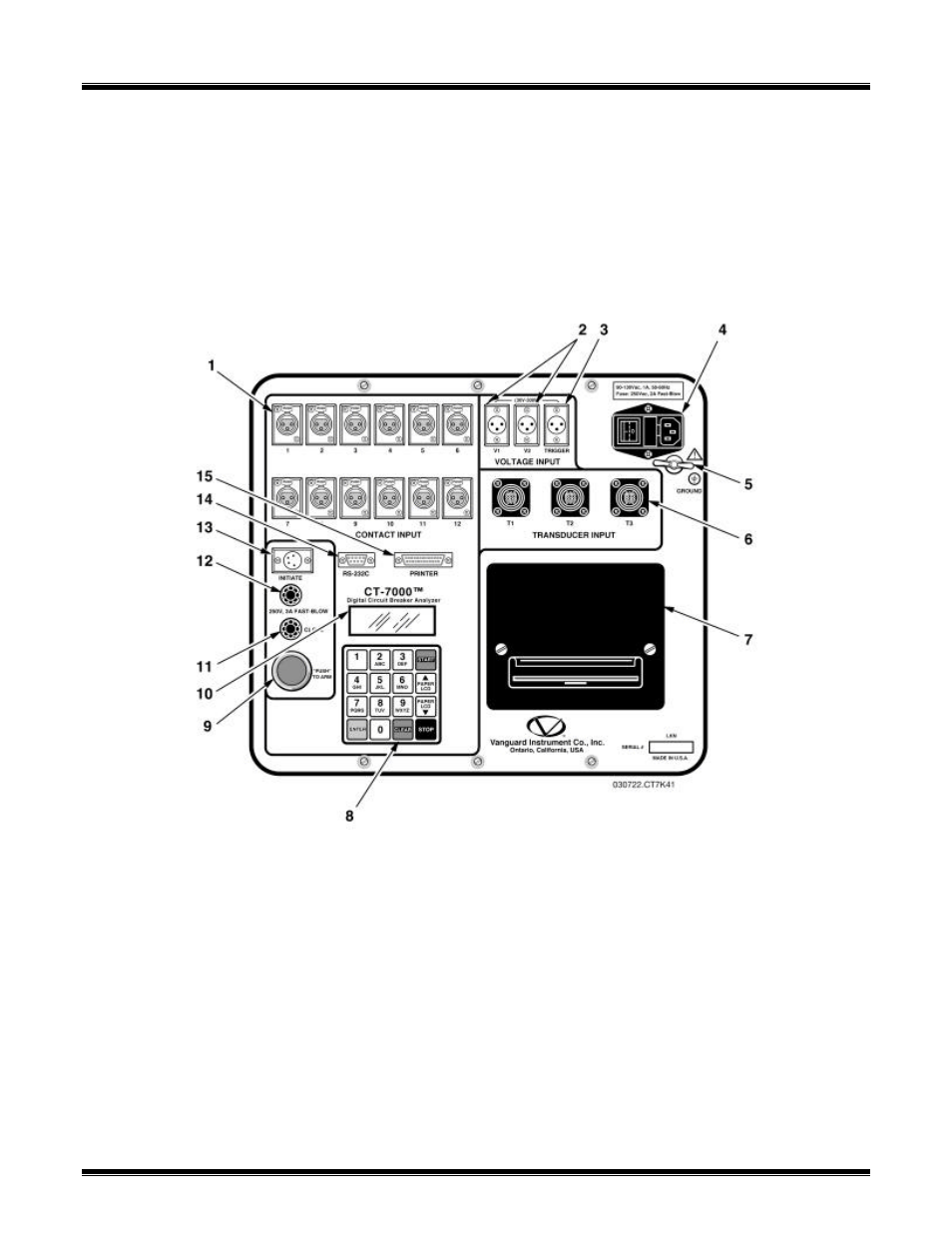

Figure 1.0 CT-7000 Control Panel
