Teledyne LeCroy Corporation Sierra M6-4 and Sierra M6-2 Port Configurations Reference Manual
43 43
2.2.4.13 Single Port Jammer (Port 1) + Single Port Analyzer/Device Emulator _
(API Index _J_0_ADE_0 = 38)
Ports configuration:
Port 1 Port 2 Port 3 Port 4
- -
Internal Connection:

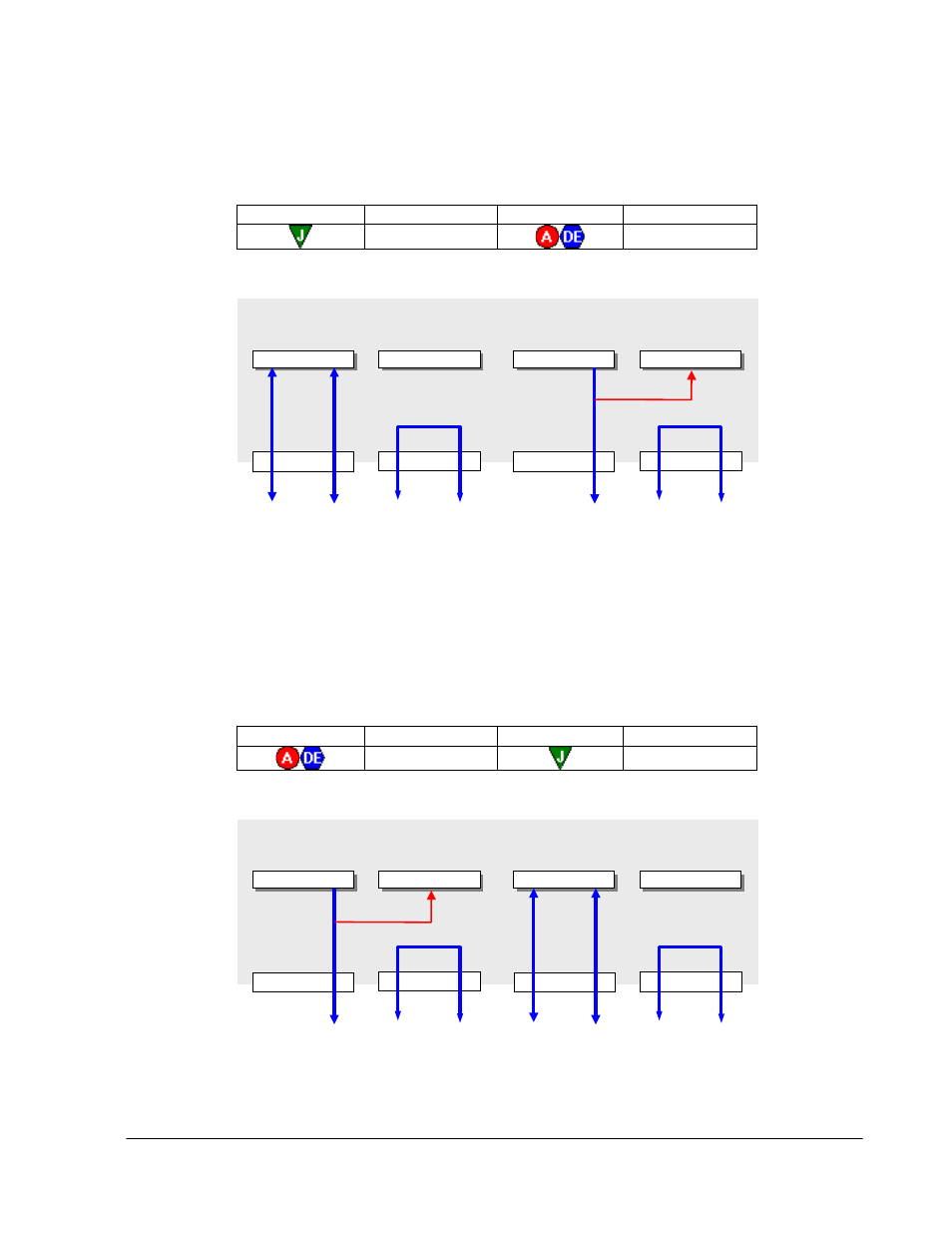

Figure 2-63 Single port Jammer (Port 1) + Single port Analyzer/Device Emulator
2.2.4.14 Single Port Jammer (Port 3) + Single Port Analyzer/Device Emulator _
(API Index _ADE_0_J_0 = 40)
Ports configuration:
Port 1 Port 2 Port 3 Port 4
- -
Internal Connection:
Figure 2-64 Single port Jammer (Port 3) + Single port Analyzer/Device Emulator
T e l e d y n e L e C r o y S i e r r a M 6 - 4 S y s t e m
Device Emulator
DE on Port 3
Analyzer
Analysis on Port 3
Jammer
Jammer on Port 1
Pass through
Port 1 Port 2 Port 4 Port 3
T1 I1 T2 I2 I3 T4 I4
T e l e d y n e L e C r o y S i e r r a M 6 - 4 S y s t e m
Jammer
Jammer on Port 3
Pass through Device Emulator
DE on Port 1
Analyzer
Analysis on Port 1
Port 1 Port 2 Port 4
T1 I1 T2 I2 T3 I3 T4 I4
Port 3
