2.2.4 Jammer and Emulator Configurations
2.2.4.1 Single Port Jammer (Port 1) + Two Ports Host Emulator (API Index _
J_0_HE_HE = 29)
Ports configuration:
Port 1 Port 2 Port 3 Port 4
-
Internal Connection:

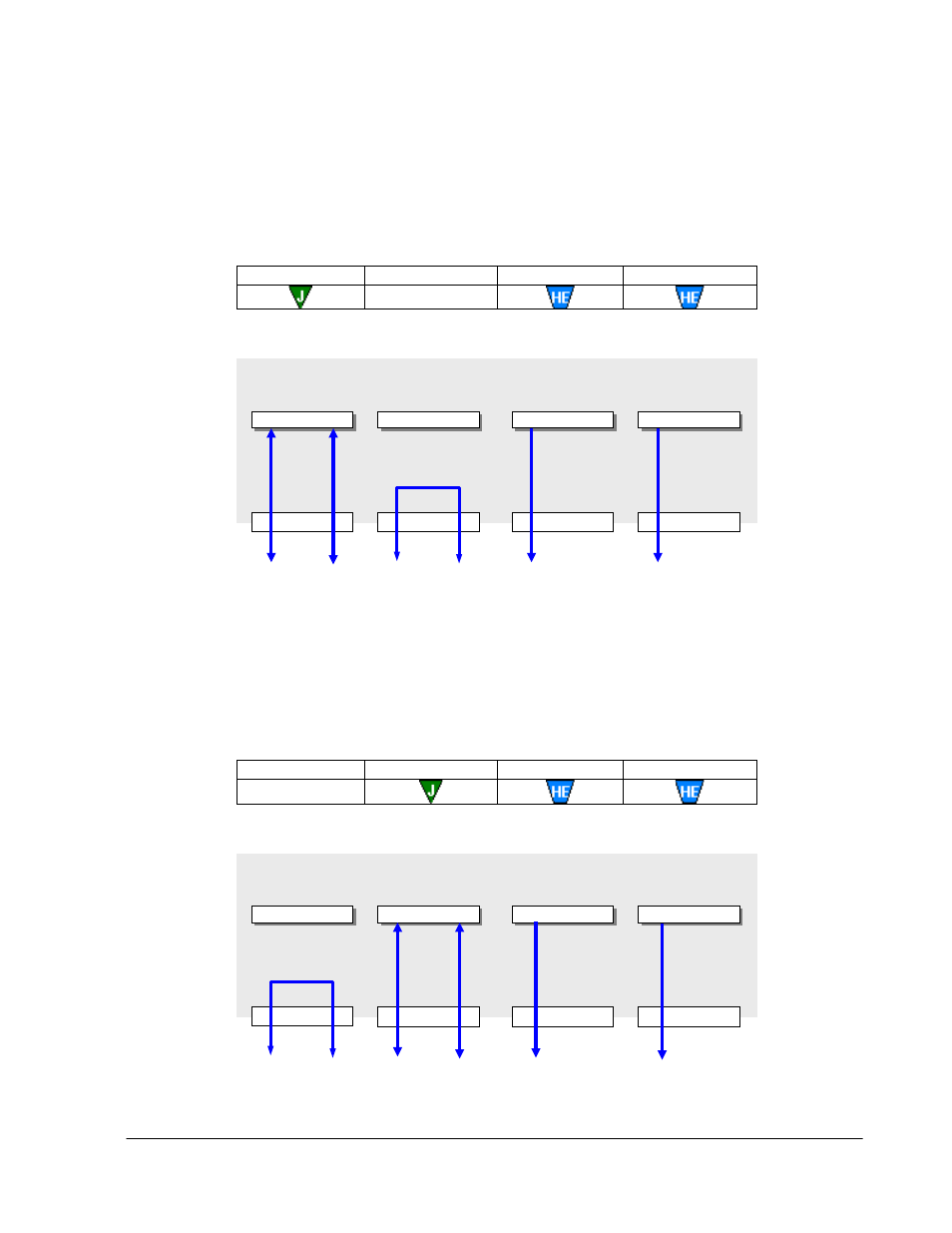

Figure 2-51 Single port Jammer (Port 1) + Two ports Host Emulator
2.2.4.2 Single Port Jammer (Port 2) + Two Ports Host Emulator (API Index _
0_J_HE_HE = 30)
Ports configuration:
Port 1 Port 2 Port 3 Port 4
-
Internal Connection:
Figure 2-52 Single port Jammer (Port 2) + Two ports Host Emulator
T e l e d y n e L e C r o y S i e r r a M 6 - 4 S y s t e m
Host Emulator
Host Emul on Port 3
Host Emulator
Host Emul on Port 4
Pass through
not used
Jammer
Jammer on Port 2
Port 2 Port 3 Port 4 Port 1
T1 I1 T2 I2 T3 I3 T4 I4
T e l e d y n e L e C r o y S i e r r a M 6 - 4 S y s t e m
Host Emulator
Host Emul on Port 3
Host Emulator
Host Emul on Port 4
Jammer
Jammer on Port 1
Pass through
not used
Port 1 Port 3 Port 4 Port 2
T1 I1 T2 I2 T3 I3 T4 I4
