Teledyne LeCroy Corporation Sierra M6-4 and Sierra M6-2 Port Configurations Reference Manual
29
29
2.2.3
Jammer and Analyzer Configurations
2.2.3.1
Single Port (Port 1) Jammer + Two Ports Analyzer (API Index _
J_0_A_A = 11)
Ports configuration:
Port 1
Port 2
Port 3
Port 4
-
Internal Connection:

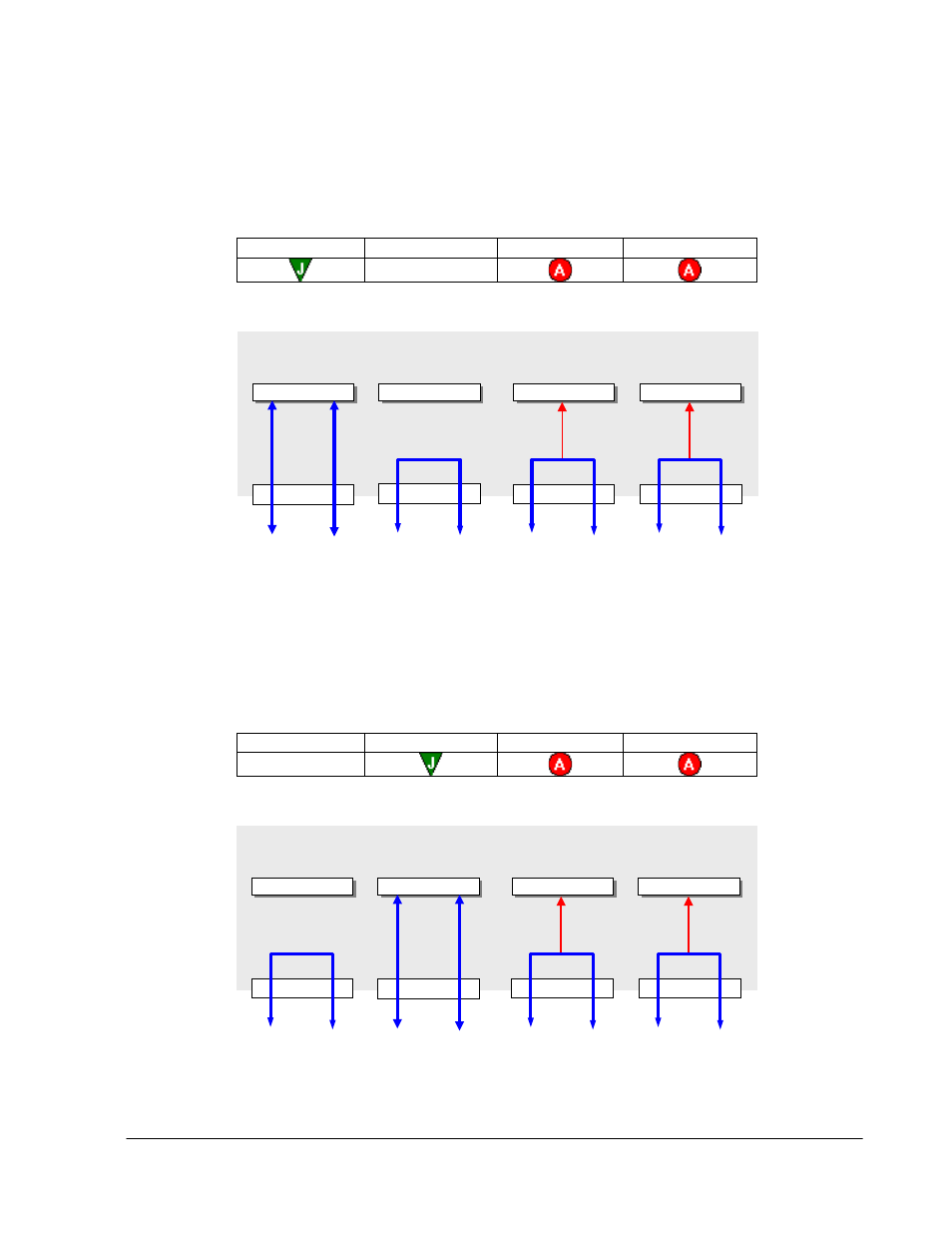

Figure 2-36 Single port (Port 1) Jammer + Two ports Analyzer
2.2.3.2
Single Port (Port 2) Jammer + Two Ports Analyzer (API Index _
0_J_A_A = 12)
Ports configuration:
Port 1
Port 2
Port 3
Port 4
-
Internal Connection:
Figure 2-37 Single port (Port 2) Jammer + Two ports Analyzer
T e l e d y n e L e C r o y S i e r r a M 6 - 4 S y s t e m
Analyzer
Analysis on Port 3
Analyzer
Analysis on Port 4
Pass through
not used
Jammer
Jammer on Port 2
Port 2
Port 1
Port 3
Port 4
T1
I1
T2
I2
T3
I3
T4
I4
T e l e d y n e L e C r o y S i e r r a M 6 - 4 S y s t e m
Analyzer
Analysis on Port 3
Analyzer
Analysis on Port 4
Jammer
Jammer on Port 1
Pass through
not used
Port 1
Port 2
Port 3
Port 4
T1
I1
T2
I2
T3
I3
T4
I4
