Teledyne LeCroy Corporation Sierra M6-4 and Sierra M6-2 Port Configurations Reference Manual
14 14

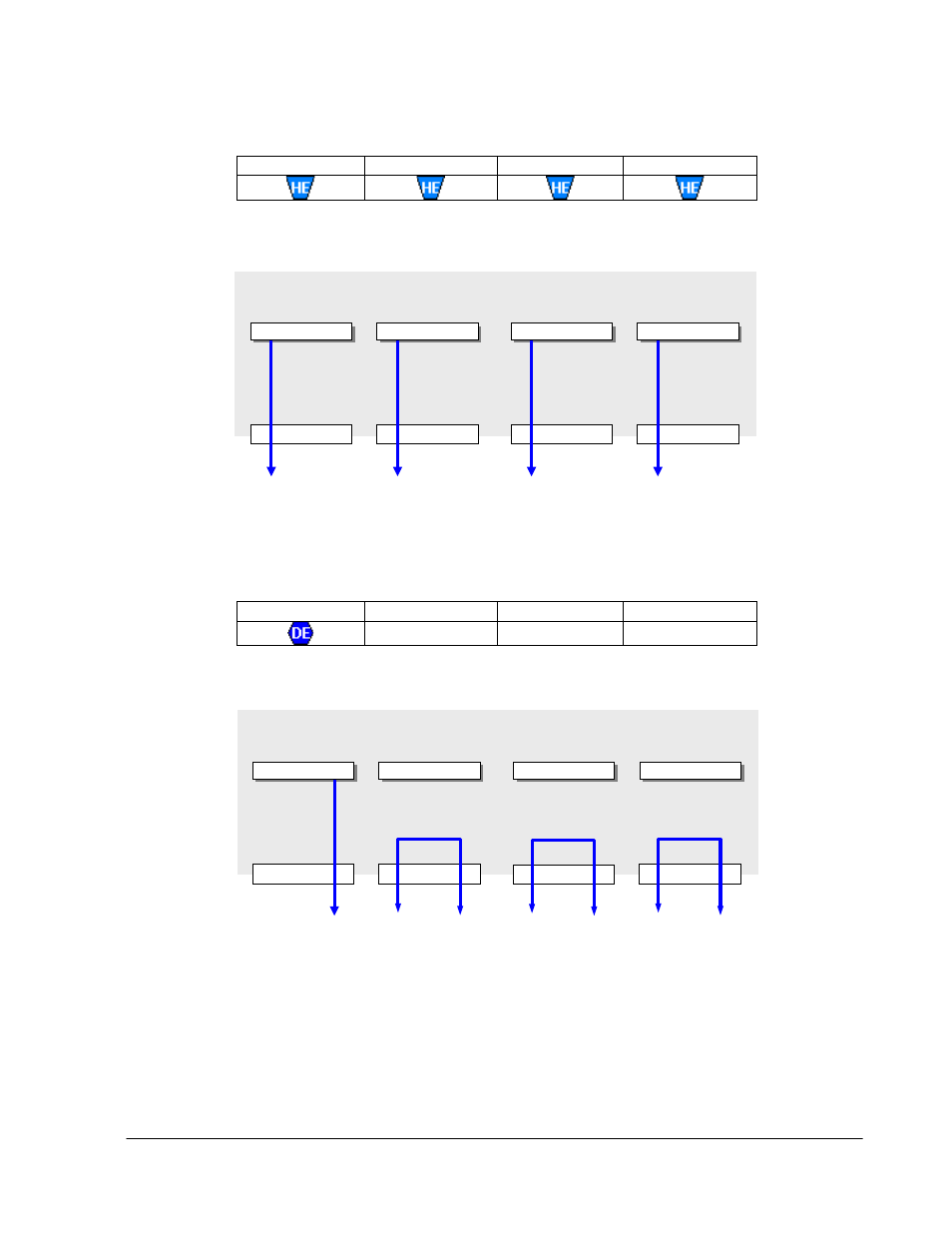

2.2.1.7 Four Ports Host Emulator (API Index _HE_HE_HE_HE = 3)
Ports configuration:
Port 1 Port 2 Port 3 Port 4
Internal Connection:
Figure 2-7 Four Ports Host Emulator
2.2.1.8 Single Port Device Emulator (API Index _DE_0_0_0 = 42)
Ports configuration:
Port 1 Port 2 Port 3 Port 4
- - -
Internal Connection:
Figure 2-8 Single port Device Emulator
L e C r o y S i e r r a M 6 - 4 S y s t e m
Pass through
not used
Pass through
not used
Device Emulator
DE on Port 1
Pass through
not used
Port 1 Port 2 Port 3 Port 4
T1 I1 T2 I2 T3 I3 T4 I4
T e l e d y n e L e C r o y S i e r r a M 6 - 4 S y s t e m
Host Emulator
HE on Port 3
Host Emulator
HE on Port 4
Host Emulator
HE on Port 1
Host Emulator
HE on Port 2
Port 1 Port 2 Port 3 Port 4
T1 I1 T2 I2 T3 I3 T4 I4
