Teledyne LeCroy Corporation Sierra M6-4 and Sierra M6-2 Port Configurations Reference Manual
16 16

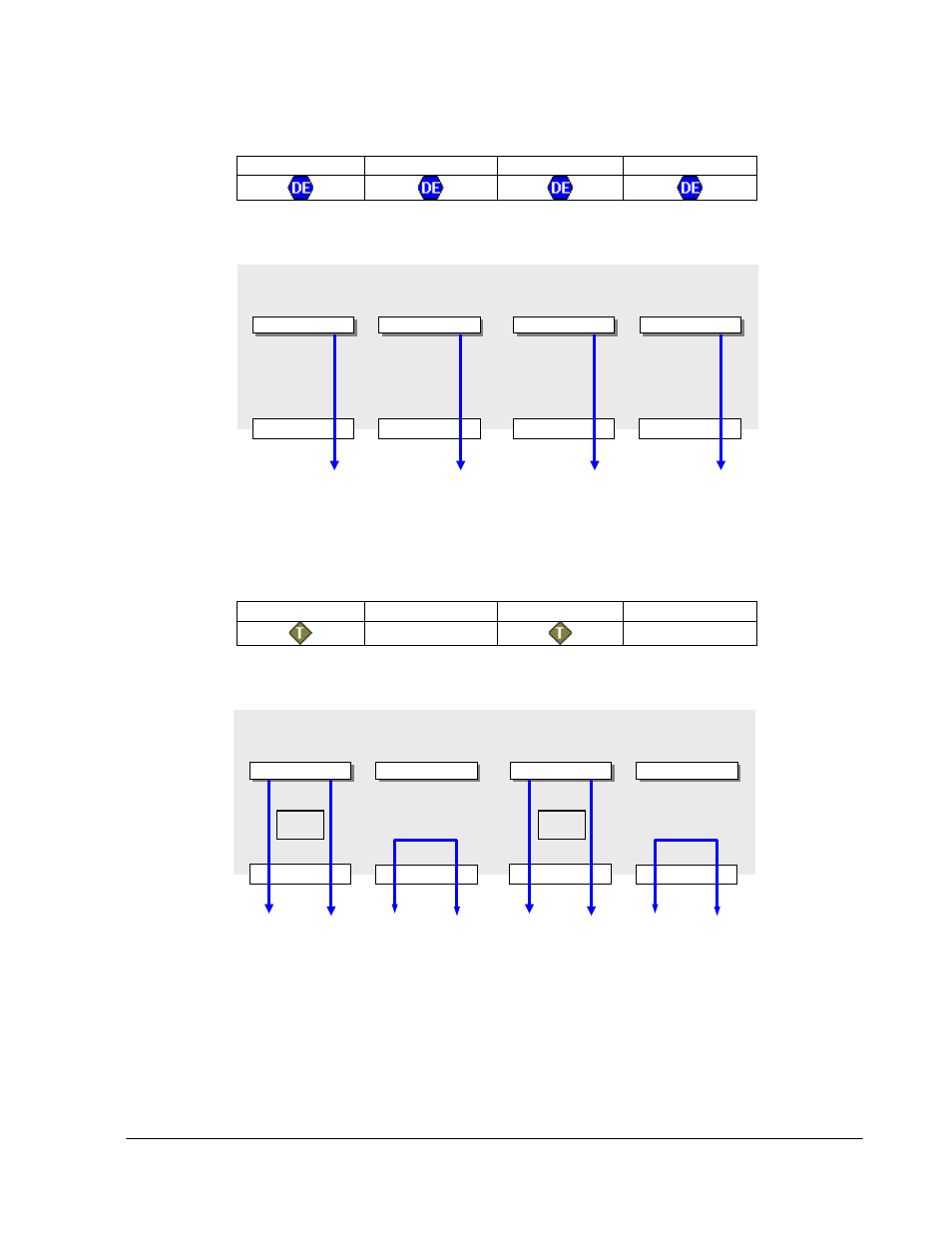

2.2.1.11 Four Ports Device Emulator (API Index _DE_DE_DE_DE = 4)
Ports configuration:
Port 1 Port 2 Port 3 Port 4
Internal Connection:
Figure 2-11 Four ports Device Emulator
2.2.1.12 Two Ports Trainer (Ports 1, 3)
Ports configuration:
Port 1 Port 2 Port 3 Port 4
- -
Internal Connection:
Figure 2-12 Two ports Trainer (Ports 1, 3)
T e l e d y n e L e C r o y S i e r r a M 6 - 4 S y s t e m
Device Emulator
DE on Port 3
Device Emulator
DE on Port 4
Device Emulator
DE on Port 1
Device Emulator
DE on Port 2
Port 1 Port 2 Port 3 Port 4
T1 I1 T2 I2 T3 I3 T4 I4
T e l e d y n e L e C r o y S i e r r a M 6 - 4 S y s t e m
Trainer
Trainer on Port 3
Pass through
not used
Trainer
Trainer on Port 1
Pass through
not used
Port 1 Port 3 Port 2 Port 4
T1 I1 T2 I2 T3 I3 T4 I4
OR OR
