Teledyne LeCroy Corporation Sierra M6-4 and Sierra M6-2 Port Configurations Reference Manual
30 30
2.2.3.3 Single Port (Port 3) Jammer + Two Ports Analyzer (API Index _
_ __ A_A_J_0 = 50)
Ports configuration:
Port 1 Port 2 Port 3 Port 4
-
Internal Connection:

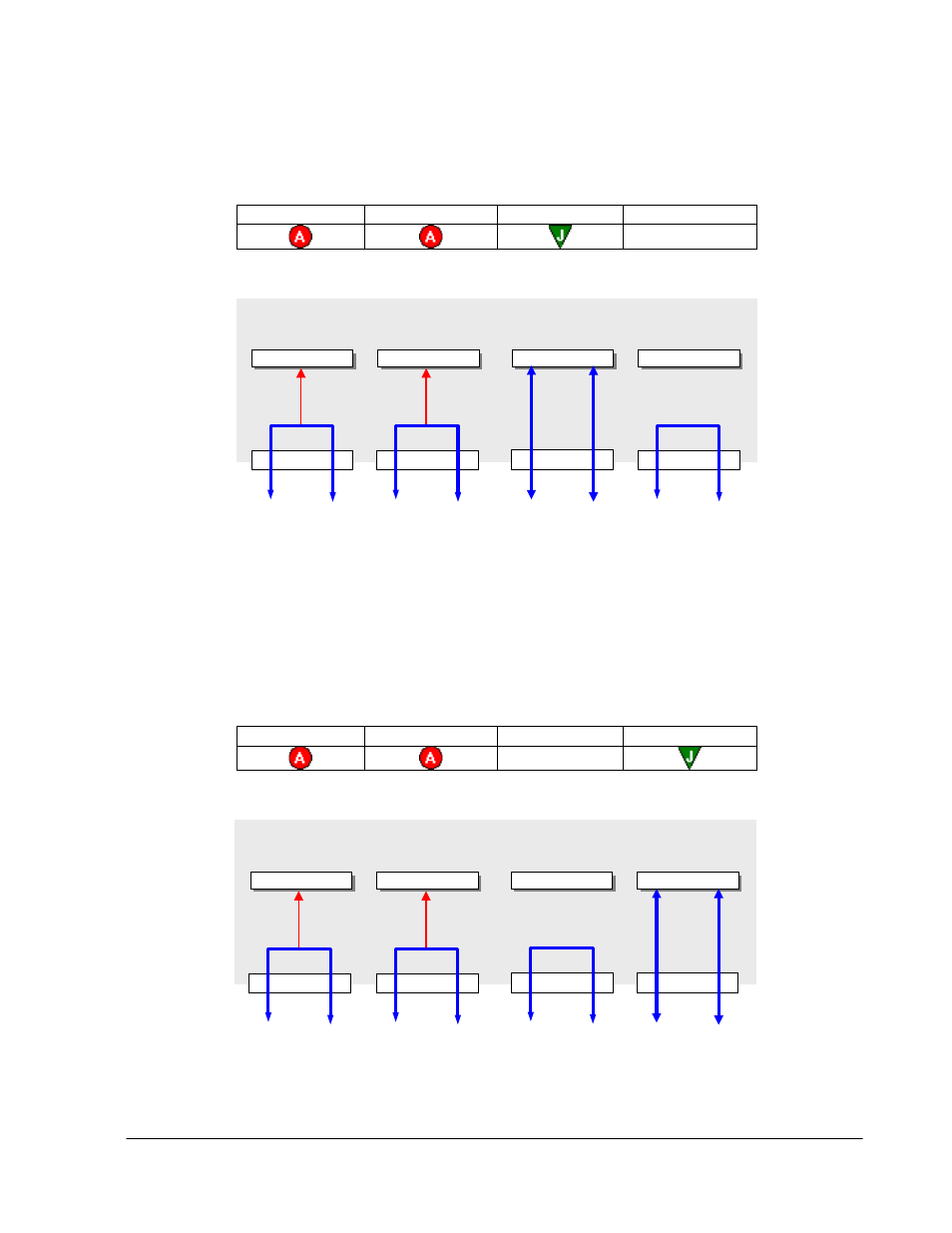

Figure 2-38 Single port (Port 3) Jammer + Two ports Analyzer
2.2.3.4 Single Port (Port 4) Jammer + Two Ports Analyzer (API Index _
_ __ A_A_0_J = 51)
Ports configuration:
Port 1 Port 2 Port 3 Port 4
-
Internal Connection:
s
Figure 2-39 Single port (Port 4) Jammer + Two ports Analyzer
T e l e d y n e L e C r o y S i e r r a M 6 - 4 S y s t e m
Pass through
not used
Jammer
Jammer on Port 4
Analyzer
Analysis on Port 1
Analyzer
Analysis on Port 2
Port 3 Port 4 Port 1 Port 2
T1 I1 T2 I2 T3 I3 T4 I4
T e l e d y n e L e C r o y S i e r r a M 6 - 4 S y s t e m
Jammer
Jammer on Port 3
Pass through
not used
Analyzer
Analysis on Port 1
Analyzer
Analysis on Port 2
Port 4 Port 3 Port 1 Port 2
T1 I1 T2 I2 T3 I3 T4 I4
