Chapter 3 87
7. See “Removing the LCD Module” on page 71
8. See “Removing the RTC Battery” on page 79
9. See “Removing the Upper Case” on page 81

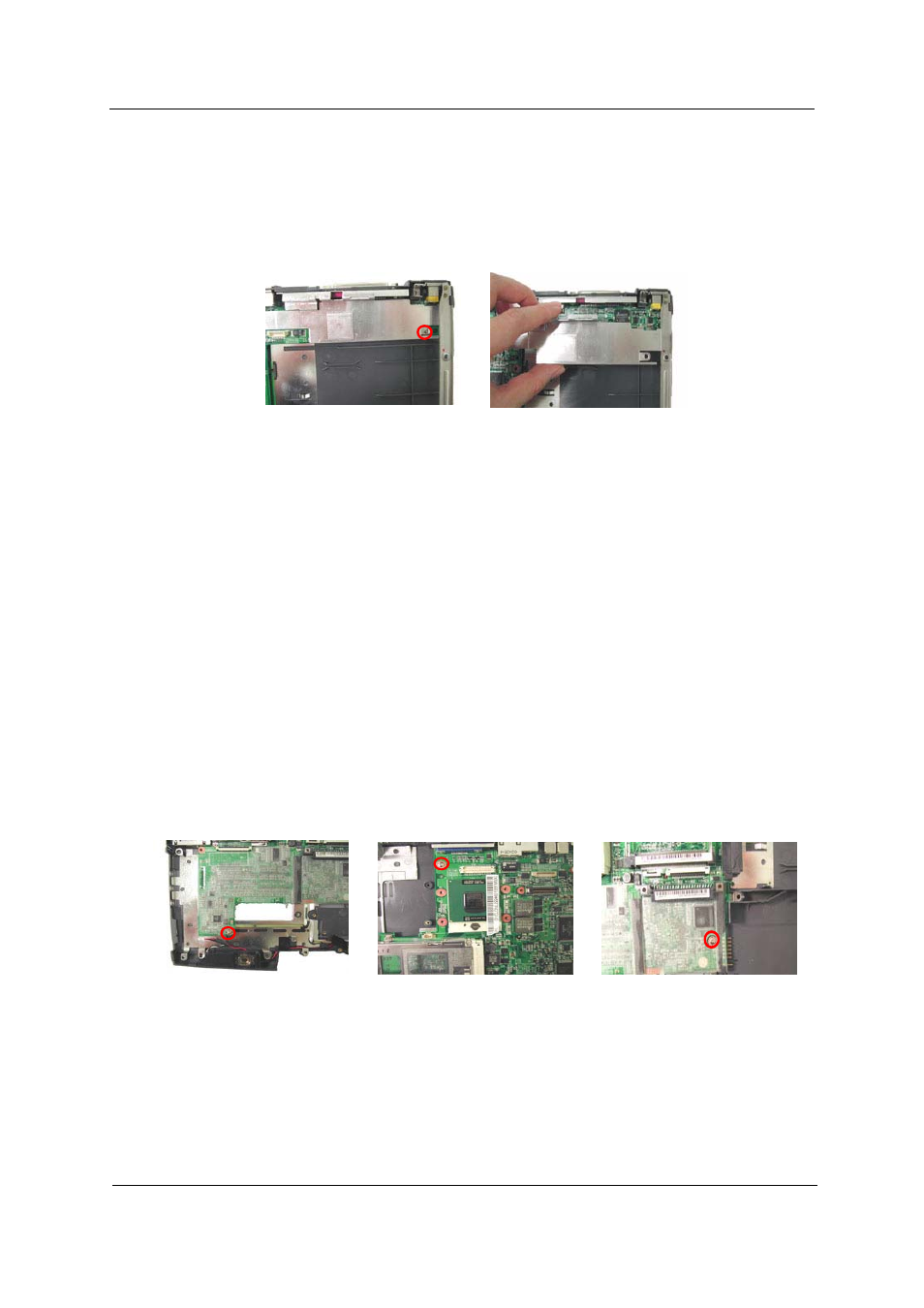

10. To remove the charger plate, first remove the screw from the charger plate, and then remove the charger
plate from the main board.
Removing the Main Board
1. See “Removing the Battery” on page 62
2. See “Removing the Hard Disk Drive Module” on page 63
3. See “Removing the Middle Cover” on page 68
4. See “Removing the Keyboard” on page 69
5. See “Removing the CD-ROM Drive Module” on page 69
6. See “Removing the Heat Plate” on page 70
7. See “Removing the LCD Module” on page 71
8. See “Removing the RTC Battery” on page 79
9. See “Removing the CPU Heat Sink” on page 80
10. See “Removing the Upper Case” on page 81
11. See “Removing the Floppy Disk Drive Module” on page 84
12. See “Removing the Audio Board” on page 85
13. See “Removing the Charger Plate” on page 86
14. Remove the three screws from the main board as shown below.
.
15. Detach the main board from the lower case carefully in the way as shown here.
