70 TravelMate 230/ 280
Disassembling the CD-ROM Drive Module
1. See “Removing the Battery” on page 62
2. See “Removing the Middle Cover” on page 68
3. See “Removing the Keyboard” on page 69
4. See “Removing the CD-ROM Drive Module” on page 69

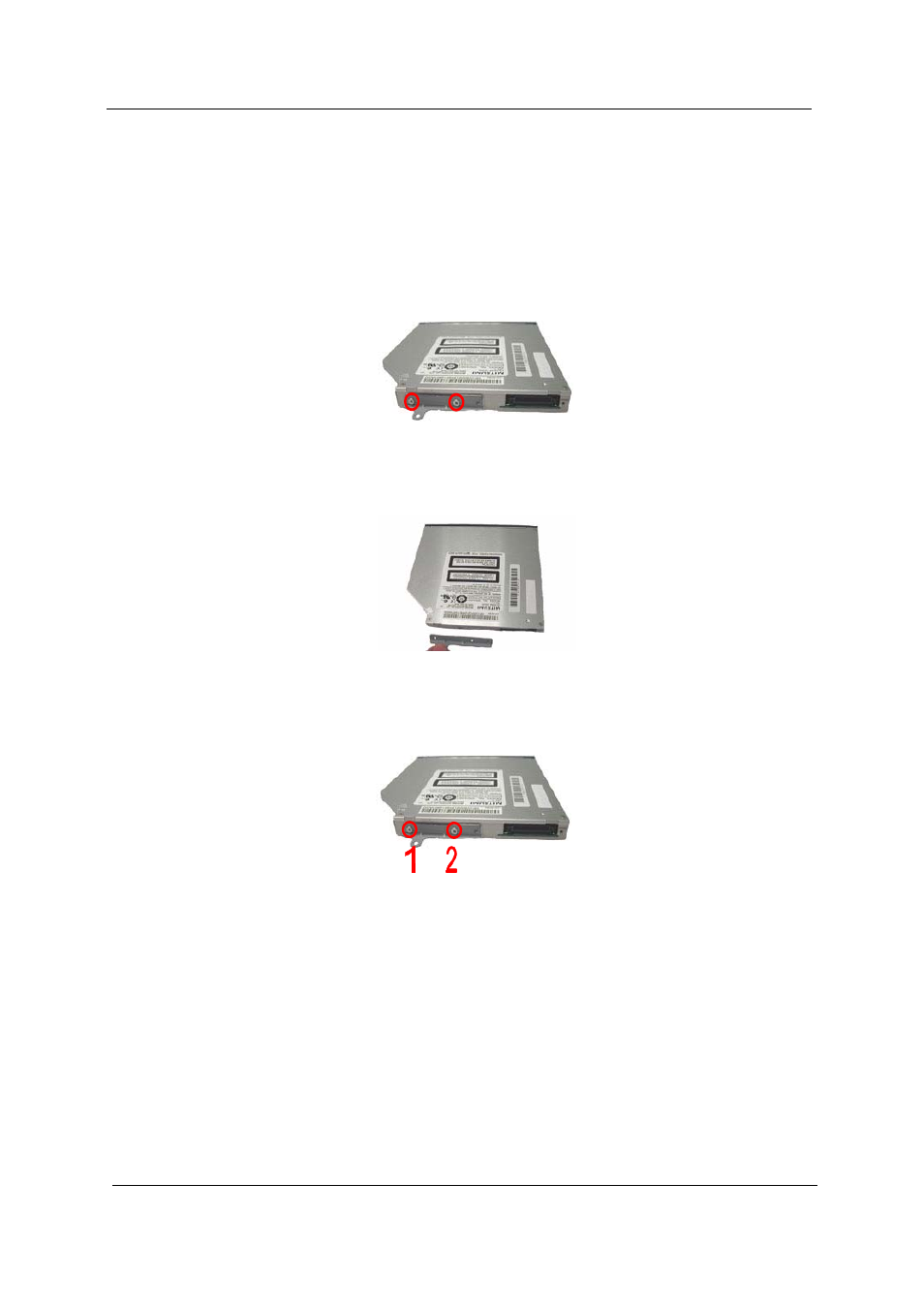

5. To disassemble the CD-ROM drive module, first remove two screws as shown.
6. Remove the CD-ROM drive bracket from the CD-ROM drive module.
NOTE: Please follow the numeric orders such as 1, 2, 3, and 4 to screw the CD-ROM drive bracket to the CD-
ROM drive module. It is suggested that you reverse the sequence when you remove the screws.
Removing the Heat Plate
1. See “Removing the Battery” on page 62
2. See “Removing the Middle Cover” on page 68
3. See “Removing the Keyboard” on page 69
4. Remove the three screws as shown and then detach the heat plate from the main unit.
