Page 119: Jumper and connector locations
Chapter 5
111

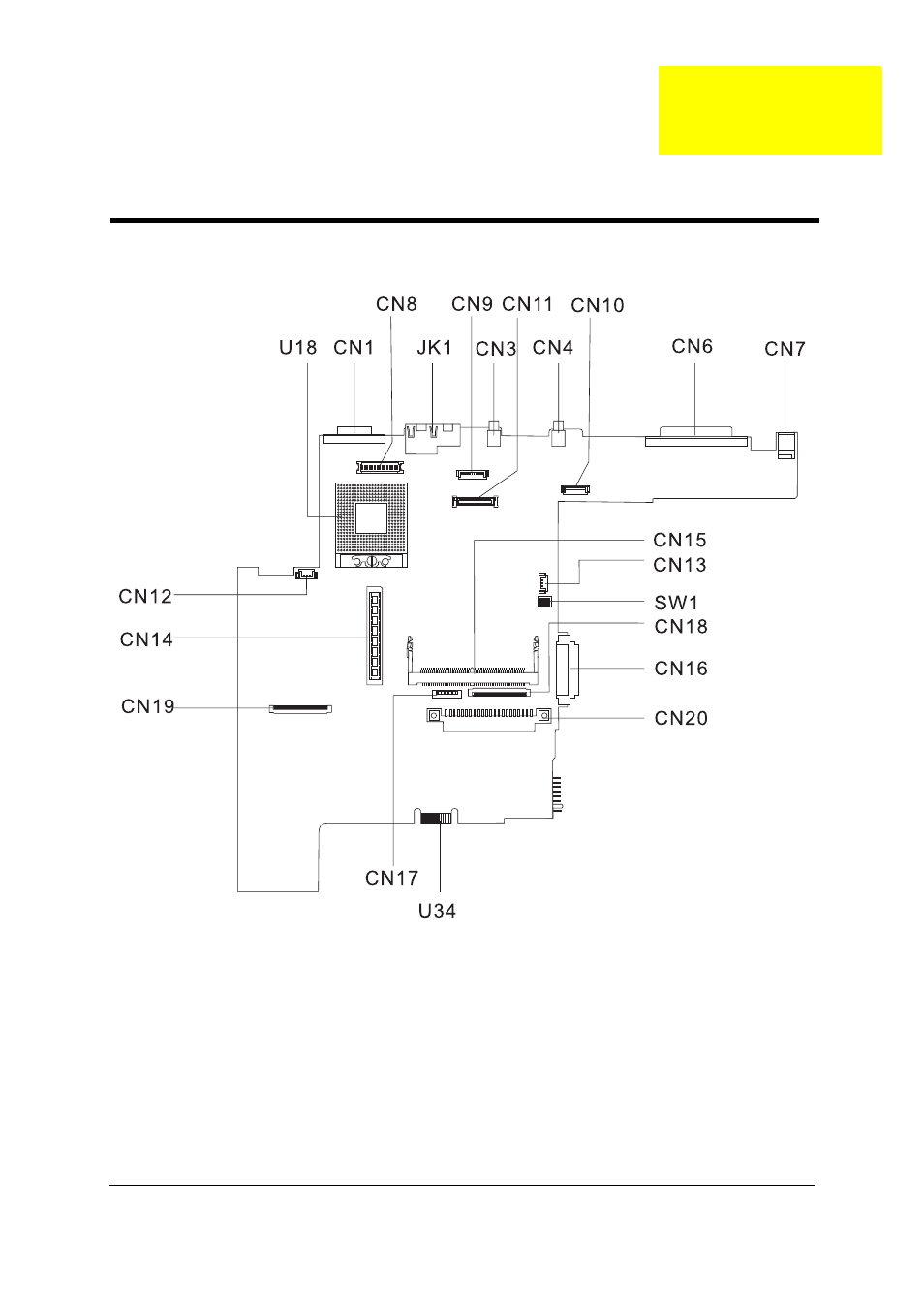

Top View
PCB No. 02217-SB
CN1
CRT Port
CN14
CardBus Connector
CN3
USB Port 0
CN15
Mini-PCI Connector
CN4
USB Port 1
CN16
CD-ROM Connector
CN6
Parallel Port
CN17
Touch Pad Cable Connector
CN7
DC-in Port
CN18
Internal Keyboard Cable Connector
CN8
Inverter Connector
CN19
FDD Connector
CN9
Bluetooth Connector (Dummy)
CN20
HDD Connector
CN10
Launch Cable Connector
JK1
RJ45 + RJ11
Jumper and Connector Locations
Chapter 5
