Chapter 3 75

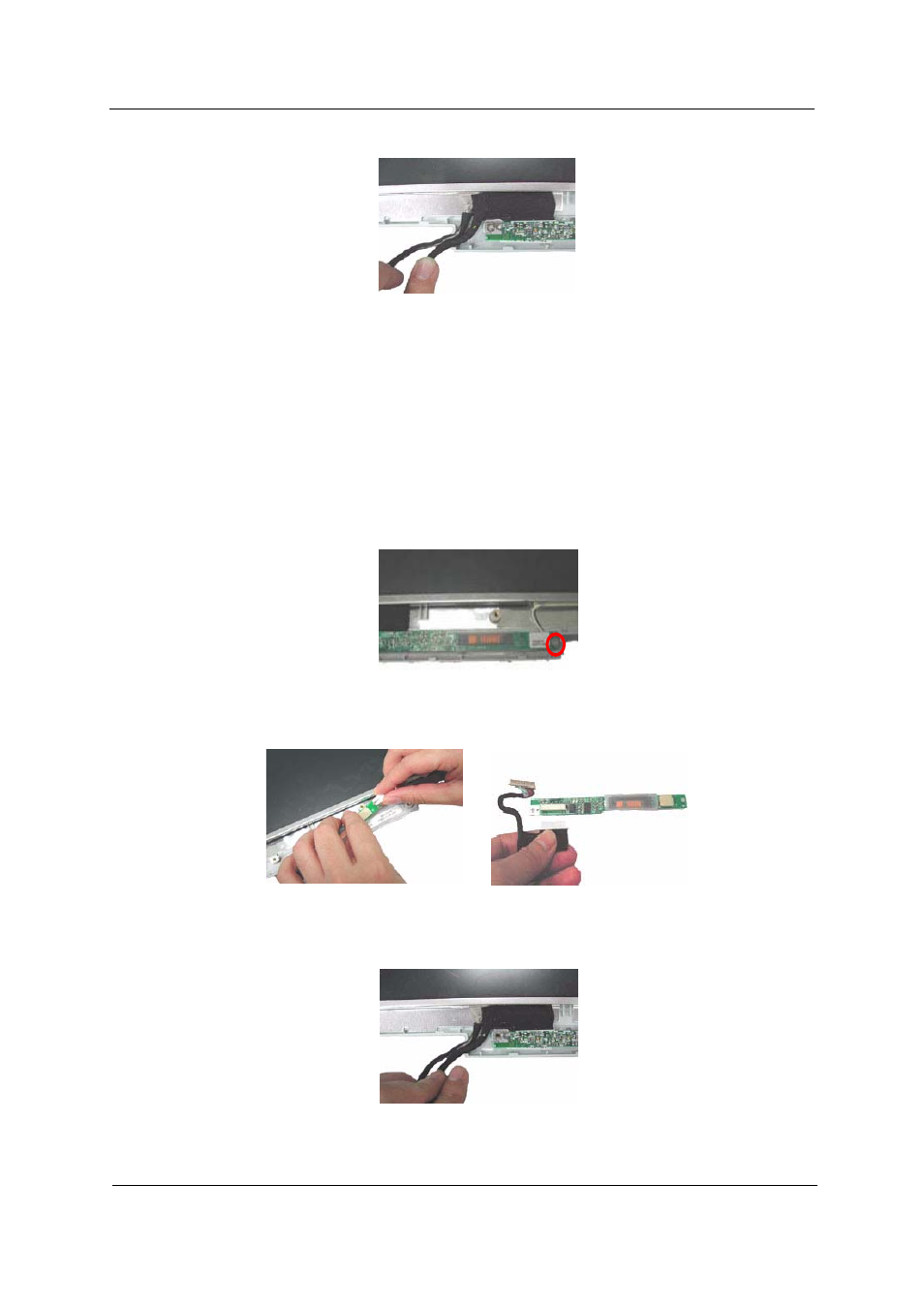

Removing the Inverter Board (15” LCD)
1. See “Removing the Battery” on page 62
2. See “Removing the Middle Cover” on page 68
3. See “Removing the Keyboard” on page 69
4. See “Removing the Heat Plate” on page 70
5. See “Removing the LCD Module” on page 71
6. See “Removing the LCD Bezel” on page 73
7. To remove the inverter board, first remove one screw from the inverter board.
8. Disconnect the LCD power cable and the inverter cable from the inverter board.
NOTE: Please route the cables with the inverter cable placed at the right side of the coaxial cable as shown
below before you attach the inverter board to the LCD panel.
