84 TravelMate 230/ 280

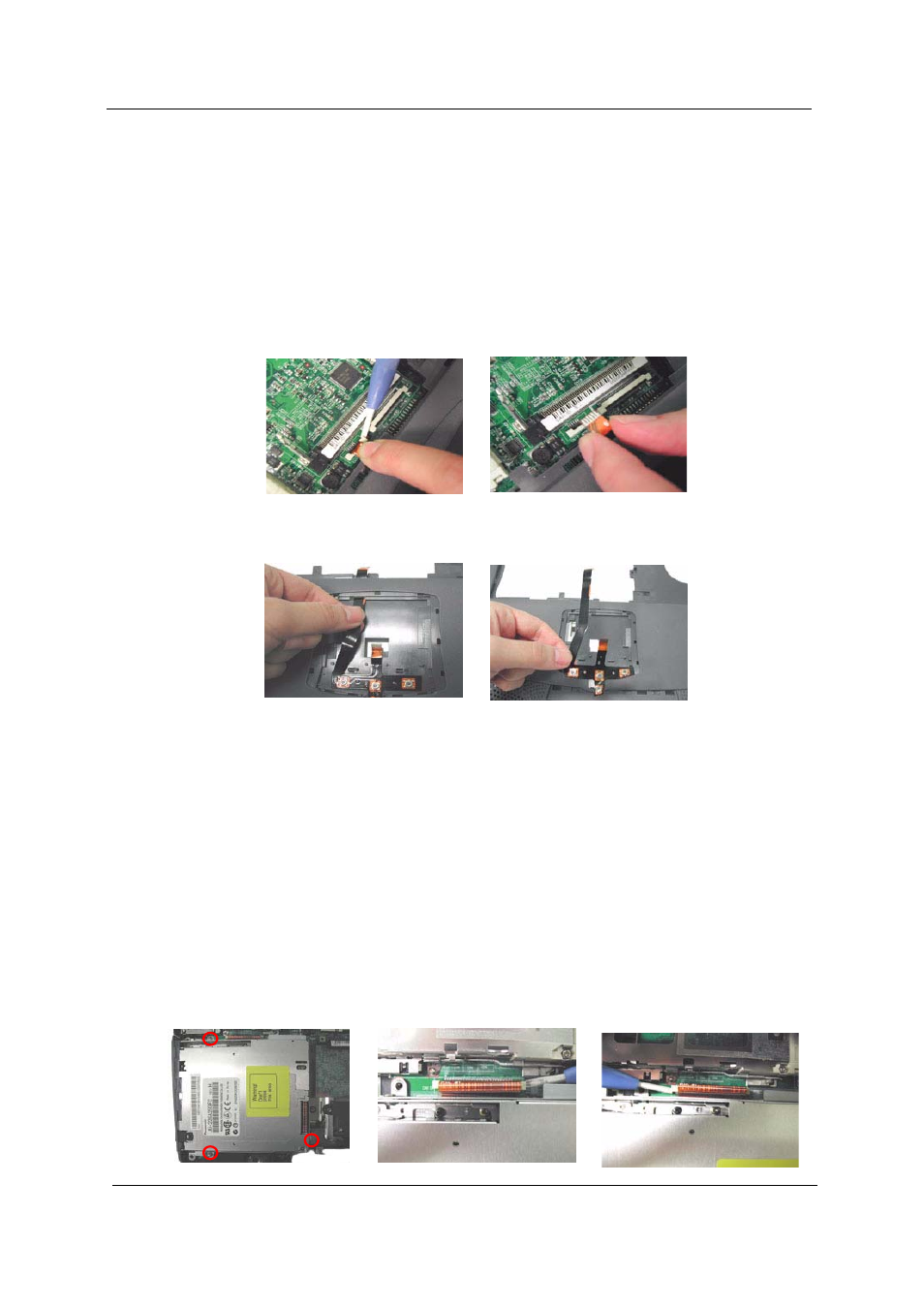

Removing the Touch Pad Cable
1. See “Removing the Battery” on page 62
2. See “Removing the Touch Pad Frame” on page 79
3. See “Removing the Upper Case” on page 81
4. See “Removing the Touch Pad Board” on page 83
5. See “Removing the Touch Pad Button” on page 83
6. See “Removing the Touch Pad Scroll Key” on page 83
7. Remove the touch pad cable from the main board carefully.
8. Detach the touch pad cable from the upper case carefully.
Removing the Floppy Disk Drive Module
1. See “Removing the Battery” on page 62
2. See “Removing the Hard Disk Drive Module” on page 63
3. See “Removing the Middle Cover” on page 68
4. See “Removing the Keyboard” on page 69
5. See “Removing the CD-ROM Drive Module” on page 69
6. See “Removing the Heat Plate” on page 70
7. See “Removing the LCD Module” on page 71
8. See “Removing the RTC Battery” on page 79
9. See “Removing the Upper Case” on page 81
10. Remove the three screws as shown, and disconnect the FDD cable from the main board.
