IBTracer 4X Protocol Analyzer User’s Manual CATC SW Version 2.2

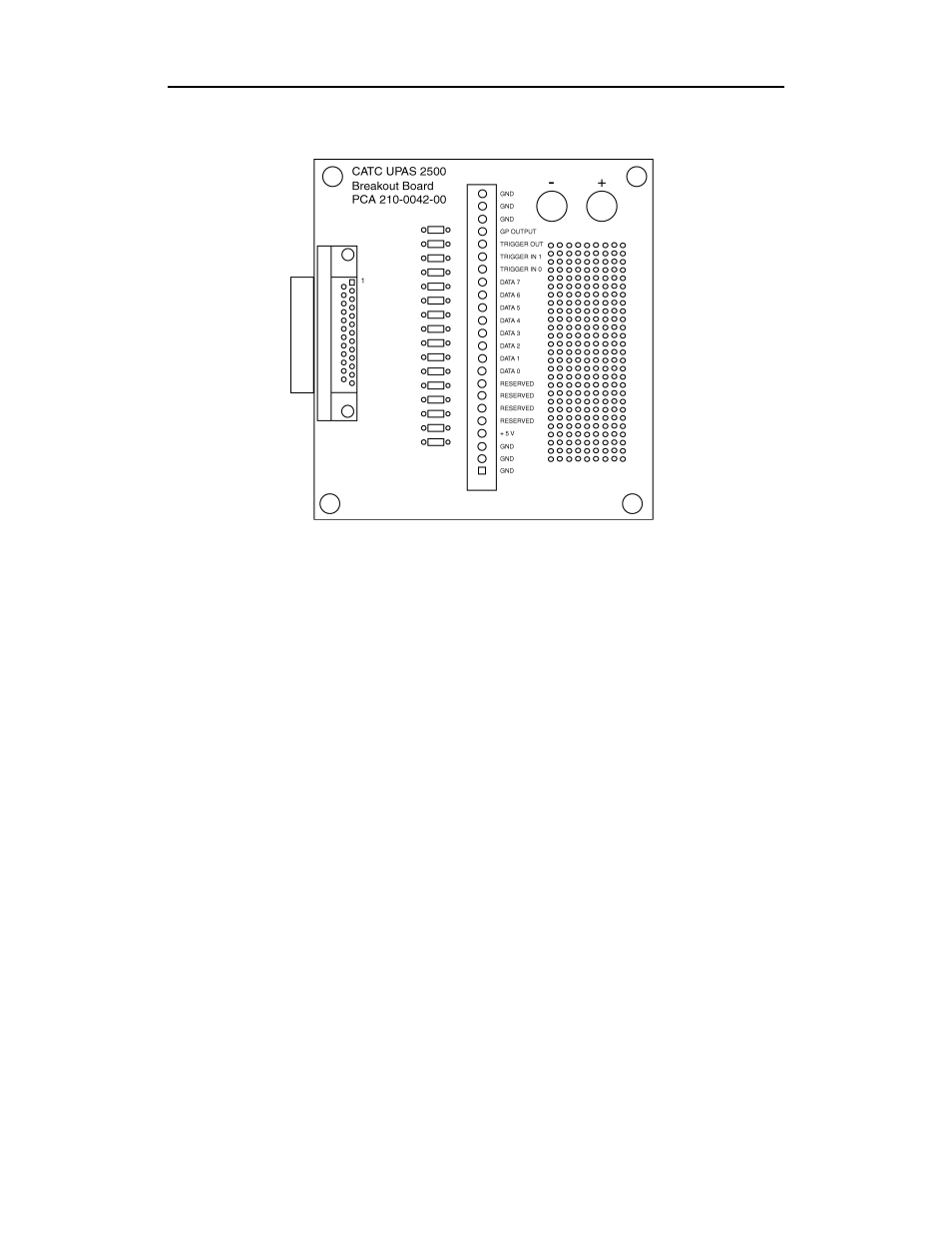

Figure 4: External Interface Breakout Board
Prototype Rework Area
The Breakout Board contains a prototype rework area for making custom
circuits for rapid development. The area consists of plated-through holes, 20
columns wide by 27 rows long. The top row of holes is connected to GND
and the bottom row is connected to +5V. The remaining holes are not
connected. Use the rework area to insert custom components and wire-wrap
their respective signal, power, and ground pins.
3.8 IBTracer Program Installation
The CATC IBTracer software is provided on CD-ROM and requires a
Windows 98SE, Windows 2000, Windows ME, or Windows XP operating
system.
Note
The USBTracer program can be installed on any Windows 98SE
or later operating system (including NT 4.0) as a "Trace
Viewer." That is, it may be used to view, analyze, and print data
that was collected and saved on another system even if it does
not have an Analyzer attached.
Loading the USBTracer USB Drivers
Step 1 Insert the USBTracer program CD-ROM into your PC.
