Teledyne LeCroy Analyzer Settings
52 SierraNet M168 User Manual

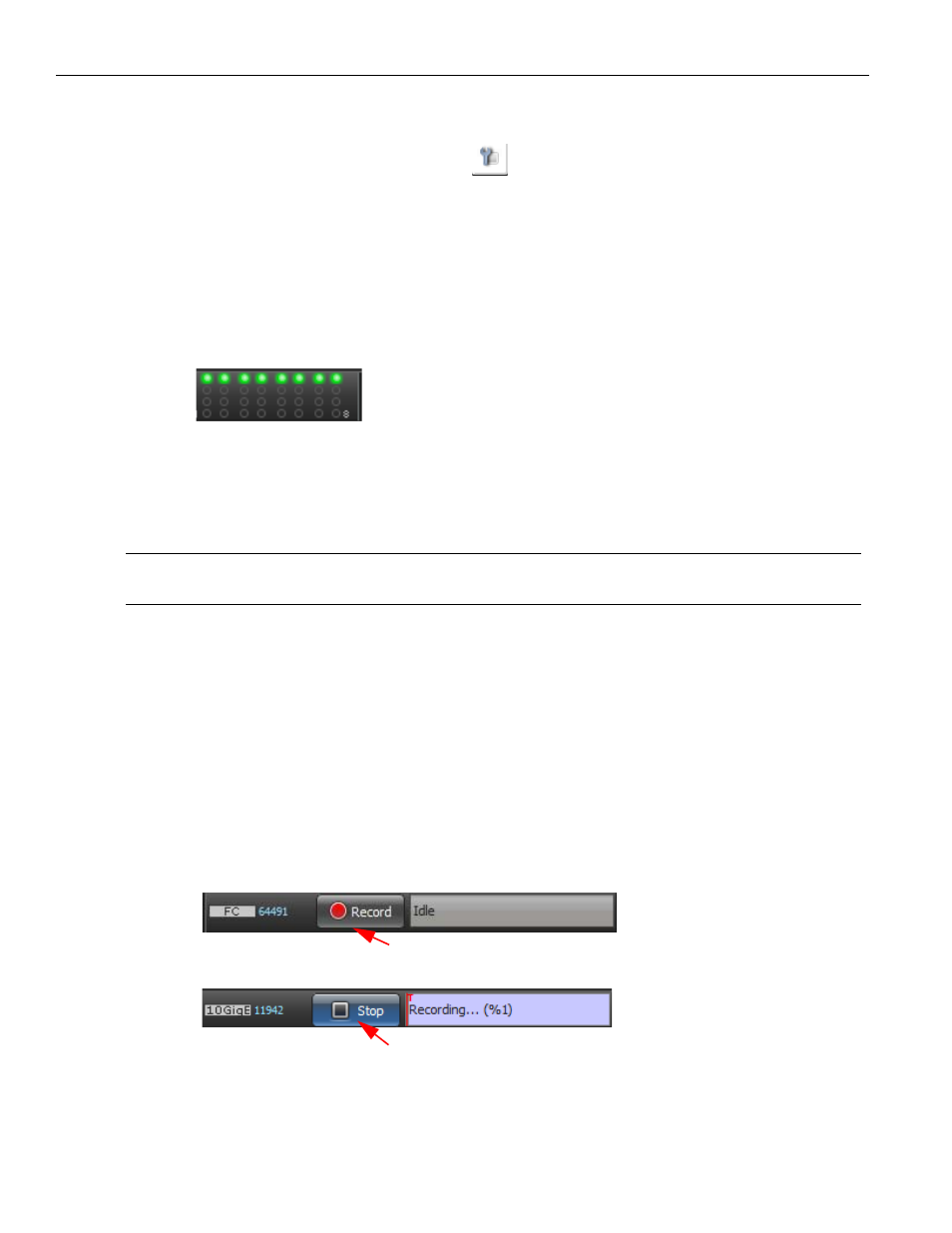

Device Settings
Click the Device External trig setting icon to configure the Probe Calibration and the
External Trigger settings for each device. See “Probe Calibration” on page 68 and
“External Trigger” on page 81 for more information.
2.5.2 Port Status Pane
The Port Status panel displays the Port, Speed, and Functions (Trigger, Link, Frame and
Error). Right‐click the pane and select the Reset button to reset the ports.
Figure 2.22: Port Status Pane
Figure 2.23: Session Controller Pane
Channel Enable 
Check the relevant ports to enable them.
Note: If a Port ID check box has no check, the analyzer does not capture any patterns for that port. The
system allocates trace memory for that port to its adjacent port, for example: P1 <‐> P2.
Speed
The default speed is Autospeed. You can also select the port speed (from the front panel
connectors of the Analyzer) of 10G using the SFP+ Ports P1 through P4 and P5 through
P8.
Analyzer Settings in Ports
You can enable the ports, set the port speed.
2.5.3 Session Control Pane
Use the Session Control pane to run and stop a capture. You can also set the idle.
Figure 2.24: Session Controller Pane
Start/Stop Session Button before recording is started
Start/Stop Session Button after recording is started
