SierraNet M168 User Manual
113
Trigger and Filter Settings in Easy Mode
Teledyne LeCroy
Basic Patterns
Connect/Disconnect
Double‐click Connect/Disconnect to open the Connect/Disconnect dialog.

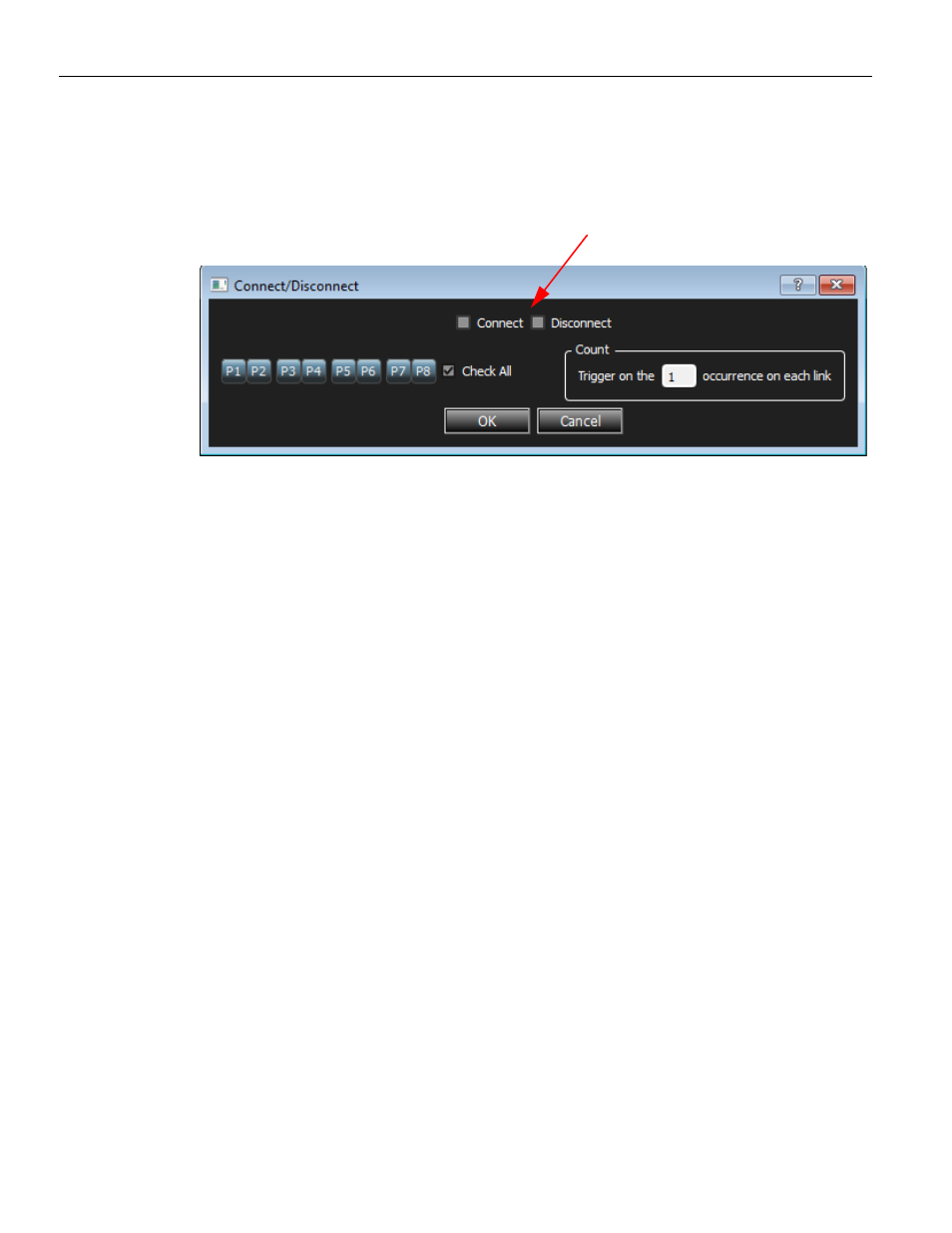

Figure 2.76: Connect/Disconnect Dialog
Select Connect/Disconnect and the count of the expected number of occurrences. Check
the Check All box to select ports P1 through P8 or individually select ports.
