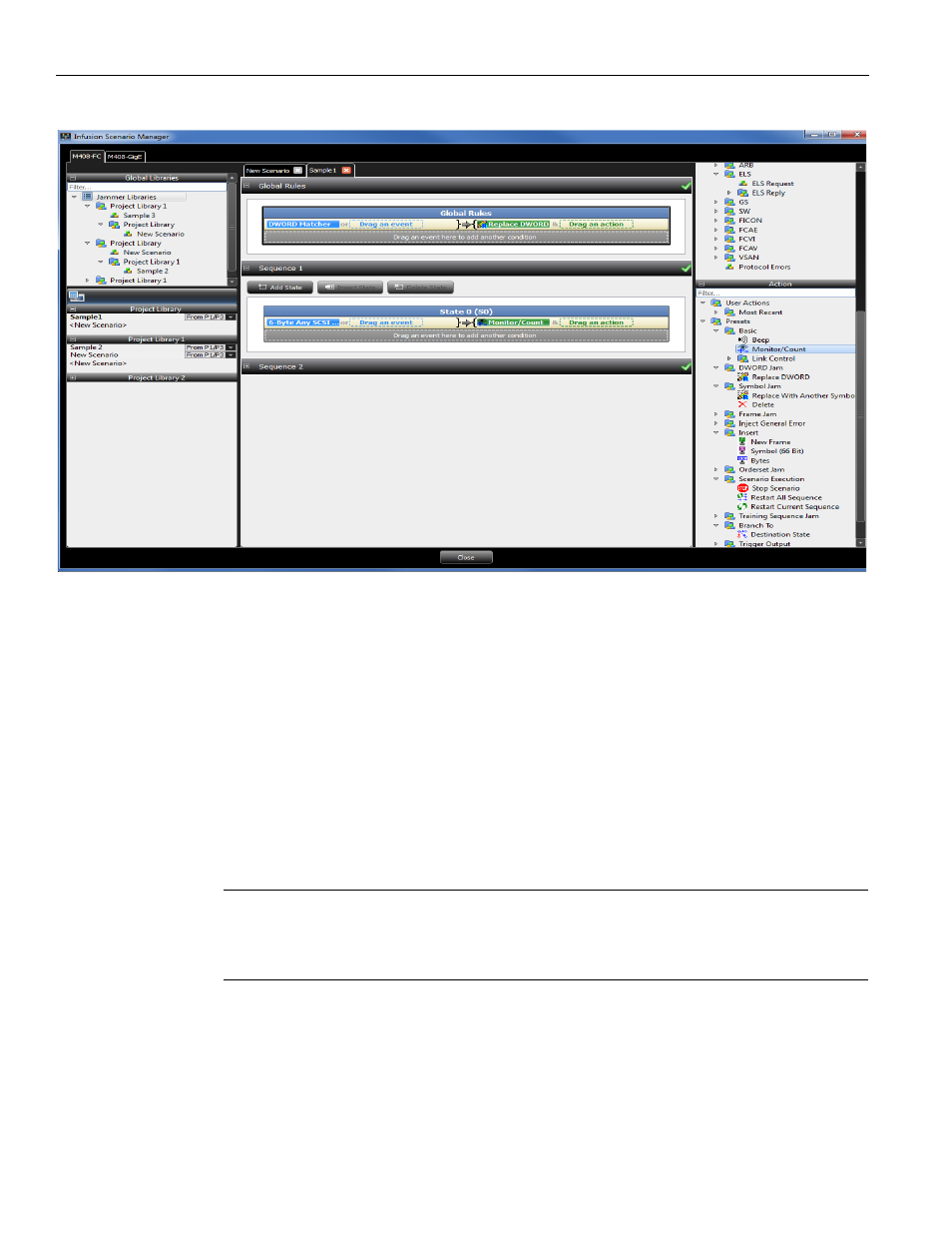

Figure 4.21: Complete Scenario of Insert DWORD Matcher
4.6.2 Sequence Creation
A sequence can have multiple states, but only one state is active at any time. In other
words, at any point in time, a sequence “waits” for one Event (or Combined Event) and
responds with the corresponding Action or set of Actions when the Event occurs.
A sequence is more powerful than Global Rules, because you can create branching or
looping test logic with a sequence.You can include up to two sequences in a Scenario, but
each is completely independent of the other. There is no branching or other interaction
between the two, except through the Restart All Sequences Action.
You must follow some simple rules when creating sequences:
TABLE 4.6: Sequence Rules
You can use only two branch Actions per state.
When you specify Actions for a state, you can only use two instances of Branch to an
Existing State or Branch to a New State. If you try to use more than two, a red error
message appears in the status area of the application that says “Too Many Actions.”
You can use only one restart sequence Action per state.
When you specify Actions for a state, you can only use one instance of Restart
Current Sequence or Restart All Sequences. If you try to use more than one, a red
error message appears in the status area of the application that says “Too Many
Actions.”
