Protocol - Sets the protocol for the ports used to connect the IUT to the host
PC. There are three choices:
UART
RS232
Bluecore - a special HCI transport
Edit
The Edit button reopens the Add HCI Configurations dialog box so you
can edit your settings. Be sure to select an entry in the HCI Configurations
list before clicking Edit.
Delete
The Delete button allows entries to be deleted from the Configurations List.
6.7 Recording HCI Traffic
To record HCI traffic from an IUT, enter data in the HCI window.
Step 1
In Recording Options, go to the HCI page, and click Add.

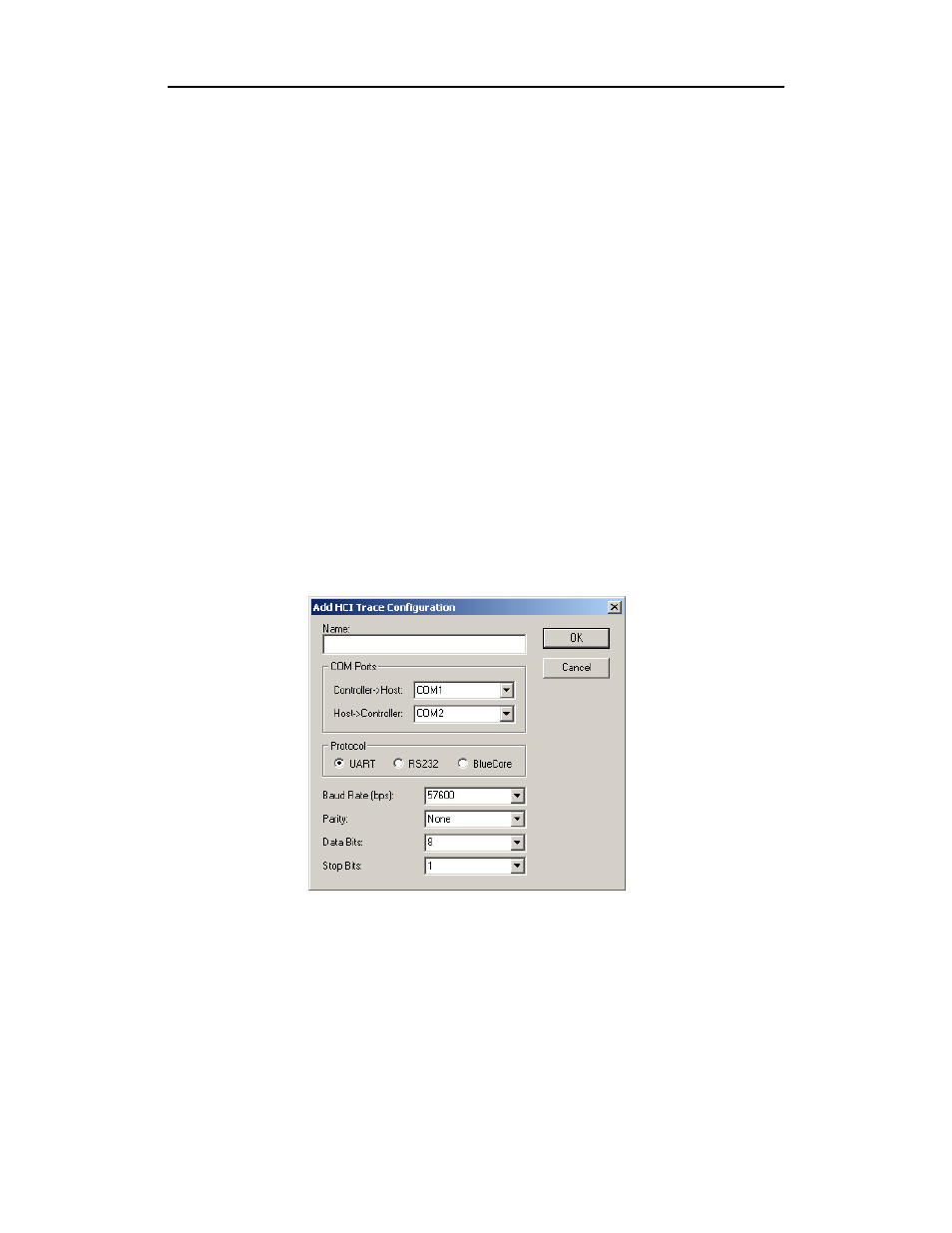

The Add HCI Trace Configuration dialog appears.
Step 2
Enter the pertinent data in the data fields, and click OK. The
HCI configuration is shown in the HCI page of Recording
