BTTracer Protocol Analyzer User’s Manual CATC SW Version 2.0

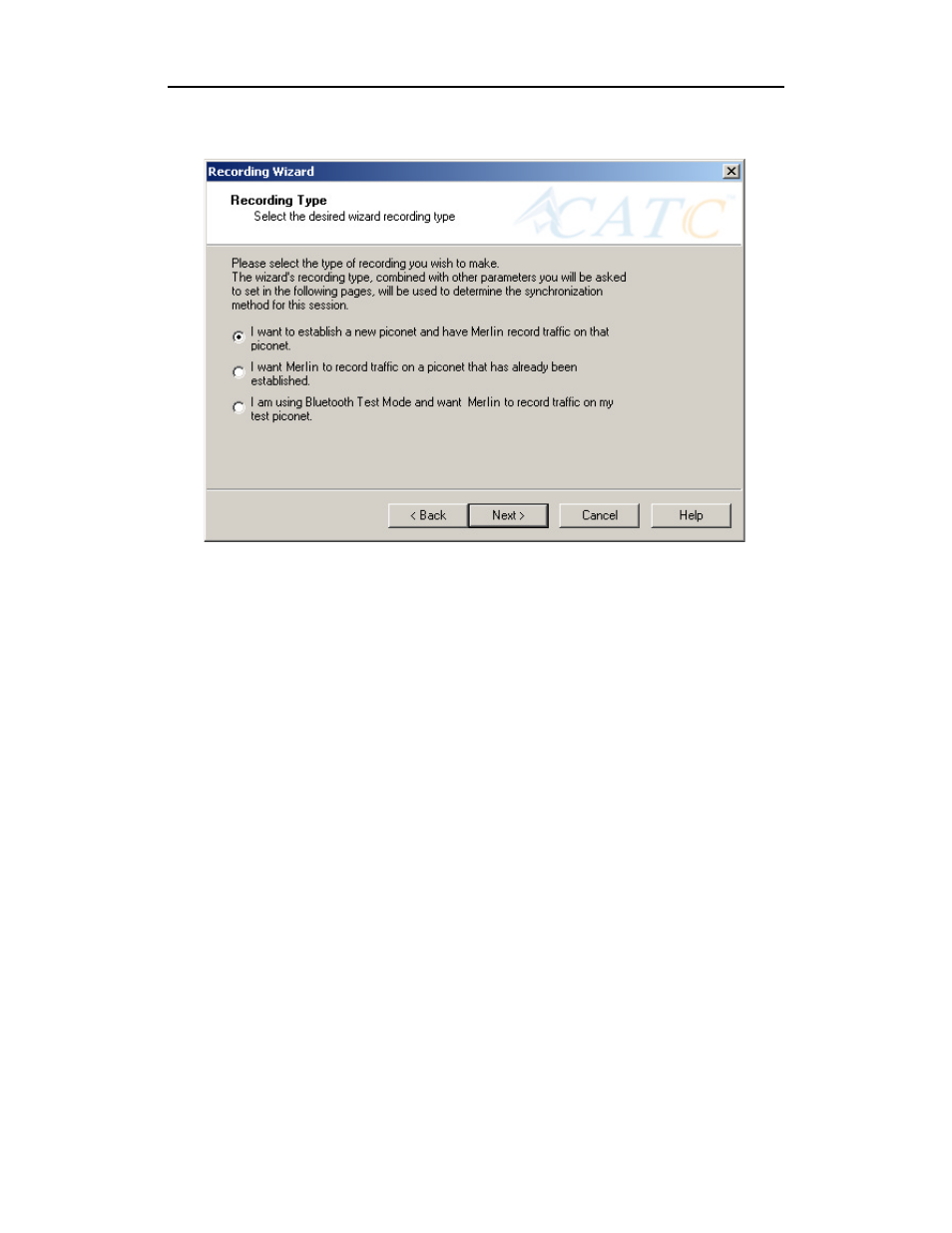

The Wizard advances to the next screen which presents three options:
• I want to establish a new piconet and have Merlin record traffic on that
piconet.
This option causes Merlin to perform an Inquiry so it can discover local
devices and then establish a new piconet and record the piconet traffic.
• I want Merlin to record traffic on a piconet that has already been
established.
This option lets Merlin record traffic from an already established piconet.
• I am using Bluetooth Test Mode and want Merlin to record traffic on my
test piconet.
This option lets Merlin create either a single frequency range recording
of a range that you specify or create a recording of a limited hop
frequency range consisting of 5 frequency hops.
5.1 Recording a Traffic on a New Piconet
The New Piconet option shown in the previous screen presents users with
the means of recording the traffic from a new piconet. This option will
cause a sequence of screens to prompt you for information such as the
piconet Master address.
