101
Merlin Protocol Analyzer User’s Manual CATC SW Version 2.0

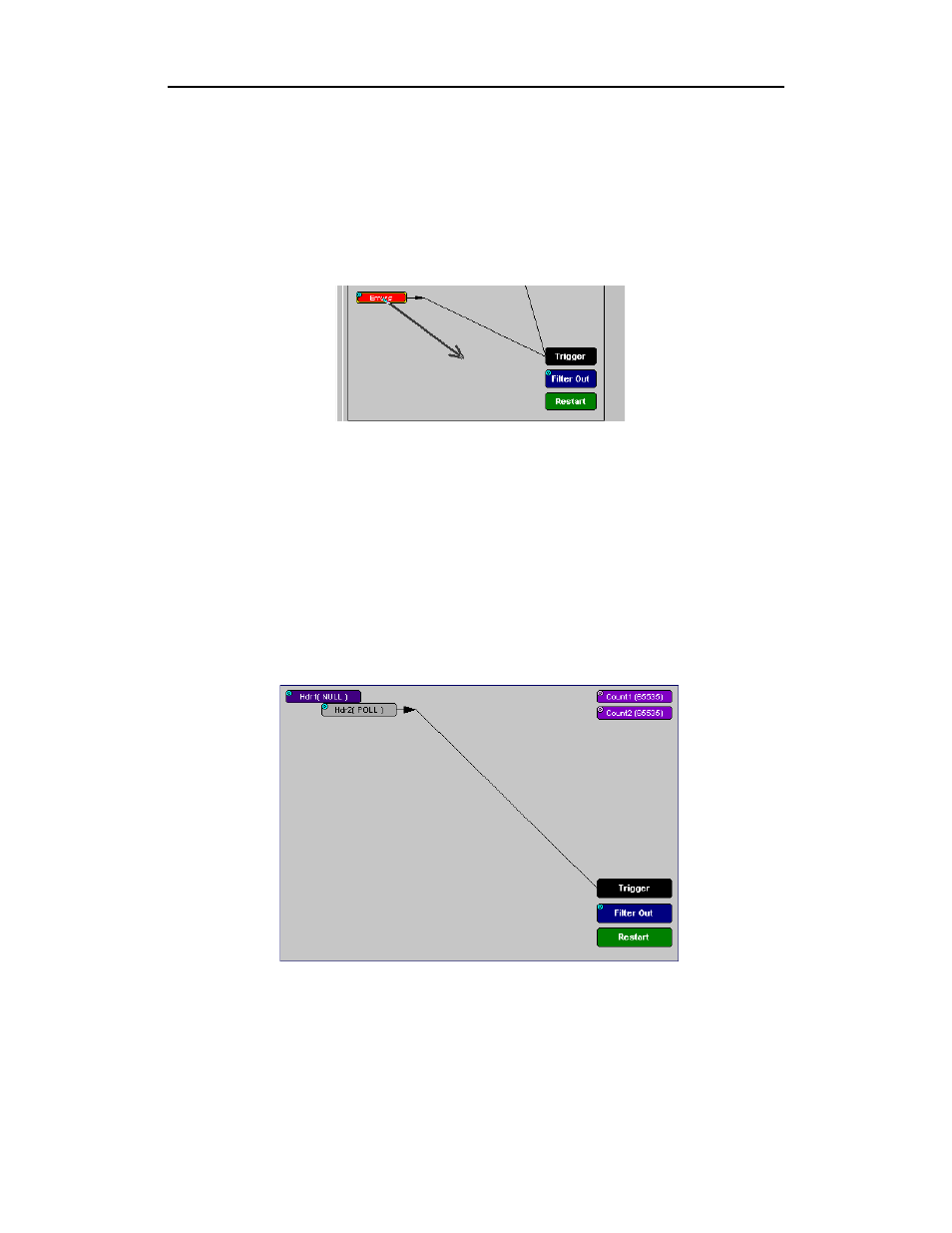

Elastic Arrow
Elastic arrows allow you to associate Events, Counters, and Actions. To
make an association,
Step 1
Click the left mouse button on an Event button such as Hdr1
or Errors.
The elastic arrow appears.
Step 2
Drag the arrow to the desired Action button.
Step 3
With the pointer over an Actions button, click again the left
mouse button again.
The arrow is replaced with a black line connecting the Event button to
the Action button.
Event Sequencing
If you drag your mouse from one event button to another, you will create a
compound condition known as an Event Sequence. An event sequence is a
condition that says "Trigger when you see the following sequence of
packets." The example below may help to clarify.
This example means "Trigger when you see a packet with an Null Header
followed by a packet with a Poll Header."
To create an event sequence, perform the following steps:
Step 1
Select two events from the Events window
