Inquiry Recording
Merlin can also record an inquiry process where the Merlin performs a
general inquiry and asks local devices to identify themselves.
Step 1
Click the down-arrow on the right side of the
Record:Piconet button on the toolbar
.
A sub-menu appears with options for Piconet Recording Mode, and Inquiry
Recording Mode.
Step 2 Select Inquiry Recording Mode.
The button changes appearance and shows the label Record: Inquiry
Step 3

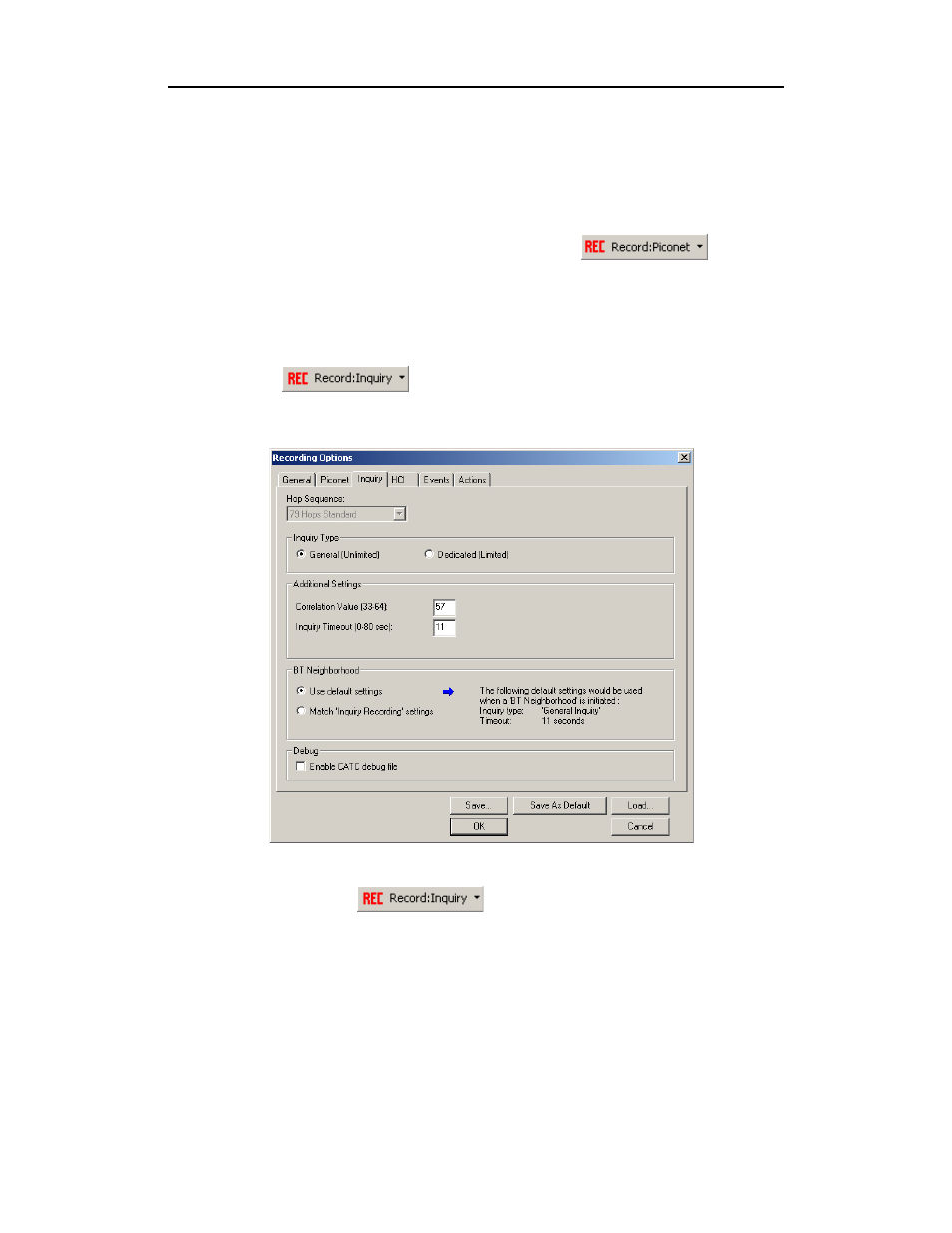

From the menu, select Setup > Recording Options.
The Recording Options dialog opens with the Inquiry page displaying.
Step 4
If desired, make any changes to the options, then click OK.
Step 5 Click the button (i.e. the button itself, and
not the down-arrow.)
Merlin starts to record the Bluetooth traffic immediately using the settings from
the Piconet page in the Recording Options dialog. The Bluetooth Inquiry process
will proceed for whatever amount of time is set for creating an Inquiry action (0
to 80 seconds). After the inquiry time has elapsed, the analyzer will uploads the
data and displays the packets.
