102
Merlin Protocol Analyzer User’s Manual CATC SW Version 2.0

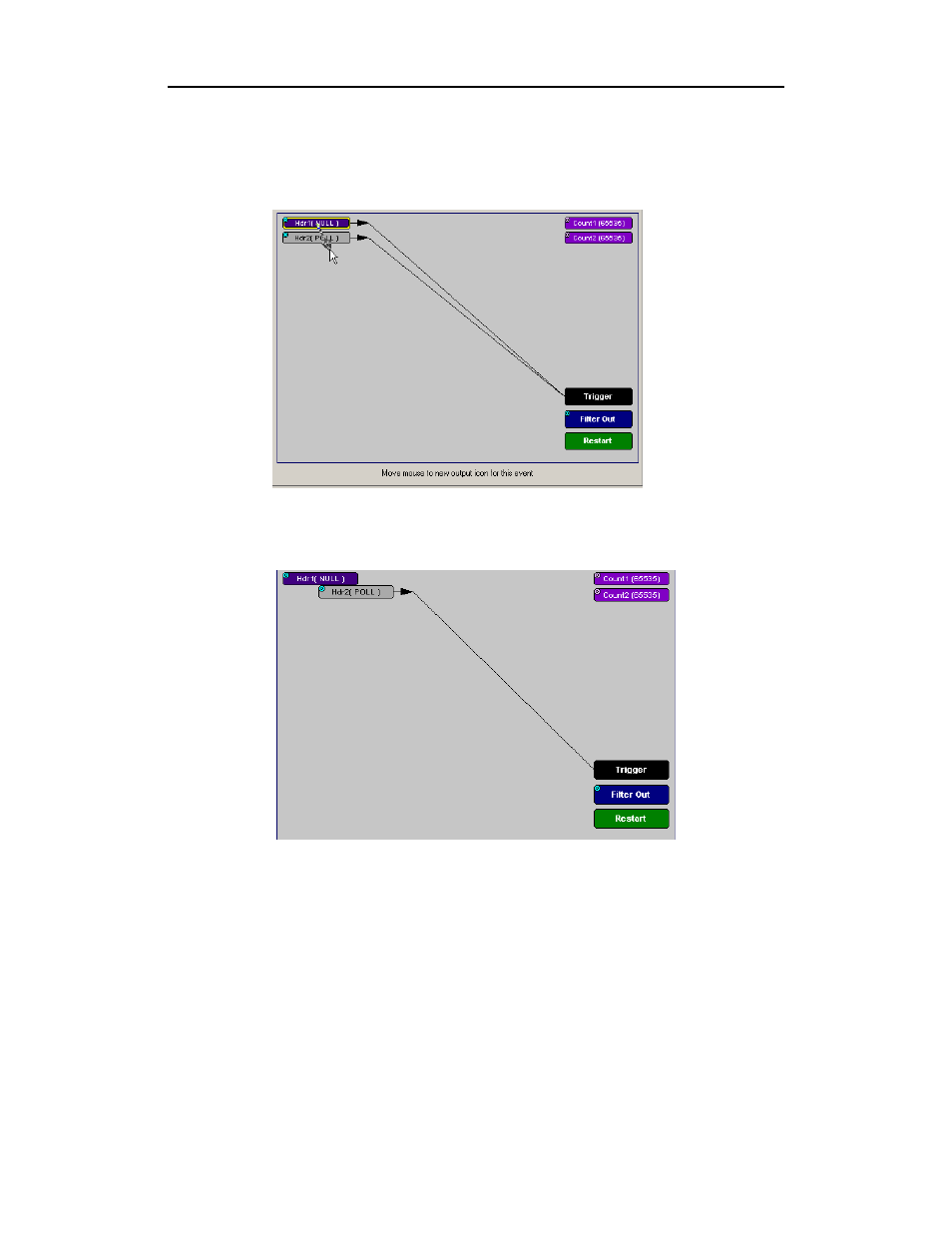

Step 2
Open the Actions window and click on one of the two Event
buttons.
An elastic arrow should appear.
Step 3 Click on the other event.
The arrow should connect to the second button and the second button
should instantly change locations to the center section of the window.
6.10 Saving Recording Options
To complete your Recording Options settings, use the features at the bottom
of the Recording Options screen. These features remain the same no matter
which of the three Recording Options screens you are working in.
• Click Save to save the currently specified Recording Options for
use in future recording sessions. Any file name can be specified,
though use of the .rec is recommended; if no extension is
