WPS-100-DVR-8CH Installation and Users Manual
© 2012 Wirepath Surveillance
9.2.7 PTZ CONTROL PANEL

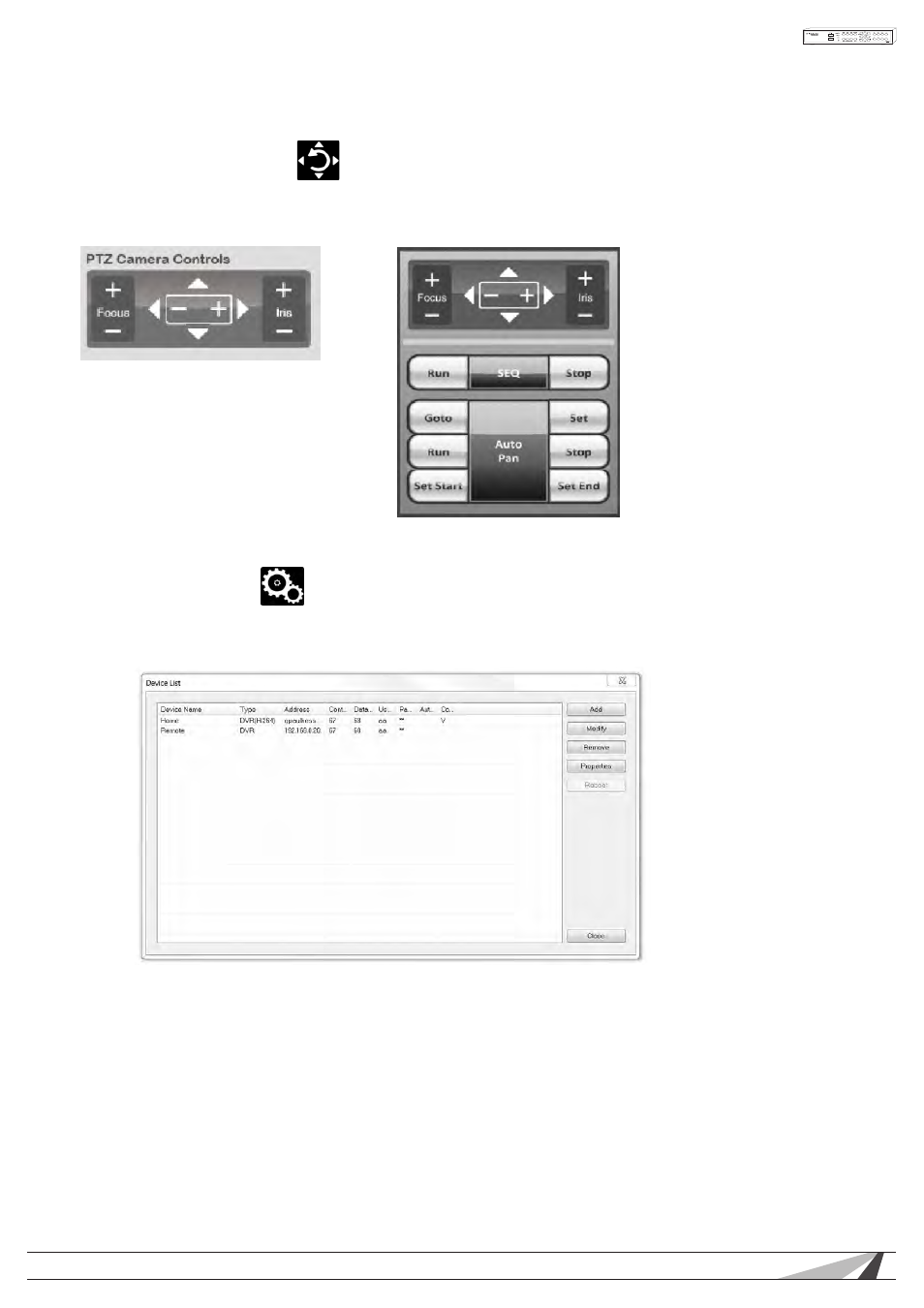

If the camera in the focus window is a Pan/Tilt/Zoom camera, use the buttons on the user interface to operate
basic PTZ features.
For more control, display the PTZ Control
Panel by clicking on the PTZ Panel icon.
Move the panel by clicking and dragging
the panel to the desired location.
To hide the menu, click on the PTZ Panel
icon again.
9.2.8 DEVICE CONFIG
The Internet Explorer user interface has the ability to connect to multiple DVRs. DVRs must first be added to
the Device List.
The following is a brief description for each item in this menu and its specific operations:
• ADD
Add DVRs to the Device List
• MODIFY
Modify the settings of DVRs in the Device List. See Section 9.2.8.1.
• REMOVE
Remove DVRs from the Device List
• PROPERTIES
Adjust the Properties of DVRs in the Device List. See Section 9.3.
• REBOOT
Reboot a DVR in the Device List.
