6. Inspection/Maintenance
(5) Tighten the two cap screws (M4 x 8) [4] to affix the cap.
(6) Tighten the bellows clamp using a Phillips screwdriver.
(7) Turn the cap to confirm that the bellows rotate smoothly.
z Check the marking tubes to prevent improper connections.
z Be careful not to bend the air tubes.
z Be careful not to pinch the cables.
z Place the wires neatly in the upper space without letting them rest on top of one another. Do not
forcibly tighten the screws with the panel still floating.
z Check if the connectors are fully inserted.
z If the cover is removed, absolute reset must be performed again for the rotational axis and vertical
axis. (See 6.4, “Absolute Reset Procedure.”)

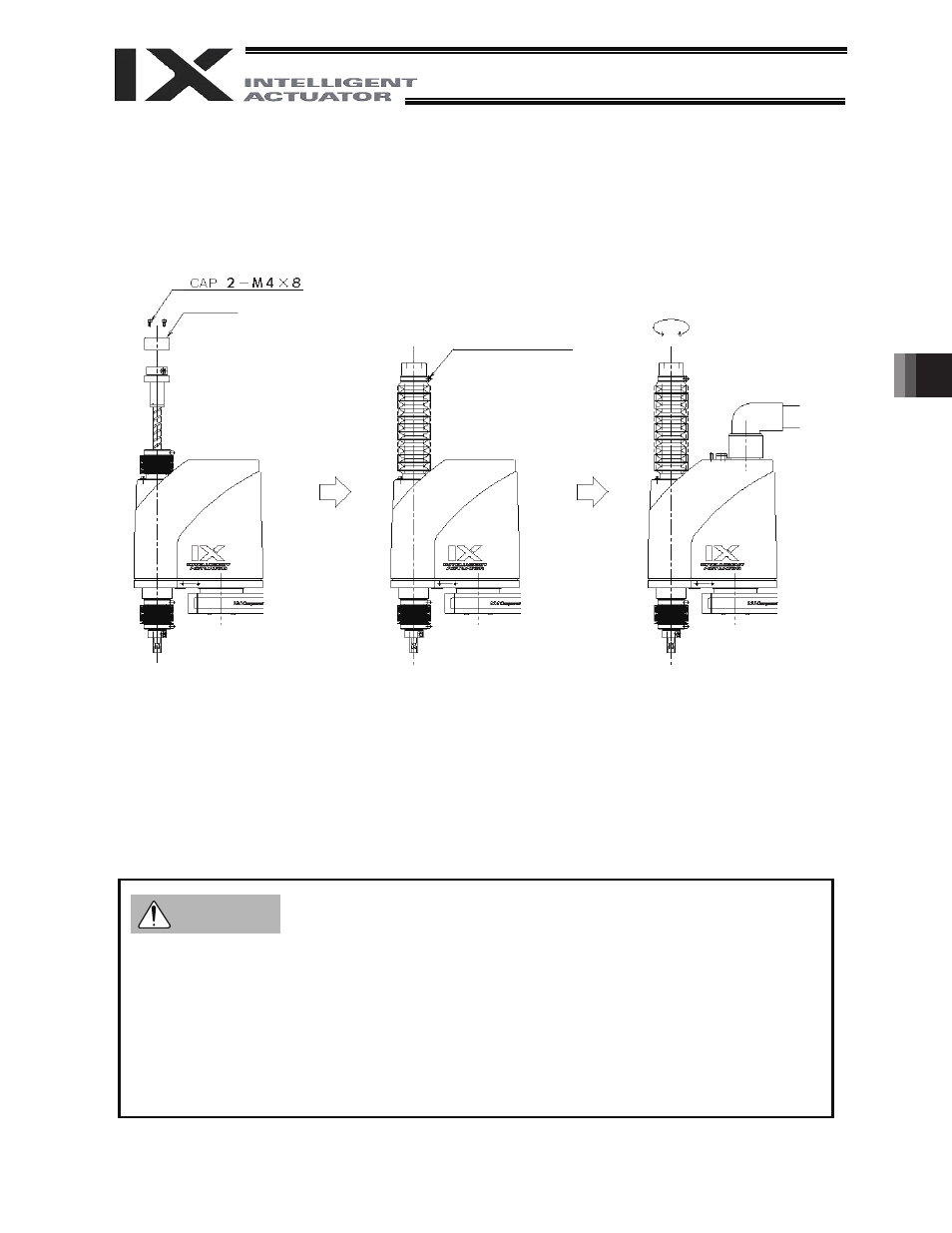

[4]
Phillips screwdriver
Turn the cap to check if the
bellows are not twisted.
Caution
Cap
