30
6. Inspection/Maintenance
6.2.2 Removing the Cover

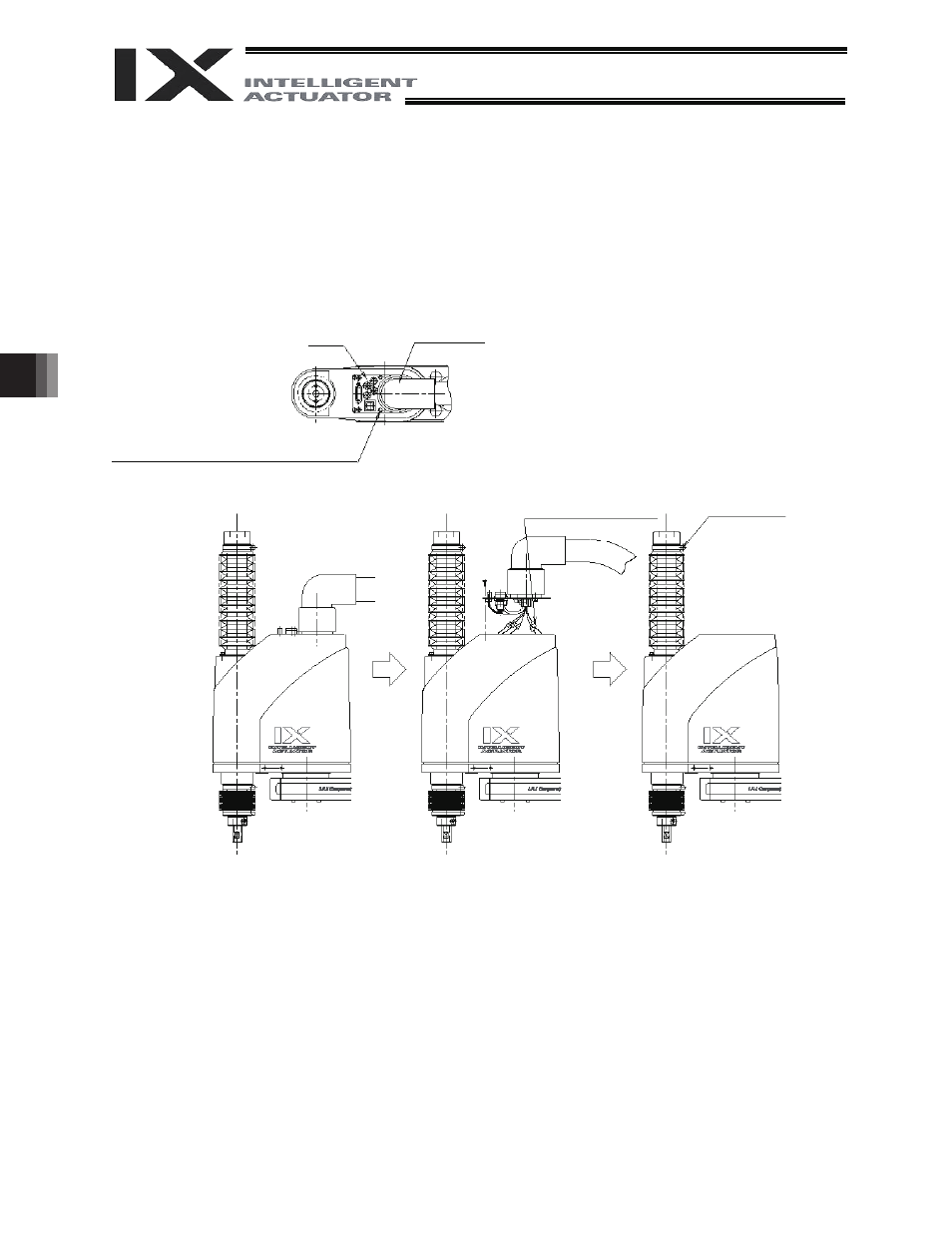

(1) With arms 1 and 2 extended as illustrated below, remove the six countersunk head screws [1].
(2) Lift the panel and remove the connectors (M, PG, BK) from the back of the panel. (Do not cause the
wires to be pulled with excessive force when lifting the panel.)
(3) Next, remove the bellows. Loosen the bellows clamp using a Phillips screwdriver.
Rotary joint
[1] 6 - M3 x 4 (countersunk head screw)
Panel
Remove the connectors
(M, PG, BK). Loosen with a
Phillips screwdriver.
