18
4. How to Install
4.1 Notes on Installation
In the case of the ceiling-mount specification, the robot will move to points above the base installation surface
when the vertical axis (Z-axis) is moved to the top position.
In the case of the inverse specification, the robot will move to points below the base installation surface when the
vertical axis (Z-axis) is moved to the bottom position.
Additionally, when performing an absolute reset, the vertical axis (Z-axis) must be moved to the top position in
the case of the ceiling-mount specification or to the bottom position in the case of the inverse specification
(origin-return operation).
Therefore, install the robot in such a way that the vertical axis will not collide with the ceiling or platform during an
absolute reset.

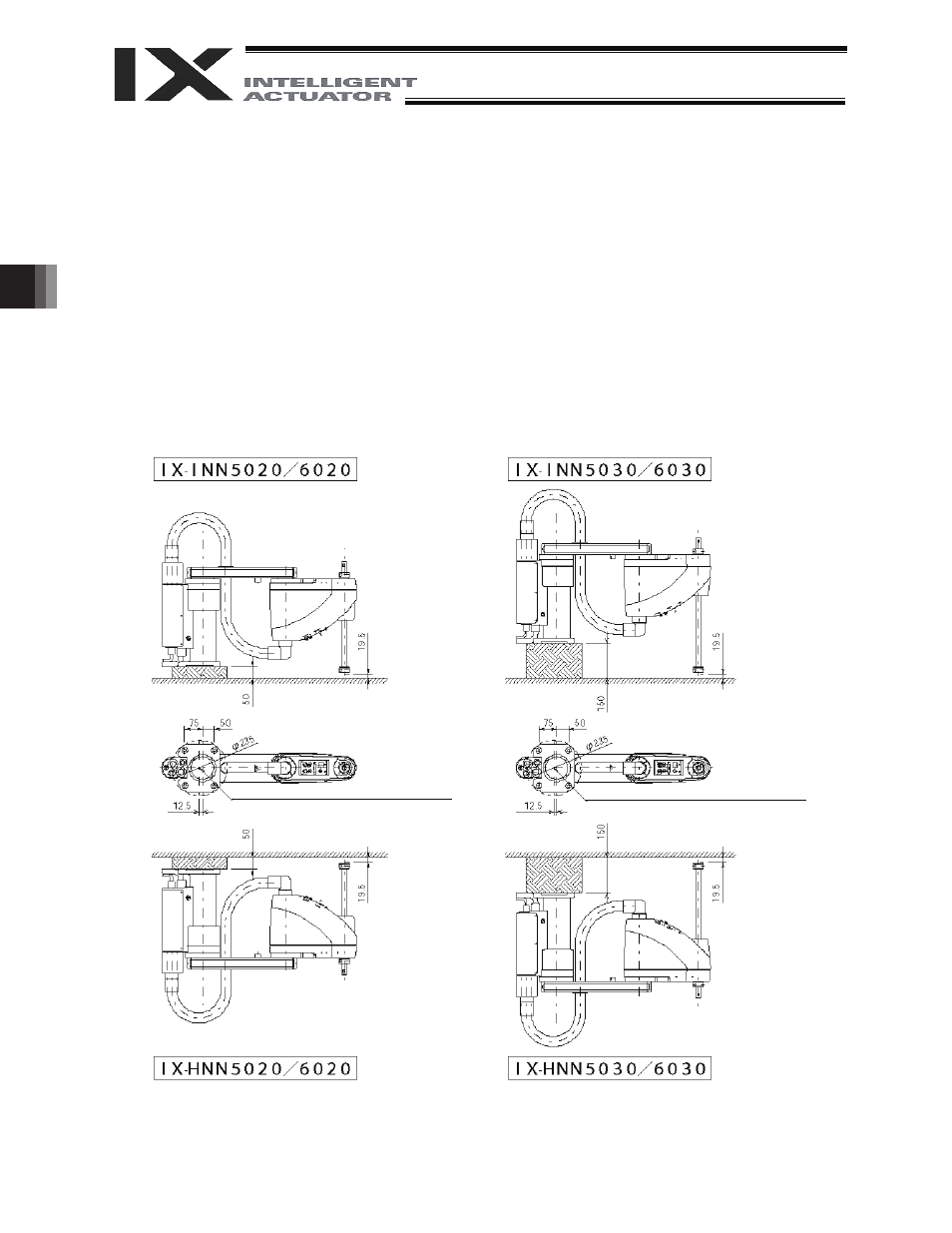

It is recommended that the pedestal be constructed in such a way that contact with the robot will not occur within
the robot’s range of movement (see the figure below). If the pedestal cannot be constructed as shown below, be
sure to reduce the robot’s range of movement using soft-limits and prevent the robot from contacting the
pedestal.
Center of recommended installation part Center of recommended installation part
4.2
