Removing the lcd brackets and fpc cable – Acer 5737Z User Manual
Page 98
88
Chapter 3

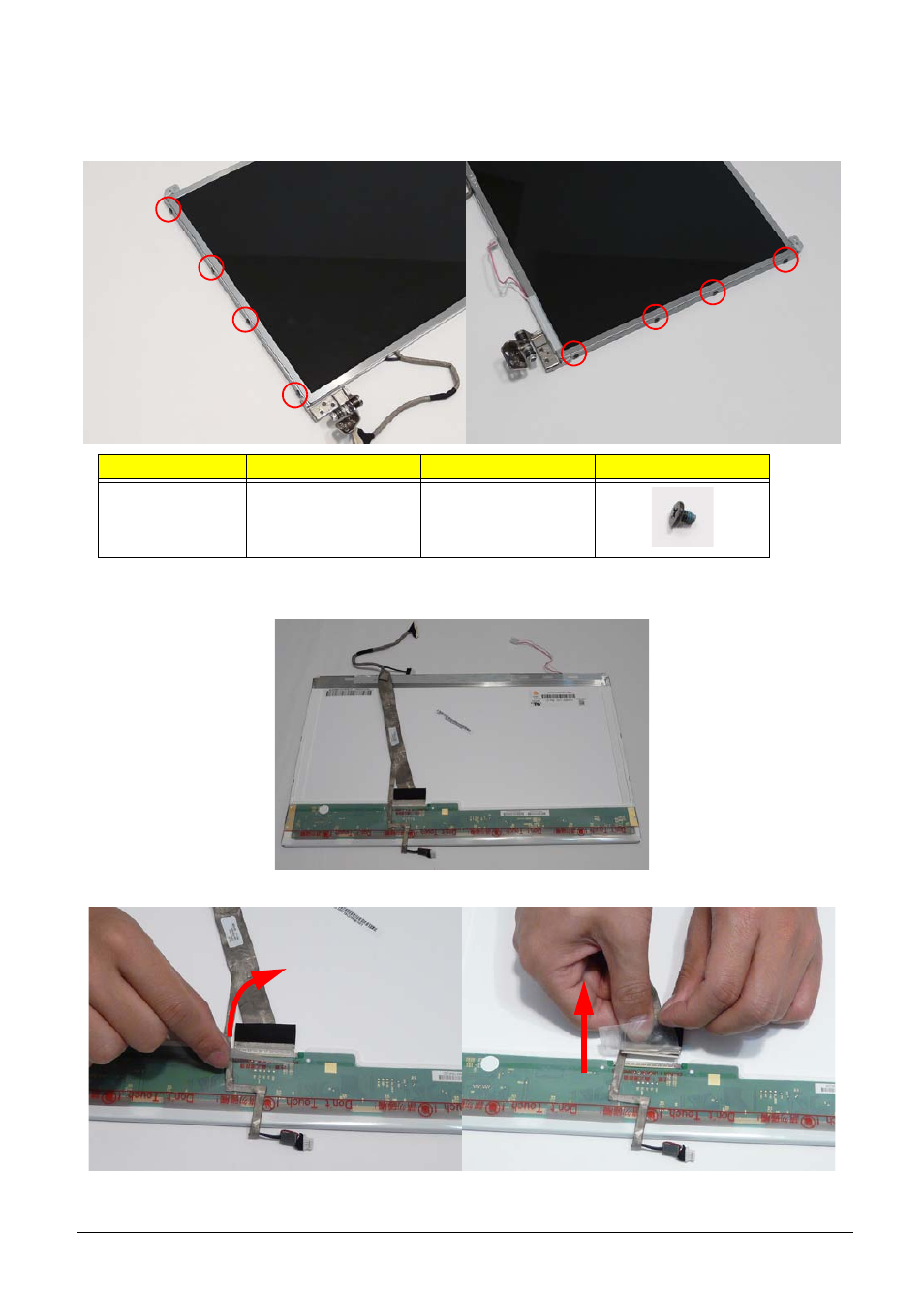

Removing the LCD Brackets and FPC Cable
1. See “Removing the LCD Panel” on page 86.
2. Remove the eight securing screws (four on each side) from the LCD Panel brackets.
3. Remove the LCD brackets by pulling away from the LCD Panel.
4. Turn the LCD panel over to expose the rear.
5. Lift the adhesive protector and disconnect the cable from the LCD Panel.
6. Lift the FPC cable from the panel.
Step
Size
Quantity
Screw Type
LCD Brackets
M2*3
8
