Lcd module reassembly procedure, Replacing the mic and antennas – Acer 5737Z User Manual
Page 101
Chapter 3
91

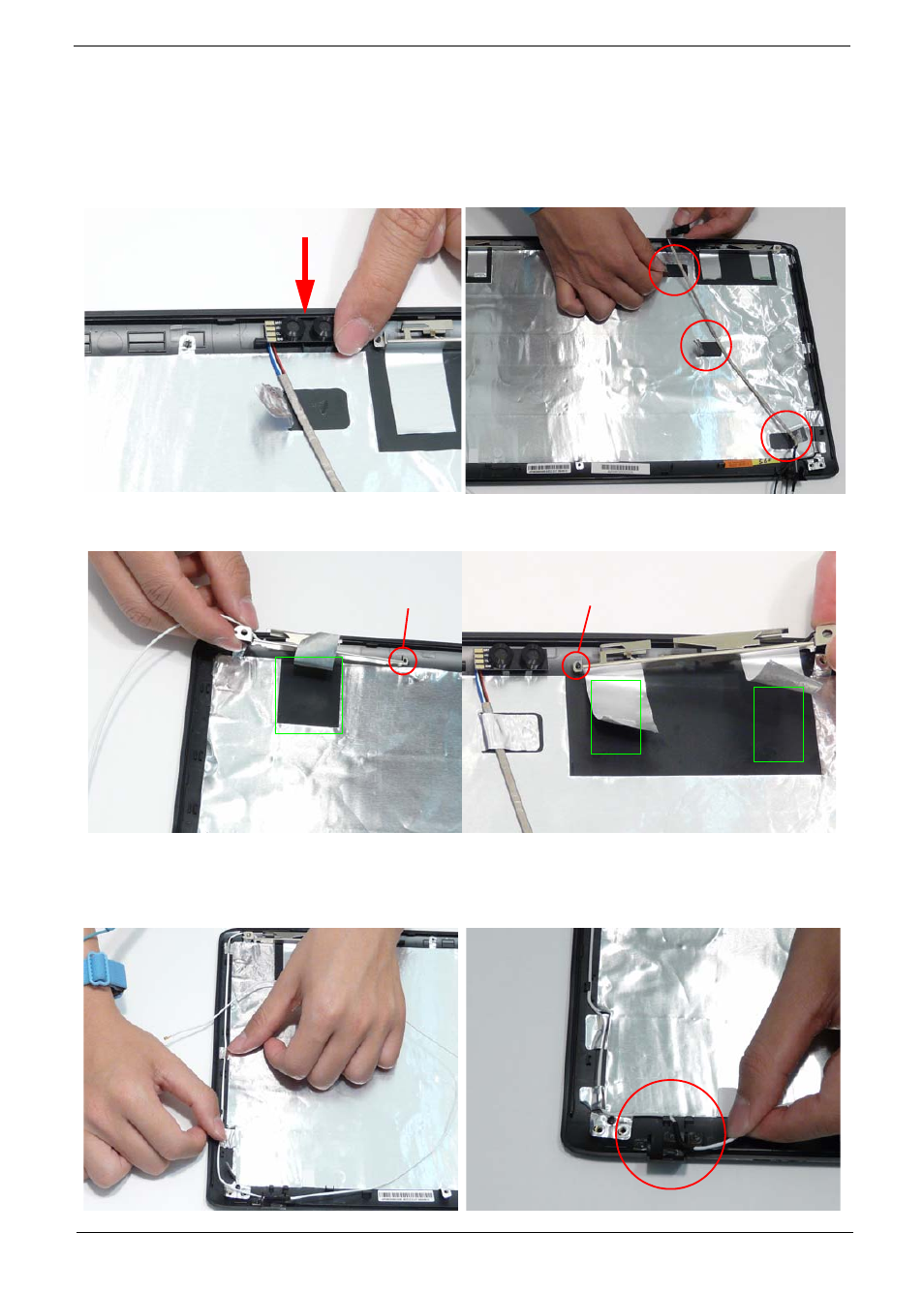

LCD Module Reassembly Procedure
Replacing the MIC and Antennas
1. Place the Microphone Module in the LCD Module
as shown.
2. Run the cable as shown and secure it using the
adhesive tabs.
3. Replace the left and right antennas as shown. Ensure that the locating pin on each antenna is correctly
seated. Press down on the adhesive pads (green callout) to secure the antennas in place.
4. Replace the left antenna cable (white) as shown.
Ensure that the cable is inserted along the cable
channel and secured under each adhesive tab
strip.
5. Ensure the antenna cable passes through the
hinge well as shown to avoid trapping.
Locating Pin
Locating Pin
