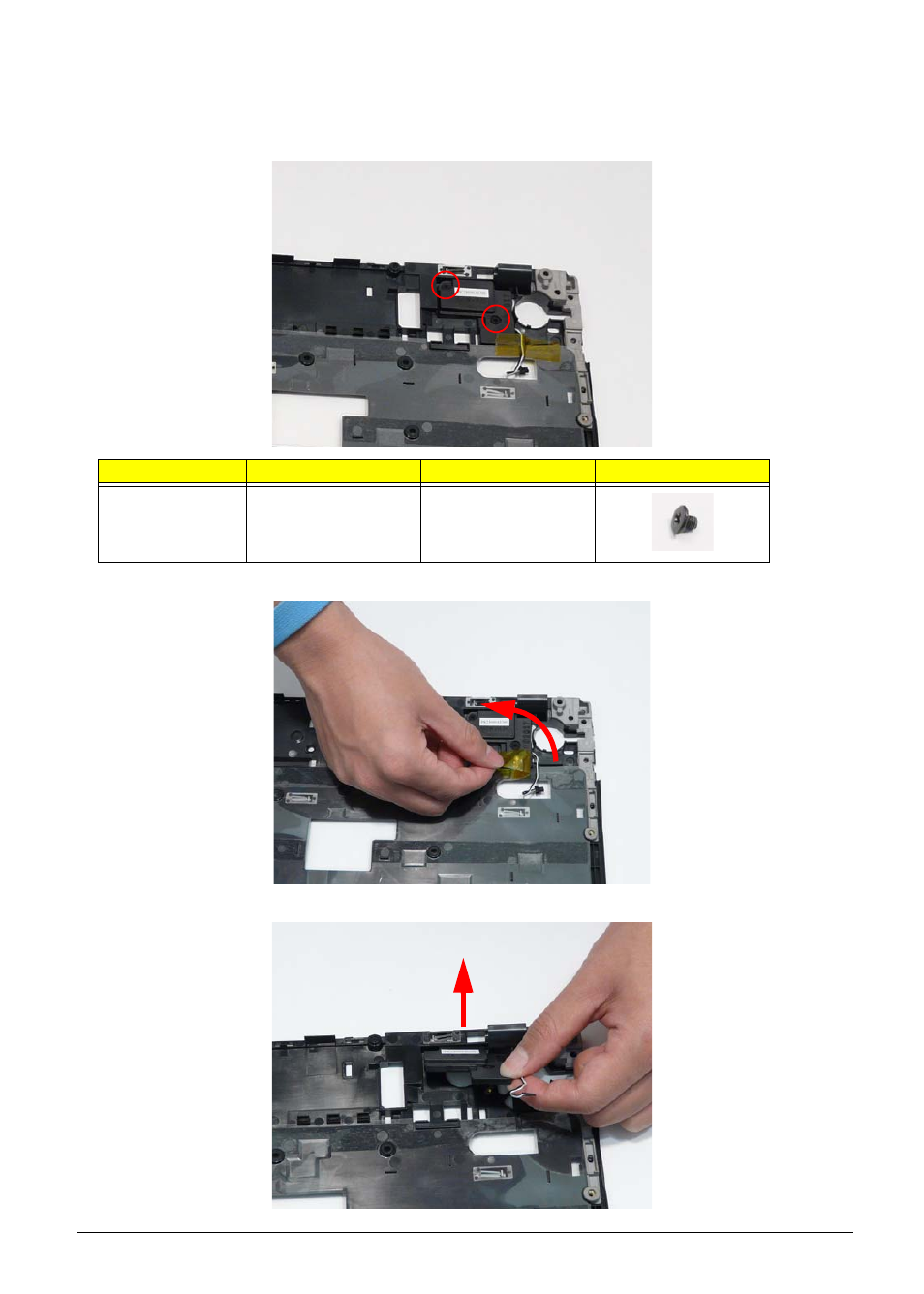

Removing the Left Speaker Module
1. See “Removing the Upper Cover” on page 66.
2. Remove the two securing screws from the module.
3. Remove the adhesive tape as shown.
4. Lift the Left Speaker Module upward to remove it from the chassis.
Step
Size
Quantity
Screw Type
Left Speaker
Module
M2.5*3
2
