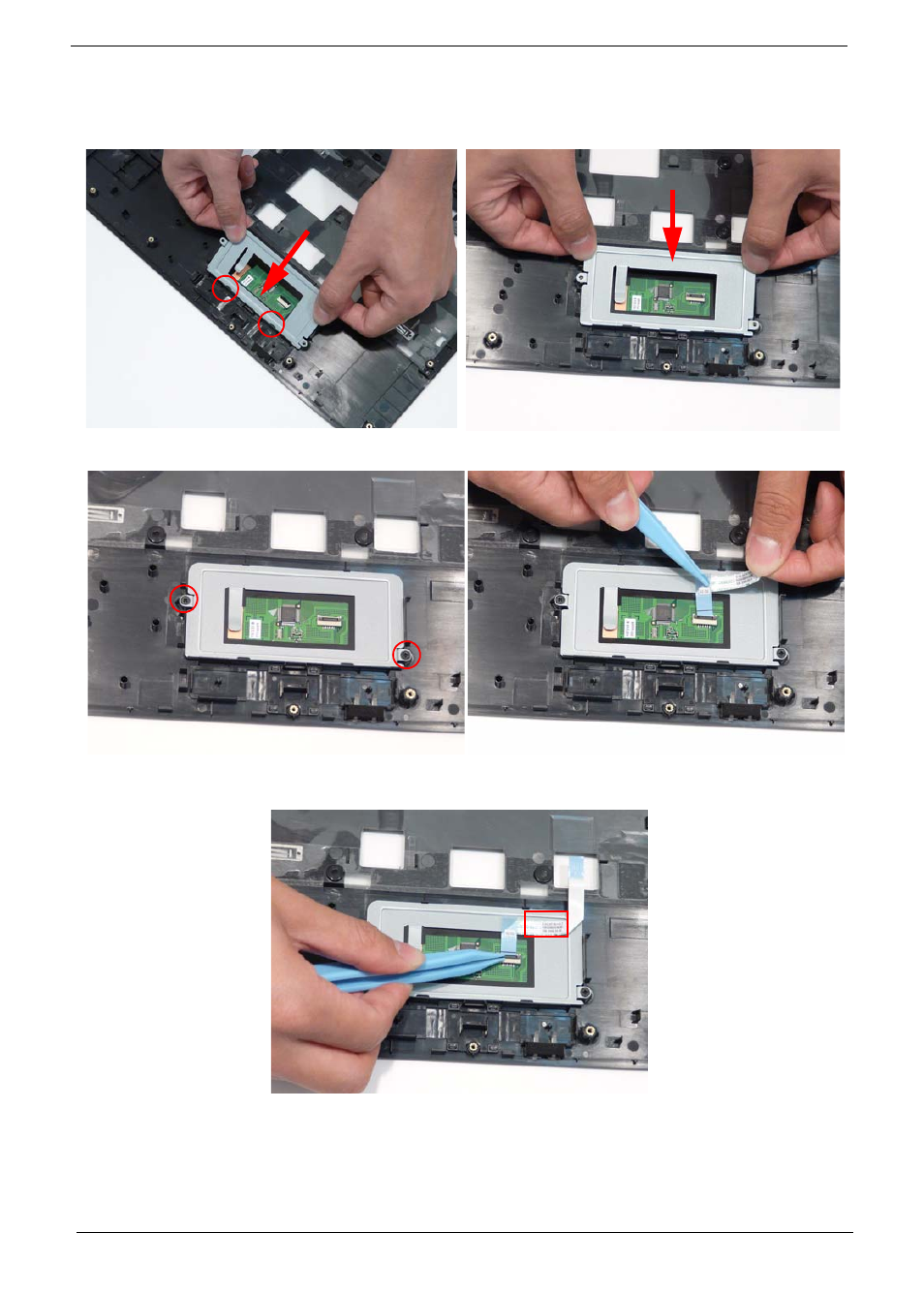

Replacing the TouchPad Bracket
1. Replace the TouchPad bracket bottom edge first to
engage the securing clips.
2. Rotate the bracket down on to the upper case.
3. Replace the two securing screws.
4. Insert the TouchPad FFC into the connector.
5. Close the locking latch on the connector and press down as indicated (red callout) to engage the adhesive
on the FFC.
