146 Chapter 6

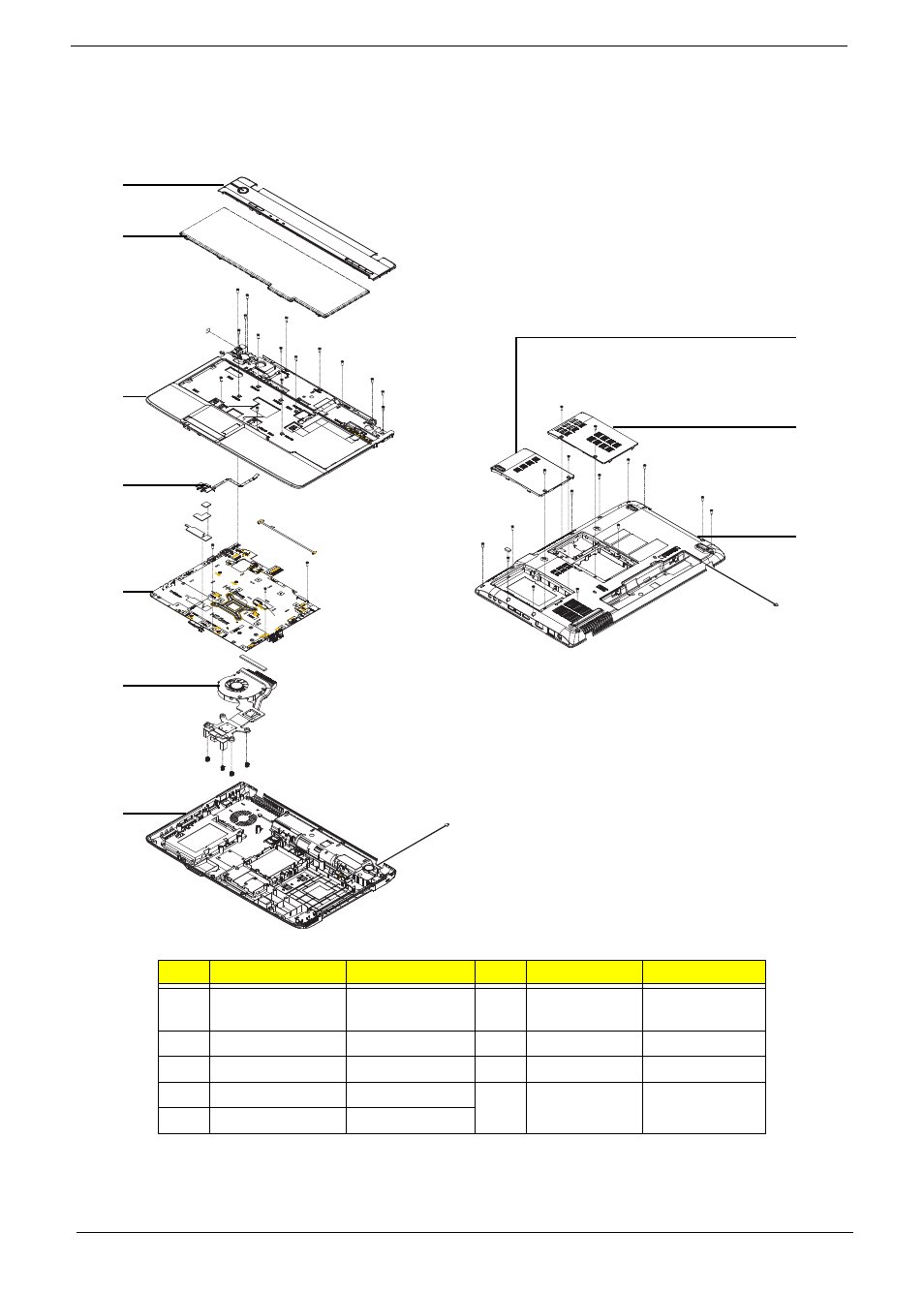

Aspire 5737Z Series Exploded Diagrams
Main Assembly
No. Description Acer P/N No. Description Acer P/N
1 Strip Cover 60.AZ802.001 6 Thermal
Module 60.AZ802.006
2 Keyboard KB.I1700.004 7 Lower Case 60.AZ802.003
3 Upper Case 60.AZ802.002 8 HDD Cover 42.AZ802.001
4 F/P Reader 55.AZA02.001 9 Memory
Cover 42.AZ802.002
5 Mainboard MB.AZ702.001
1
2
3
4
5
6
7
8
9
7
