Removing the Upper Cover
1. See “Removing the LCD Module” on page 61.

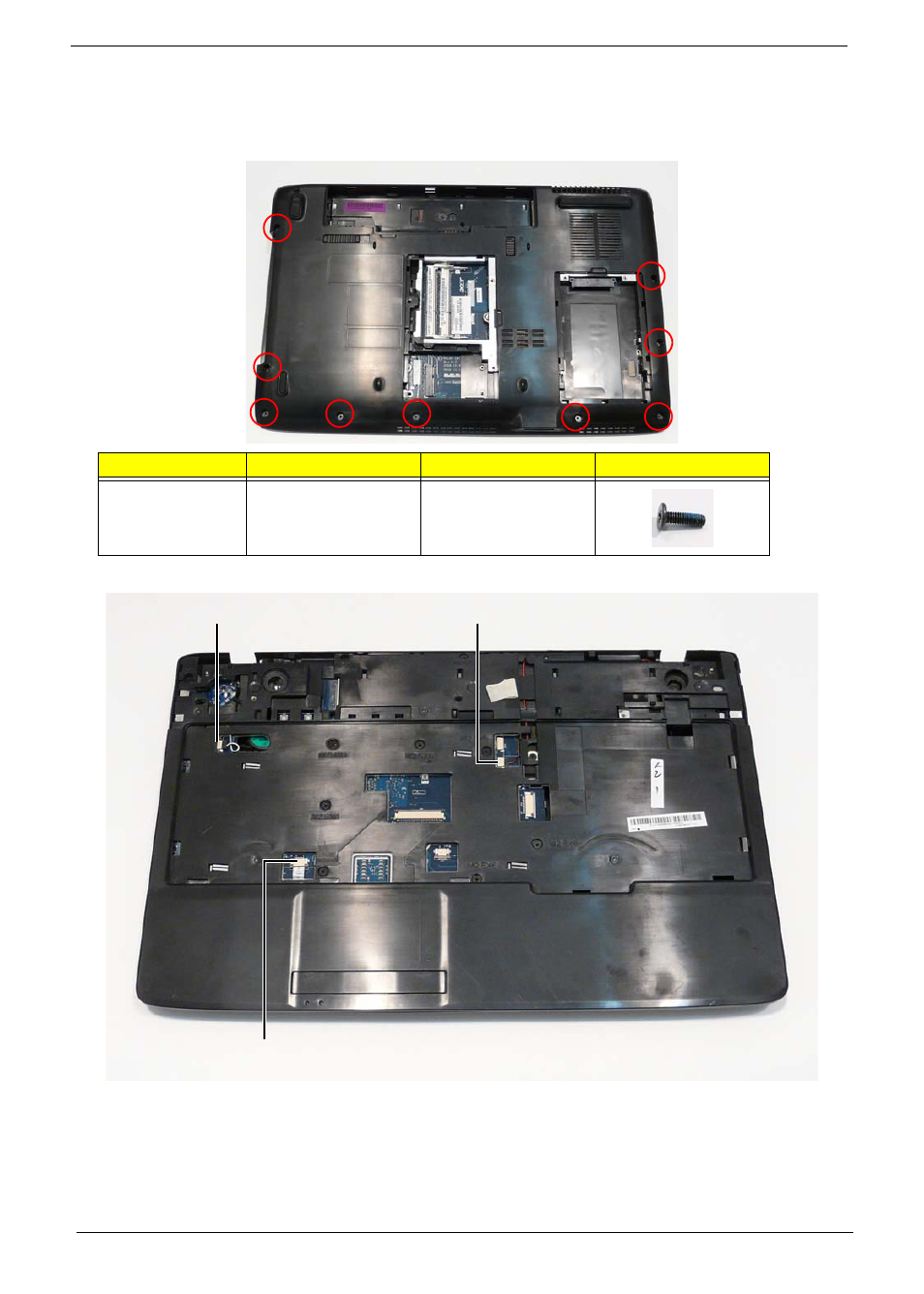

2. Turn the computer over. Remove the nine screws on the bottom panel.
3. Turn the computer over. Disconnect the following three cables from the Mainboard.
Step
Size
Quantity
Screw Type
Upper Cover
M2.5*8
9
A
B
C
