Removing the lcd panel – Acer 5737Z User Manual
Page 96
86
Chapter 3
Removing the LCD Panel

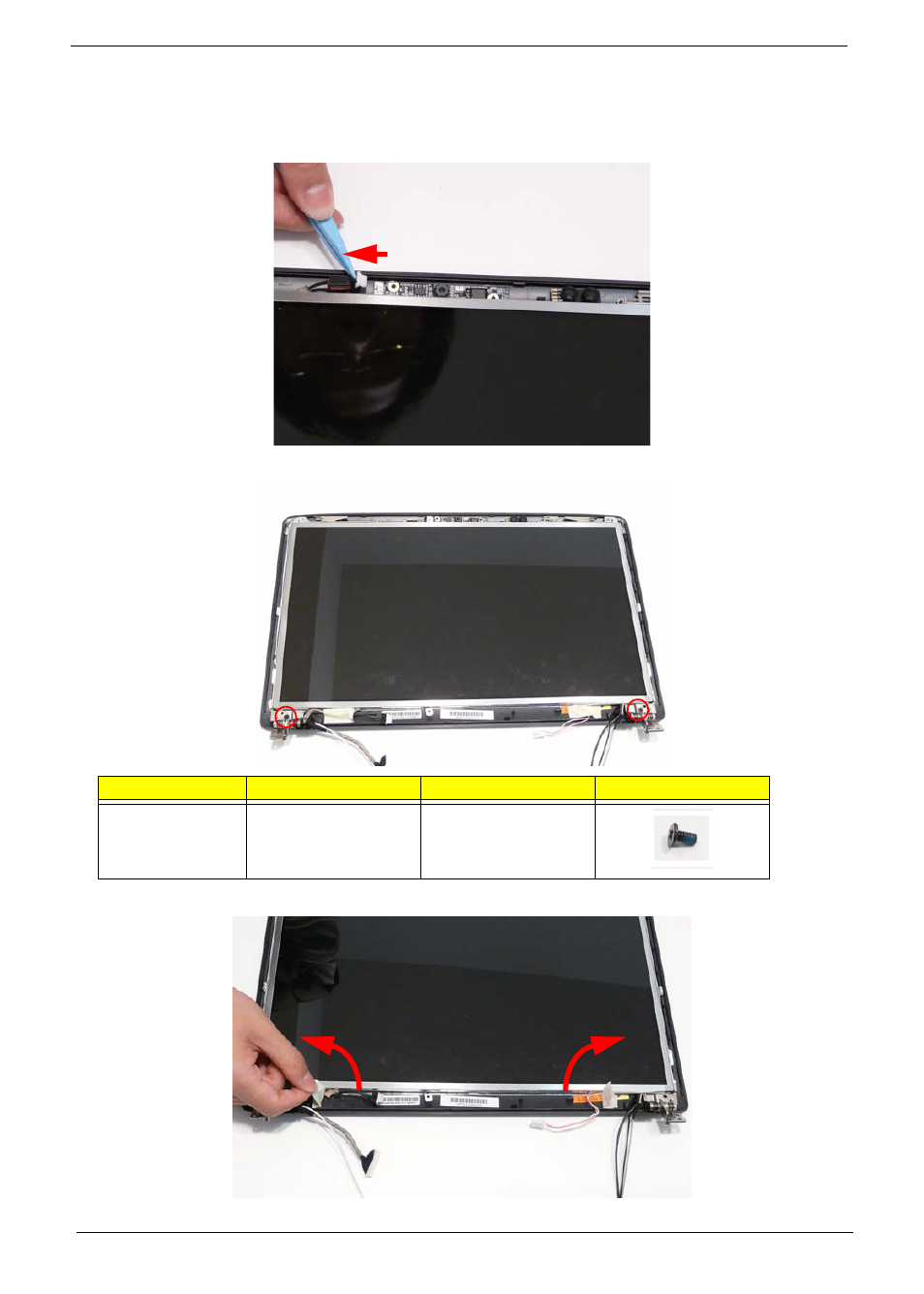

1. See “Removing the Inverter Board” on page 83.
2. Disconnect the camera cable.
3. Remove the two securing screws from the LCD Panel.
4. Remove the adhesive tapes securing the Inverter cables to the module.
Step
Size
Quantity
Screw Type
LCD Panel
M2.5*6
2
