Removing the function board – Acer 5737Z User Manual
Page 69
Chapter 3
59

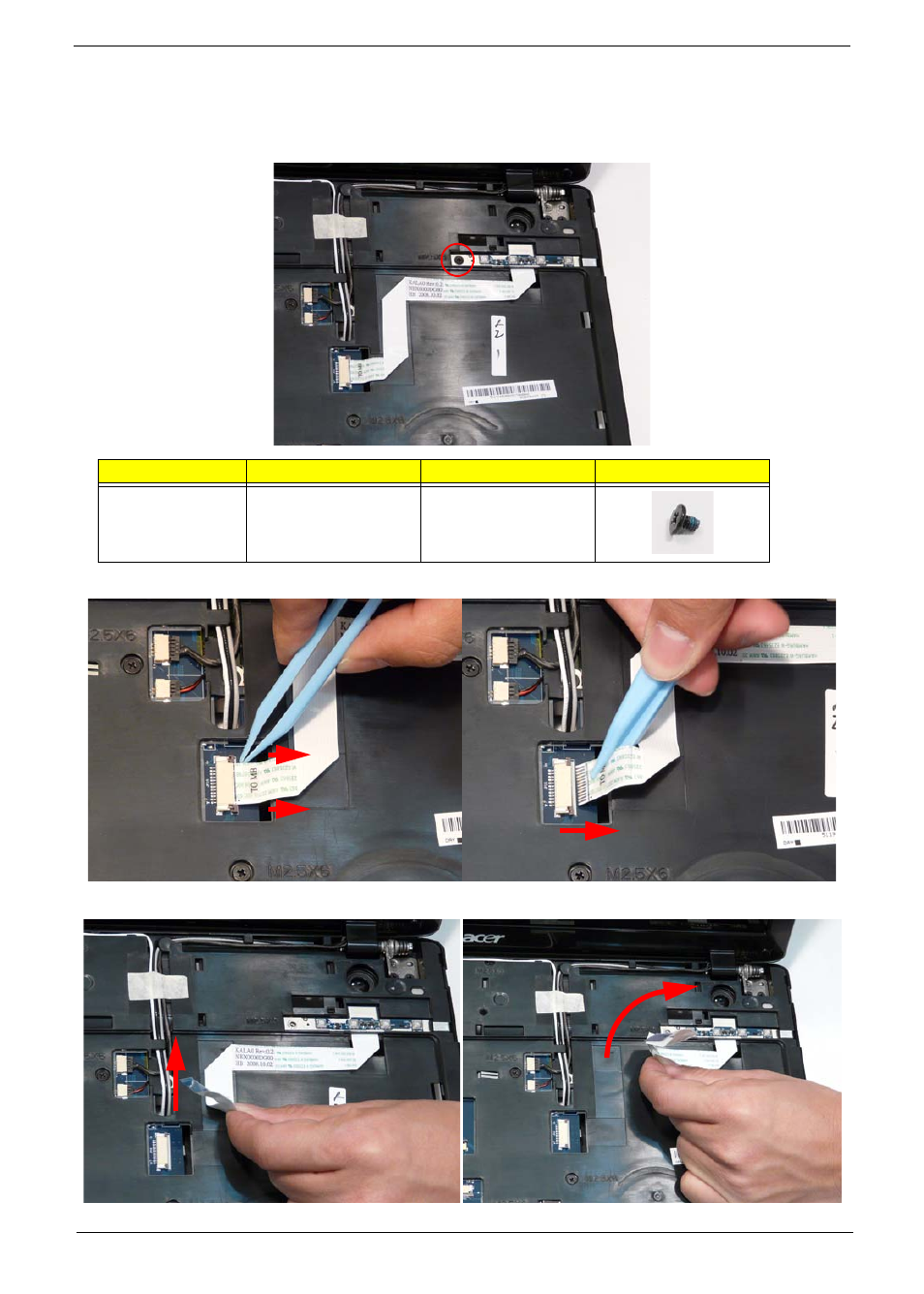

Removing the Function Board
1. See “Removing the Keyboard” on page 58.
2. Remove the single securing screw from the Function Board.
3. Open the cable retainer and disconnect the FFC cable from the mainboard.
4. Lift the FFC cable away from the chassis to disengage the adhesive strips.
Step
Size
Quantity
Screw Type
Function Board
M2.5*3
1
