Replacing the function board – Acer 5737Z User Manual
Page 120
110
Chapter 3
Replacing the Function Board
IMPORTANT:The Function Board must be inserted right
side first, paying particular attention to the locating pin
shown.

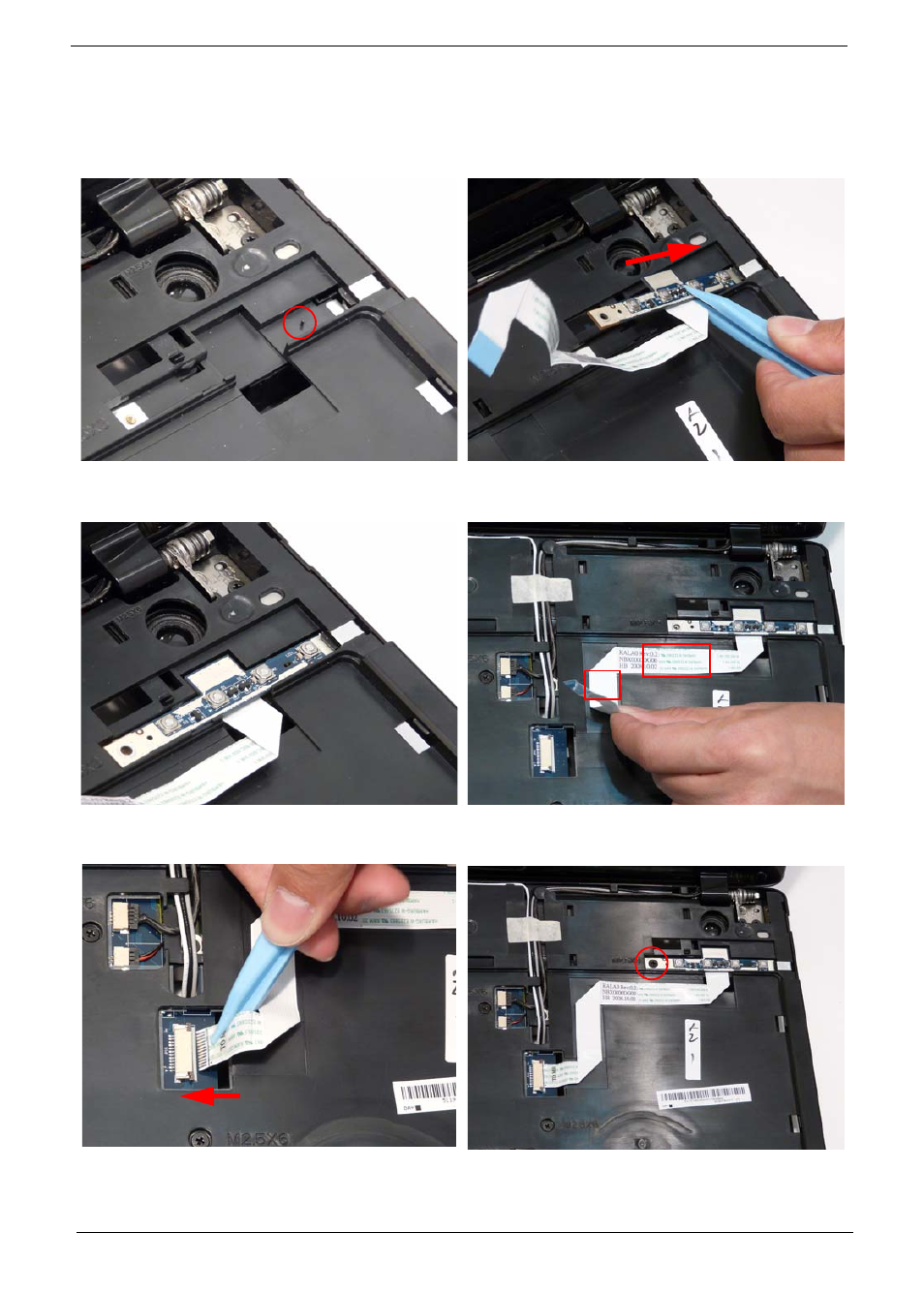

1. Insert the Function Board right side first as shown.
2. Lower the board in to the chassis as shown. Ensure
that the locating pin is correctly inserted.
3. Press down on the FFC as indicated to secure the
cable to the chassis.
4. Connect the FFC to the Mainboard and close the
locking latch.
5. Replace the single securing screw.
