Removing the CPU
1. See “Removing the Thermal Module” on page 78.

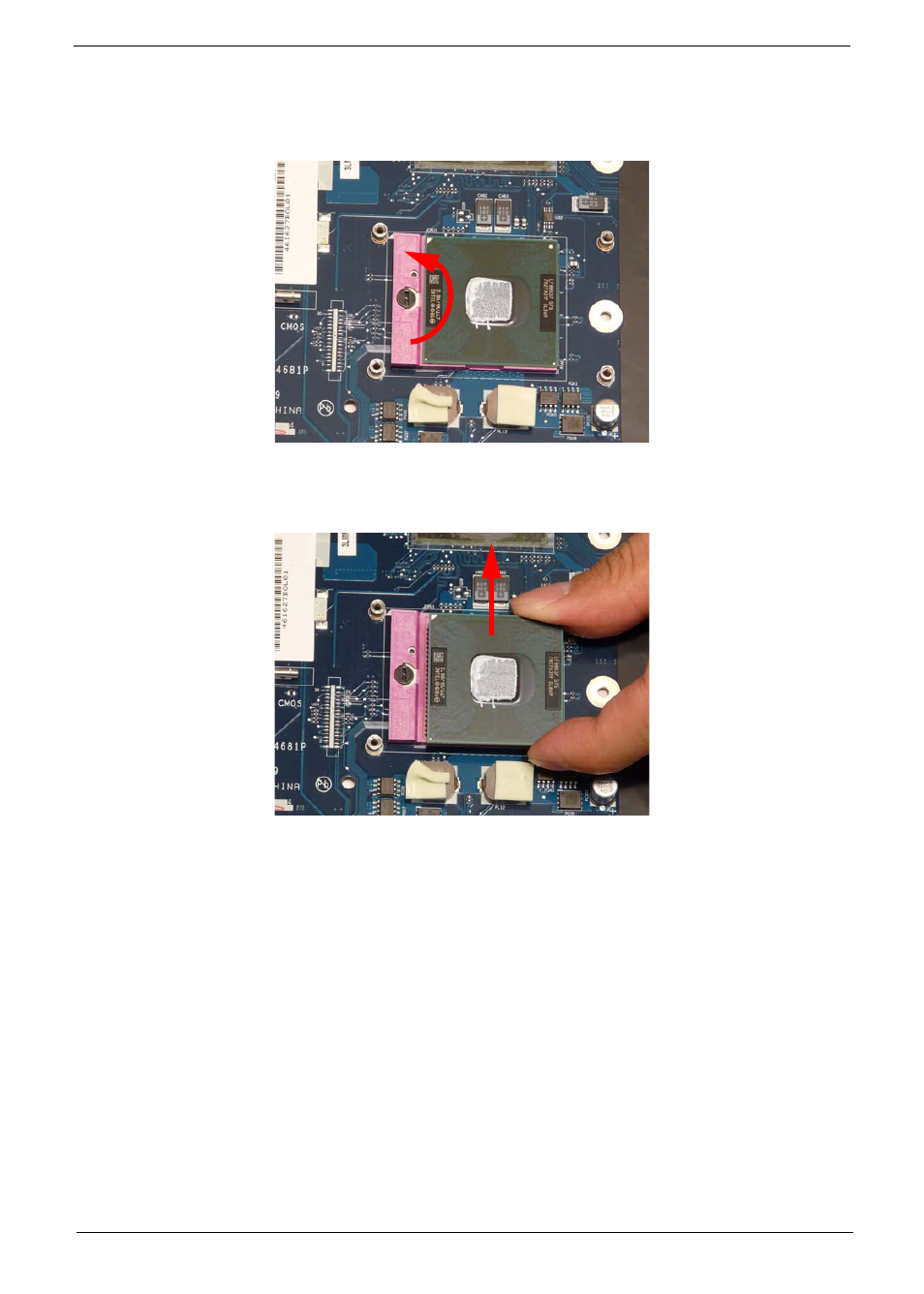

2. Turn the securing screw 180° to release the CPU from the socket.
3. Remove the CPU from the socket as shown.
IMPORTANT:The pins on the underside of the CPU are very delicate. If they are damaged, the CPU may
malfunction. Place the CPU on a clean, dry surface when it is not installed.
