Page 110
100
Chapter 3

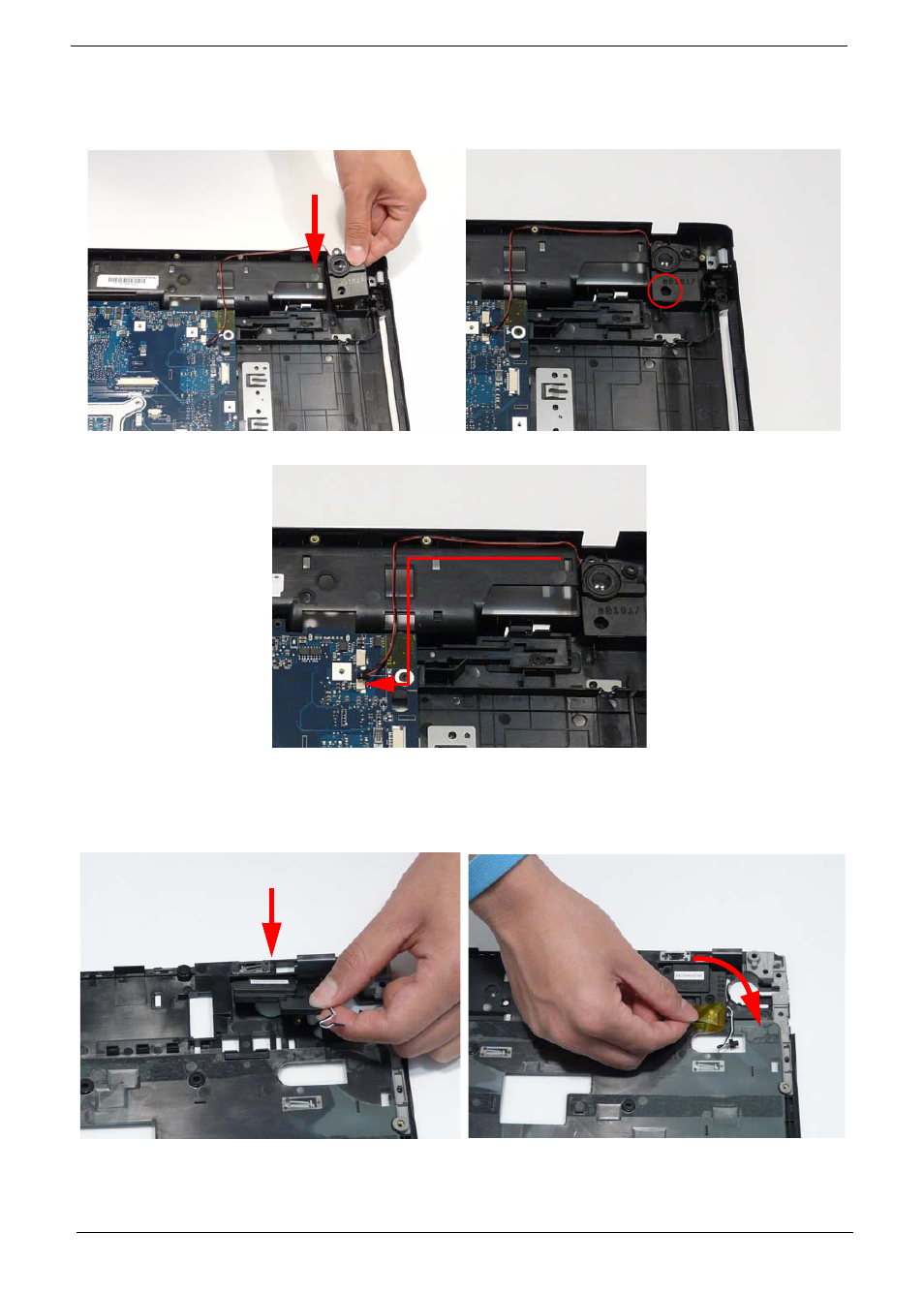

Replacing the Right Speaker Module
Replacing the Left Speaker Module
1. Place the Right Speaker Module in the chassis as
shown.
2. Replace the single securing screw.
3. Run the cable as shown along the chassis and on to the Mainboard.
1. Place the Left Speaker Module in the Upper Cover
as shown.
2. Replace the adhesive strip to hold the cable in
place.
