Replacing the DIMM Modules
Replacing the Hard Disk Drive Module

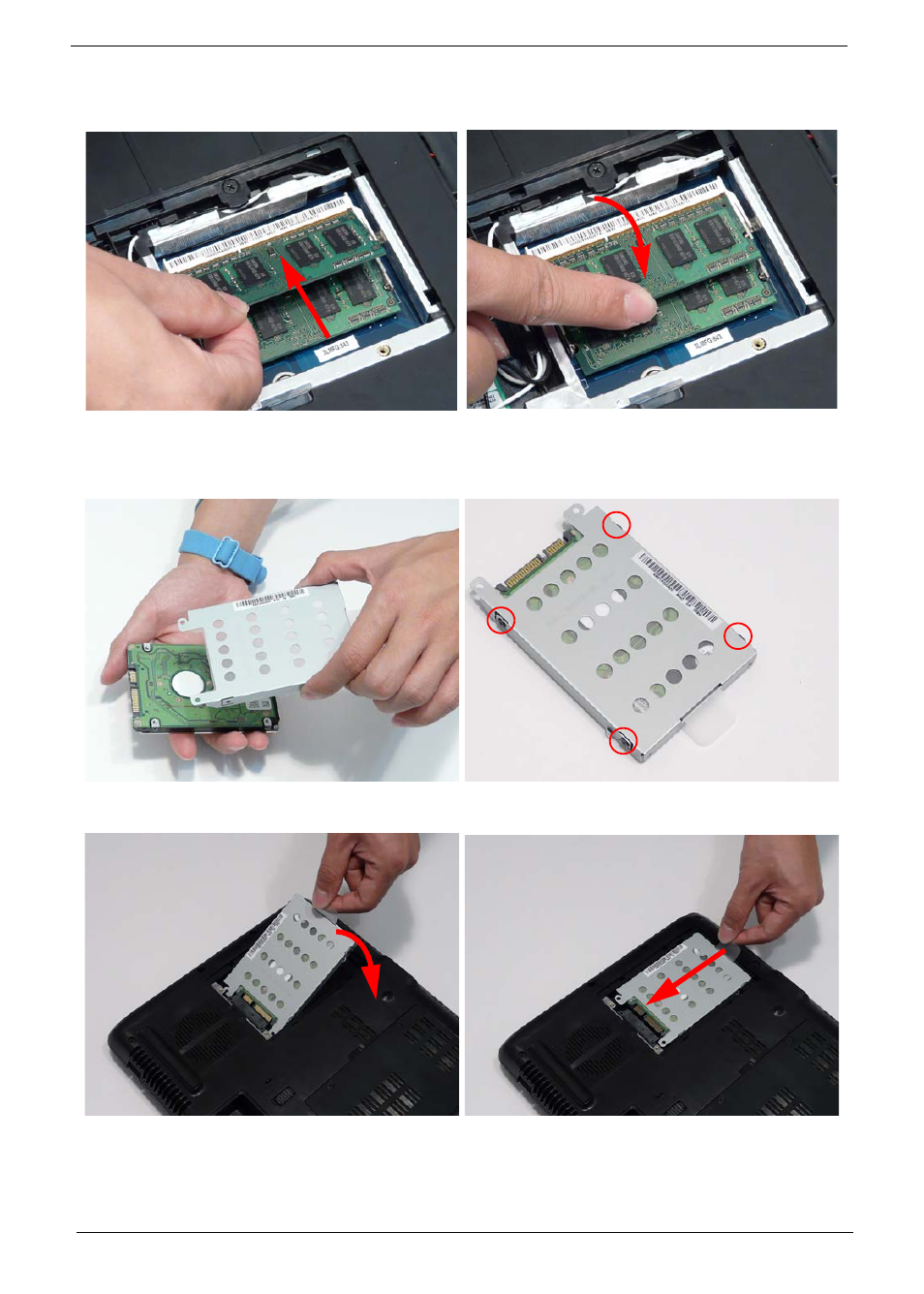

1. Insert the DIMM Module in place.
2. Press down to lock the DIMM module in place.
1. Place the HDD in the HDD carrier.
2. Replace the four screws to secure the carrier.
3. Insert the HDD, interface side first, and lower it into
place.
4. Slide the HDD in the direction of the arrow to
connect the interface.
