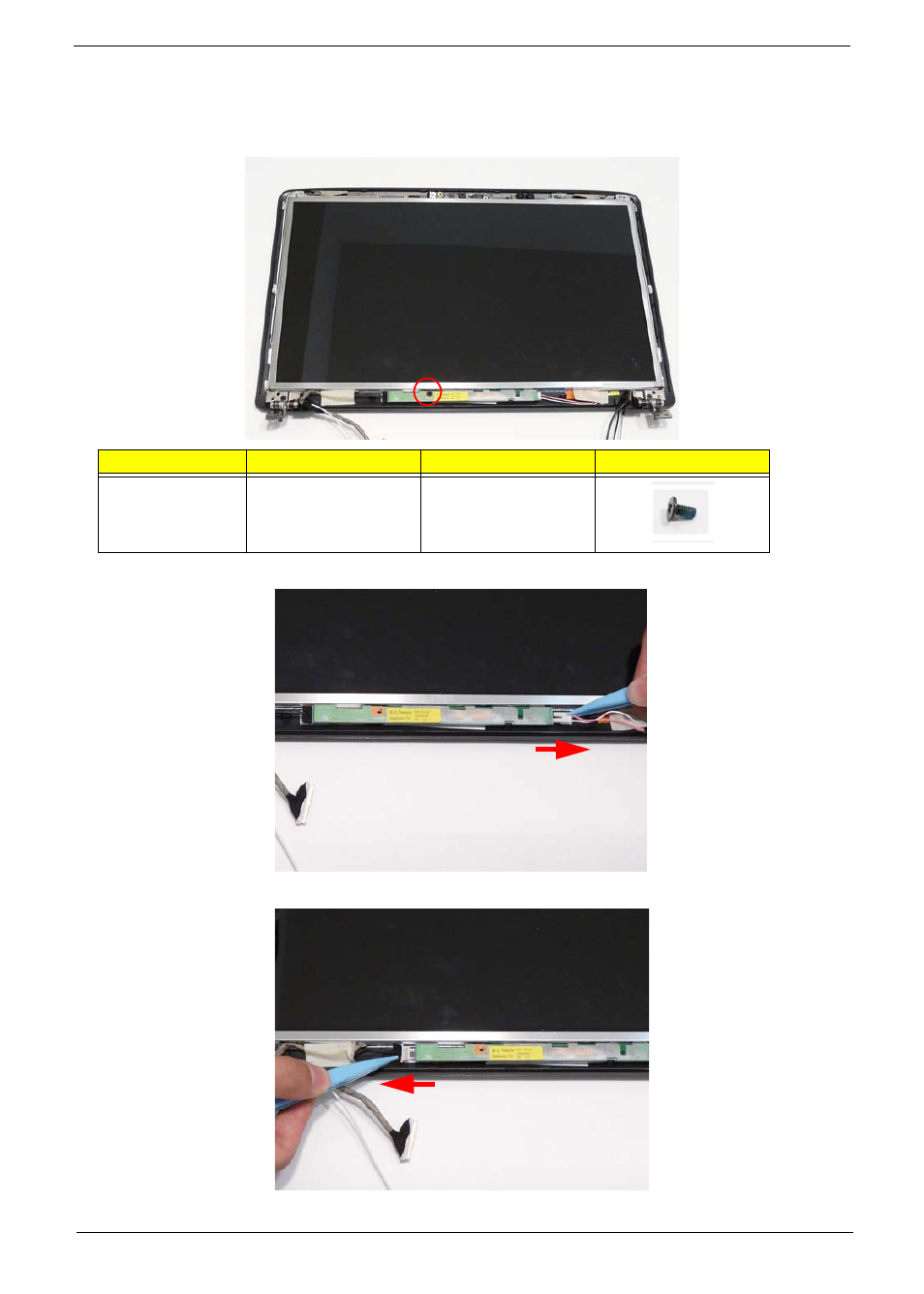

Removing the Inverter Board
1. See “Removing the LCD Bezel” on page 82.
2. Remove the single securing screw from the Inverter Board.
3. Disconnect the right Inverter Board cable as shown.
4. Disconnect the left Inverter Board cable as shown.
Step
Size
Quantity
Screw Type
Inverter Board
M2.5*6
1
