Securitron TSB-C User Manual
Page 2

P/N 500-24005
Page 2
Rev. B, 03/10

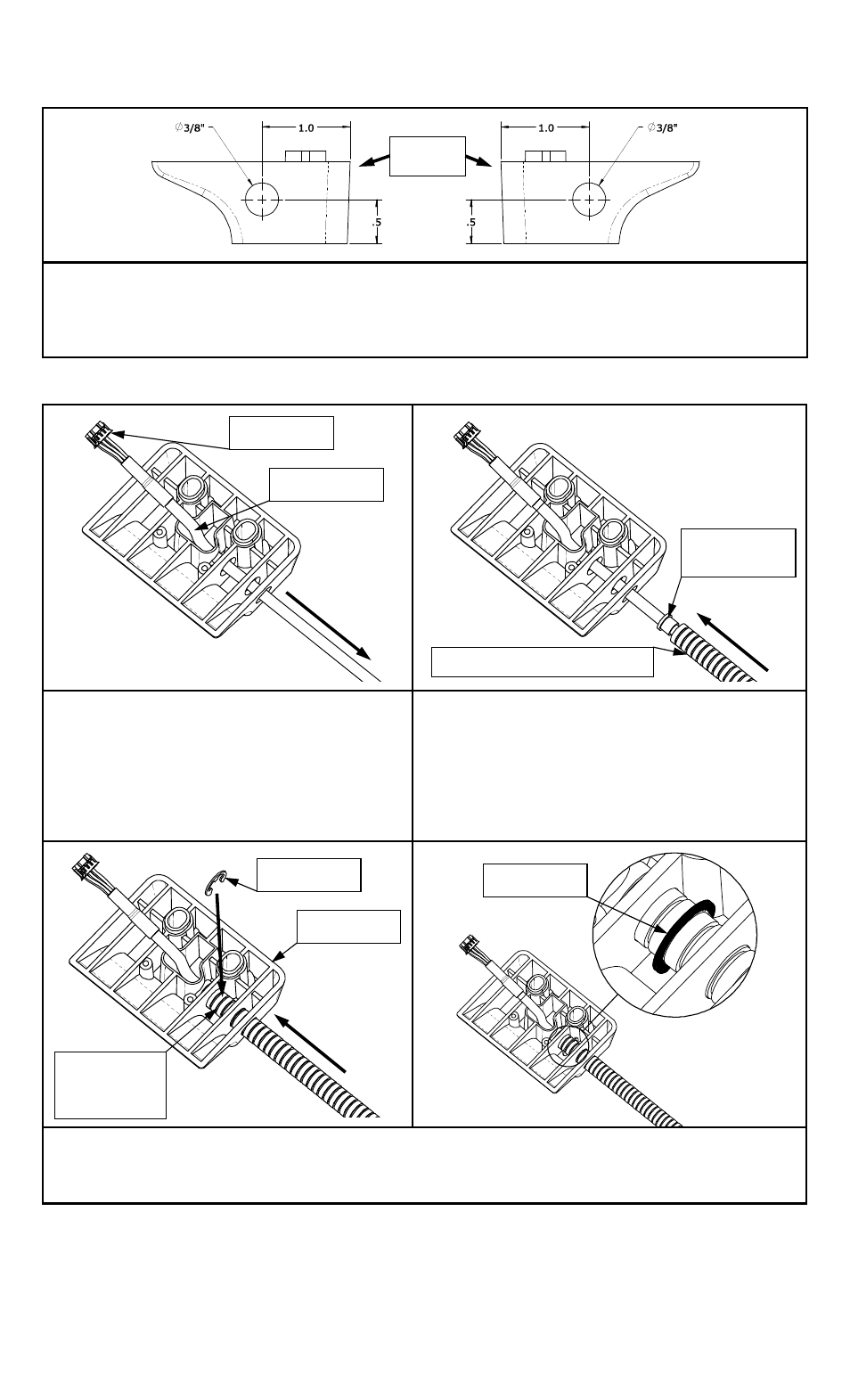

2 DRILL HOLE IN BASE RISER
1. Determine which side of the base riser to feed the flexible door cord shield into.
2. Scribe and/or center punch the base riser at location shown.
3. Using a drill with a 1/8” diameter bit, create a “pilot” hole at the location shown. Drill
through the internal ribs and into the wire feed-thru channel in the center of the base riser.
4. Using a 3/8” diameter drill bit, follow the pilot hole to open up the holes in the part to 3/8”.
3 INSTALL POWER CORD AND FLEXIBLE DOOR CORD SHIELD
1. Unroll the DSB power cord and feed the
non-connector end down through the wire
feed-thru channel, the drilled holes and
out the side of the base riser as shown.
2. Leave about a 6-inch loop from the hole in
the side of the base riser to the end of the
connector (to allow for connection to the
PC board later).
3. Insert the door cord insert into the end of the
flexible door cord shield.
4. Slide the flexible door cord shield (door cord
insert first) over the power cord from the
non-connector end and up to the hole in the
side of the base riser as shown.
5. Insert the door cord shield through the holes drilled in the part and up to the wire feed-thru
channel in the base riser.
6. Using needle-nose pliers, install the E-clip into a groove on the door cord shield between the
internal part ribs as shown.
OR
Groove in
Door Cord
Shield
Base Riser
E-clip
Power Cord
Connector
Flexible Door Cord Shield
E-clip
Door Cord
Insert
